S5331R Soldering Robot

S5331R Soldering Robot

$0.00
$0.00
EXW China
SAVE $0 Đã bán hết

● Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

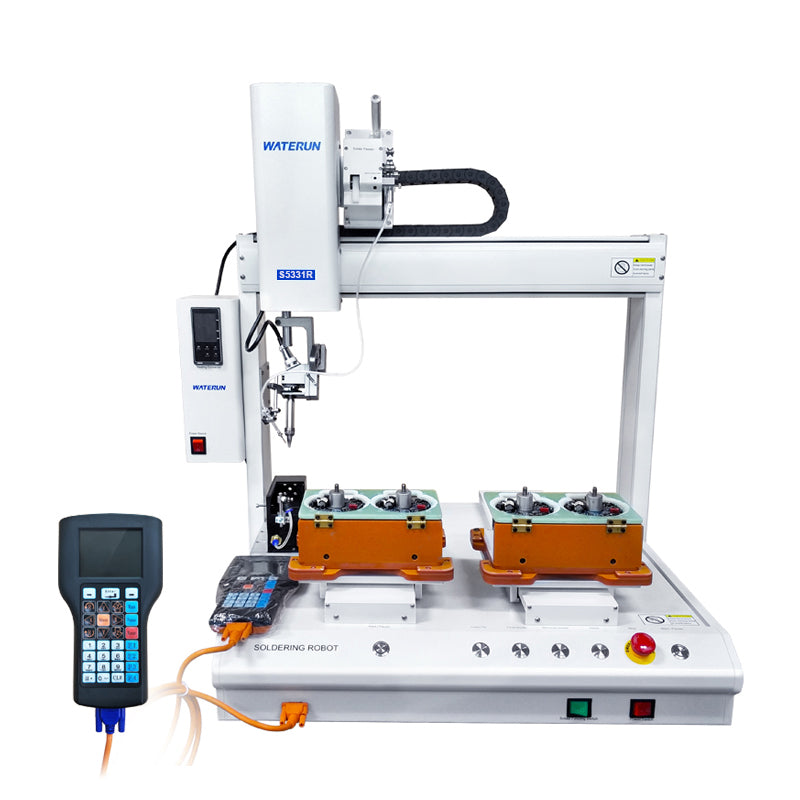

Starobot Soldering Robot:

Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.

Specifications:
Model
S5331R
Solder Joint Range
X500* Y1/300*Y2/300*Z100mm（XxYxYxZ）
Solder Time
1.0~1.5s/point
Repeat Positioning Accuracy
±0.002mm
Solder Wire Diameter
0.5, 0.6, 0.8, 1.0, 1.2 (mm)
Air source
0.4-0.6 MPA
Axis
           5
Program Capacity
999 files, each file can save up to 999 points
External Dimensions(WxDxH)
820mm x 600mm x 800mm
Weight
about 65kgs

Features:

1. Applicable for different products, soldering temperature can be set  freely.

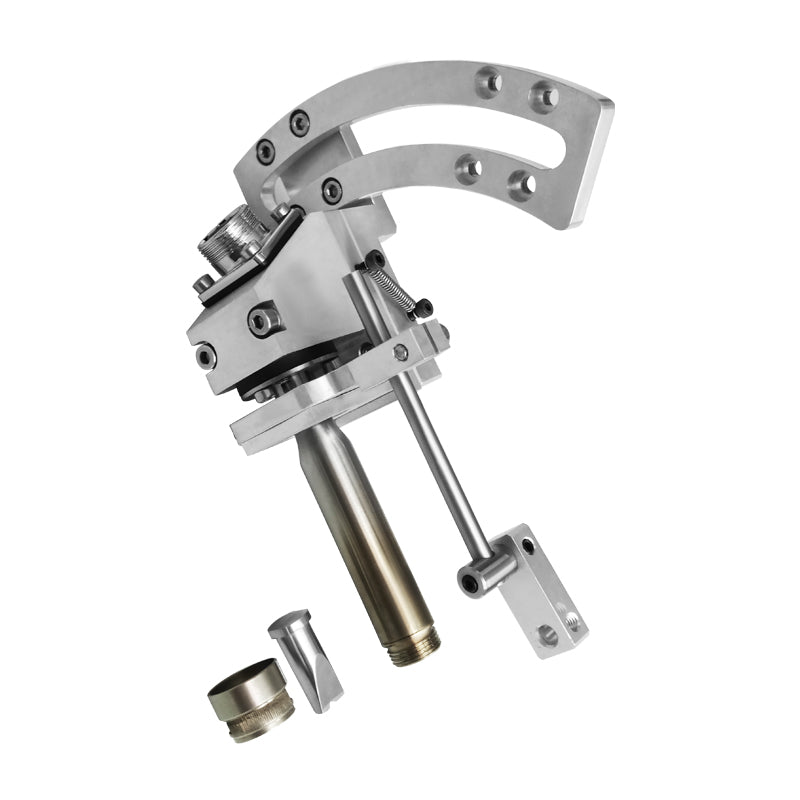

2. The solddering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.

3.  Numerically controlled temperature (static air condition: ±1℃)

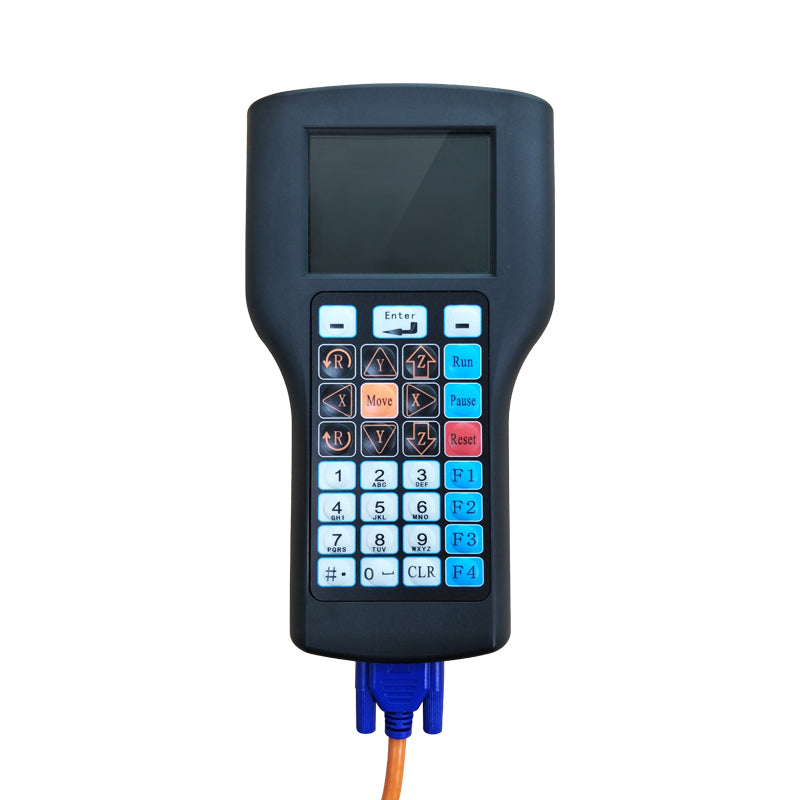

4. With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.

5. In the soldering process, the solder tip has rapid heat recovery and a long life span.

Xem toàn bộ chi tiết

FAQ

What makes the S5331R soldering robot stand out from other models on the market?

The S5331R soldering robot offers a unique combination of features that set it apart from competitors. These include:

Advanced vision system: The integrated high-resolution camera and sophisticated image processing algorithms enable precise component recognition and placement, even for the smallest and most complex components.
Flexible programming: Our intuitive software allows for easy creation and modification of soldering programs, accommodating a wide range of product designs and production changes.
Modular design: The modular construction of the S5331R enables customization to meet specific application requirements, such as different soldering tip configurations and end-effectors.
Enhanced safety features: Safety interlocks and emergency stop functions ensure a safe working environment for operators.

The S5331R soldering robot significantly enhances the quality of your soldering processes by: Consistent solder joints: Precise temperature control and optimized soldering profiles result in strong, reliable solder joints. Reduced defects: Advanced vision inspection capabilities minimize the occurrence of defects like cold solder joints, bridging, and misalignment. Improved first-pass yield: By eliminating human error and variability, the S5331R helps to achieve higher first-pass yields and reduce rework.

How can the S5331R improve the quality of my soldering processes?

What industries and applications is the S5331R soldering robot best suited for?

The S5331R is ideal for industries that require high precision, flexibility, and reliability in their soldering processes. Some key applications include:

Electronics manufacturing: Assembly of complex PCBs, microelectronics, and wearable devices.
Medical device manufacturing: Soldering of delicate components for implantable devices and diagnostic equipment.
Automotive electronics: Production of automotive sensors, control modules, and battery packs.
Aerospace: Assembly of electronic components for satellites, aircraft, and missiles.
