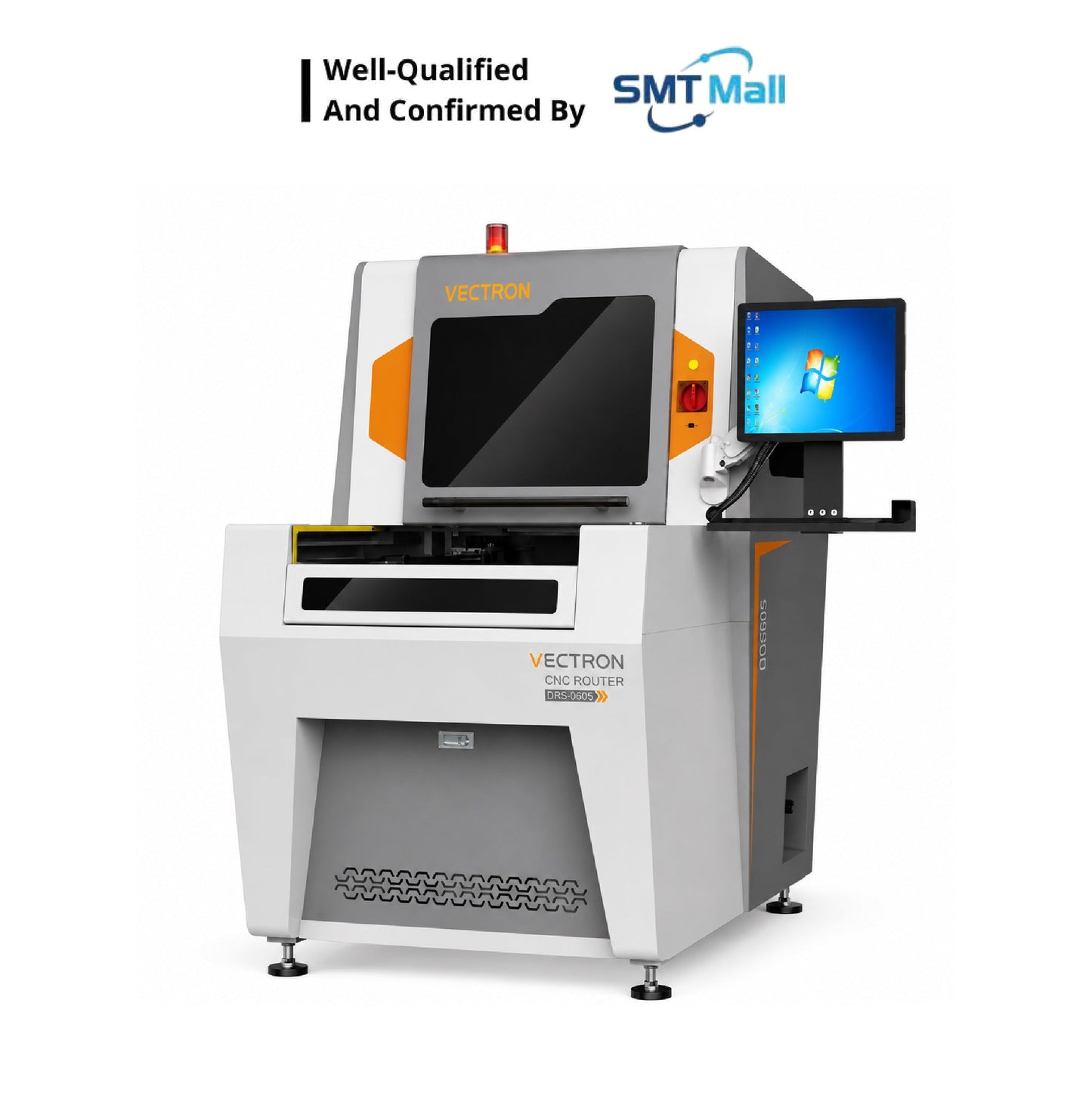

R-500D Dual Table Router Machine

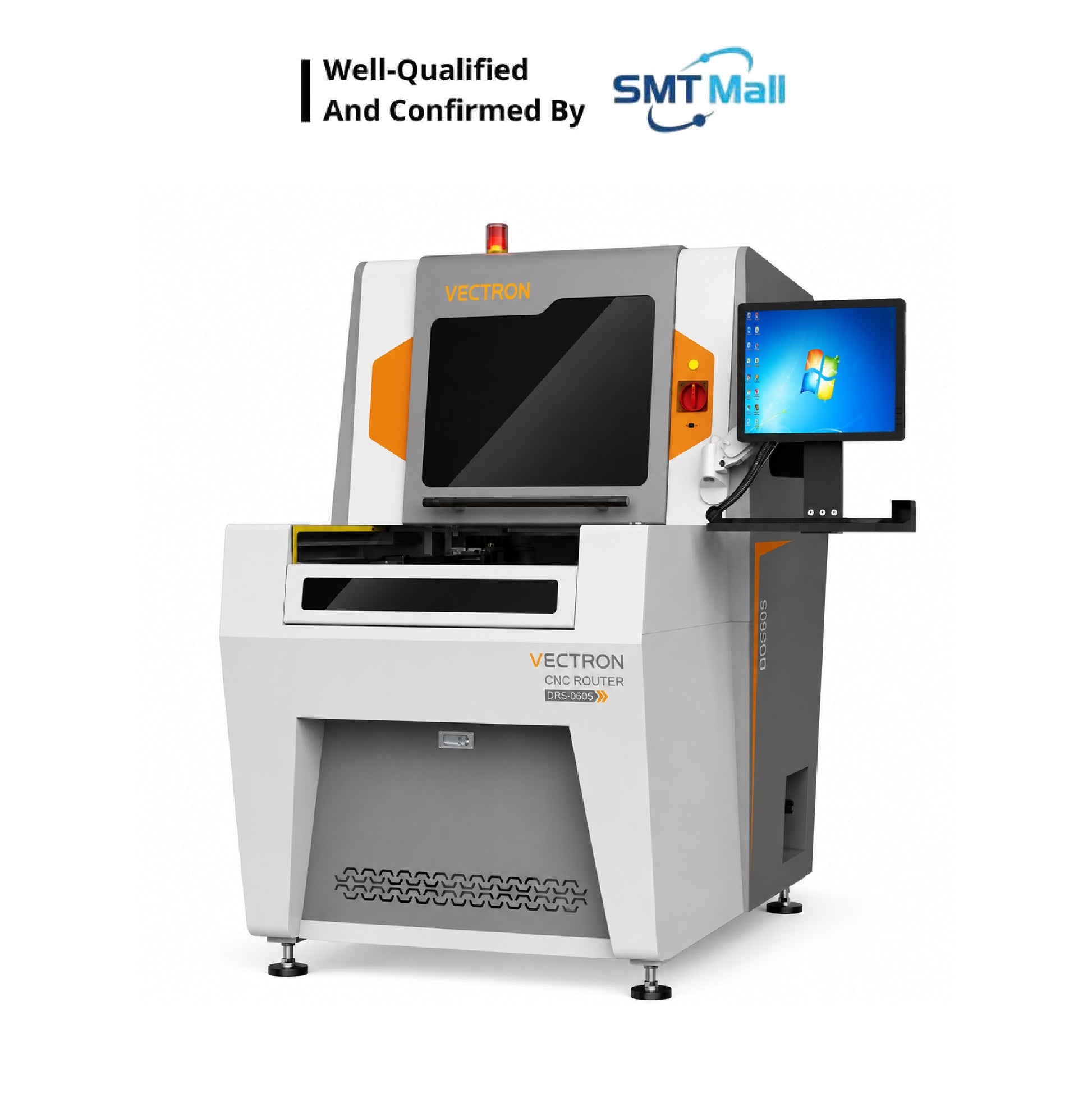

R-500D Dual Table Router Machine

● Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

Key Features

  • Dual Table Design: Two independent work tables allow simultaneous load/unload and routing — near-zero machine idle time.
  • Single Spindle, Dual Station: One spindle serves both tables alternately, maximizing equipment utilization and cutting throughput.
  • Three-Axis Servo Control: X/Y/Z three-axis servo motor system for precise, repeatable routing with ±0.03mm cutting accuracy.
  • High-Speed 60,000 RPM Spindle: 60,000 RPM self-cooling spindle for clean, burr-free cuts across FR4, aluminum, flex, and rigid-flex materials.
  • Adjustable Routing Speed 1~100 mm/sec: Routing speed adjustable from 1 to 100 mm/sec to match different board materials and thicknesses.
  • High-Precision Linear Guide System: High-precision module components and linear rails ensure long-term dimensional stability and minimal wear.
  • Integrated Vacuum Dust Collection: Built-in vacuum dust collection with bottom suction captures cutting debris directly at the source.
  • CCD Auto-Programming System: CCD-guided keyboard control with automatic programming navigation — quick setup for any panel layout.
  • Wide Milling Cutter Compatibility: Supports left-hand spiral milling cutters from ∅0.8mm to ∅3.0mm for diverse routing path requirements.
  • Tool Life Management: Software-controlled tool life monitoring alerts operators before cutter wear degrades cut quality.
  • Dual-Side Safety Light Curtains: Safety light curtain protection on both operator-access sides ensures safe dual-table operation.
  • Error Alarm & Diagnostics: Real-time error alarm system provides immediate fault notification for rapid troubleshooting.

Technical Specifications

Specification Details
Model R-500D
Table Configuration Dual Table (2 independent work stations)
Machine Dimensions (H×W×L) 1350 × 1600 × 650 mm (approx.)
Power Supply AC 380V / 3.5 kW (approx.)
Machine Weight Approx. 450 kg
Work Table Size (each) 390 mm × 560 mm
Max. Routing Size (each) 310 mm × 480 mm
Drive System X/Y/Z Three-Axis Servo Motor Control
Guide System High-precision modules & linear rails
Routing Spindle Speed 60,000 rpm/min (Automatic Self-Cooling)
Routing Speed 1 ~ 100 mm/sec (adjustable)
Routing Accuracy ±0.03 mm
Repeat Accuracy ±0.01 mm
Axis Moving Speed 800 mm/s
Milling Cutter Size ∅0.8 ~ ∅3.0 mm (Left-hand spiral)
Tool Life Control Software program control
Vacuum Unit Built-in, Bottom suction, fixed port
Vacuum Power 1.5 kW
Monitor 17-inch display
Programming Mode CCD-guided keyboard control with auto-programming navigation
Safety Protection Safety light curtains (dual-side)
Error Alarm Yes

* Specifications may vary. Please contact Vectron-Tech for the latest confirmed datasheet.


Applications

The R-500D Dual Table Router Machine is designed for:

  • High-volume SMT production lines requiring continuous depaneling without line stoppages
  • Depaneling of FR4, CEM-3, aluminum-backed, flex, and rigid-flex PCB panels
  • Routing complex PCB outlines and irregular board geometries that V-cut cannot handle
  • Automotive electronics — ECU boards, ADAS sensor modules, LED lighting assemblies
  • Medical device PCBs requiring burr-free edges and zero mechanical stress on components
  • Consumer electronics and IoT device module singulation at high production rates
  • Industrial automation and power electronics board depaneling
  • High-mix production environments requiring rapid program changeover between board types

Industries Served

  • Consumer electronics and smart device mass production
  • Automotive electronics (ECUs, ADAS modules, EV battery management, LED lighting)
  • Medical devices and healthcare electronics
  • Industrial automation and power electronics
  • Telecommunications and 5G infrastructure PCBs
  • Aerospace and defense high-reliability assemblies
  • LED lighting and display panel manufacturing

Why Choose the R-500D?

vs. Single Table Routers (R-400M)

Dual table virtually eliminates machine idle time — one table loads while the other cuts. Up to 2× effective throughput for the same floor footprint.

 vs. V-Cut Depaneling

Routes any outline shape — curves, slots, complex geometries. No restriction to straight-line cuts.
vs. Inline Router Systems

Lower equipment cost with comparable throughput for mid-to-high volume production. No conveyor integration required — flexible standalone deployment.

 vs. Manual Routing / Hand Cutting

Full CNC servo control ensures ±0.03mm accuracy and complete repeatability — no operator fatigue, no variation between shifts.
