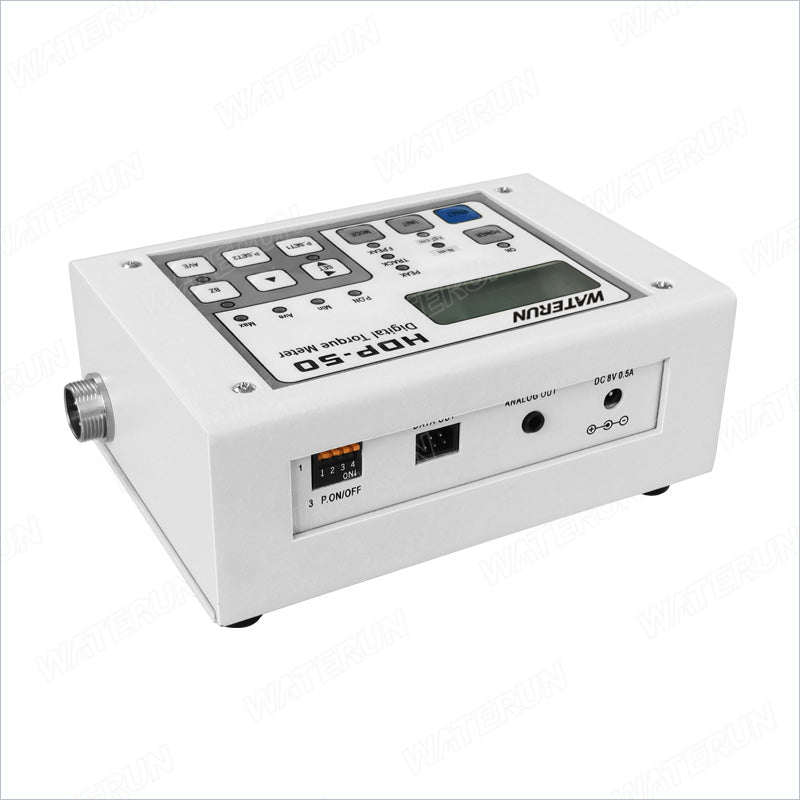

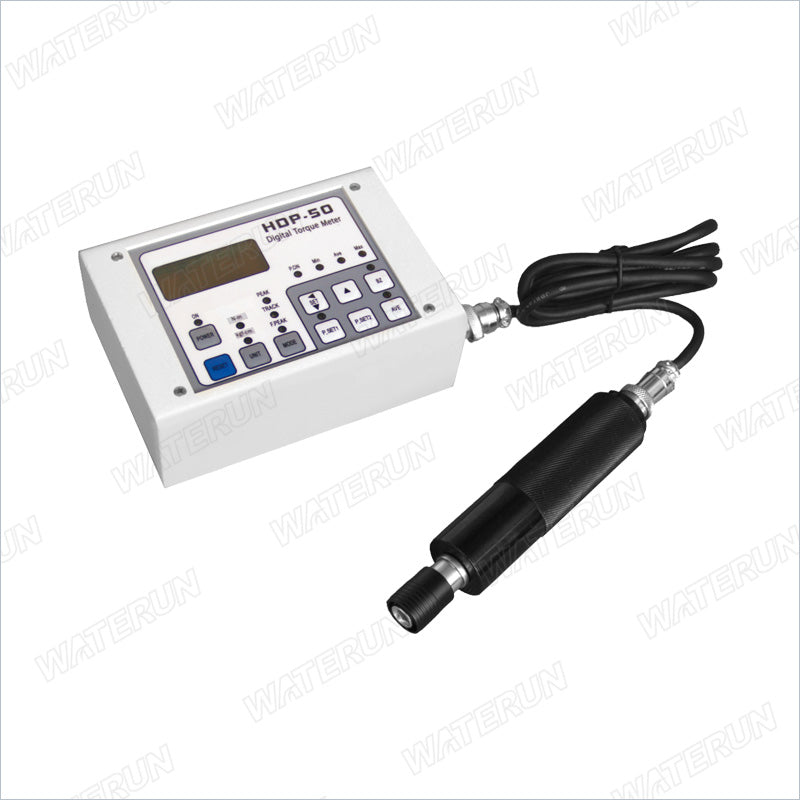

HDP Series Screw Torque Meters

HDP Series Screw Torque Meters

Giá thông thường $0.00
Giá thông thường $0.00 Giá bán
EXW China
SAVE $0 Đã bán hết

Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

Features:
1.Specially designed for management of torque for tightening screws.
2.Memory function makes saving and  managing of torque data possible.
3.The maximum torque, the minimum torque, and the average torque can be confired by Ave measurement function.
4.First peak measuring mode(F.PEAK) gives precision measurements of torque wrenches or other tools.
5.Automatically recalibrated to zero value




 Model HDP-5 HDP-50 HDP-100

Measurement

Range

Kgf.cm

0.03-5.0

0.15-50.0

0.2-100.0
N.m 0.015-0.5 0.015-5.0 0.02-10.0
Lbt.in

0.03-4.8

0.15-50.0 0.2-100.0
Accuracy within±0.5%
Detector Bit Socket H4 or 1/4 HEX,     H5 or 1/4 HEX
Dimensions (mm) Display 165 (W) x 95 (D) x 55 (H)

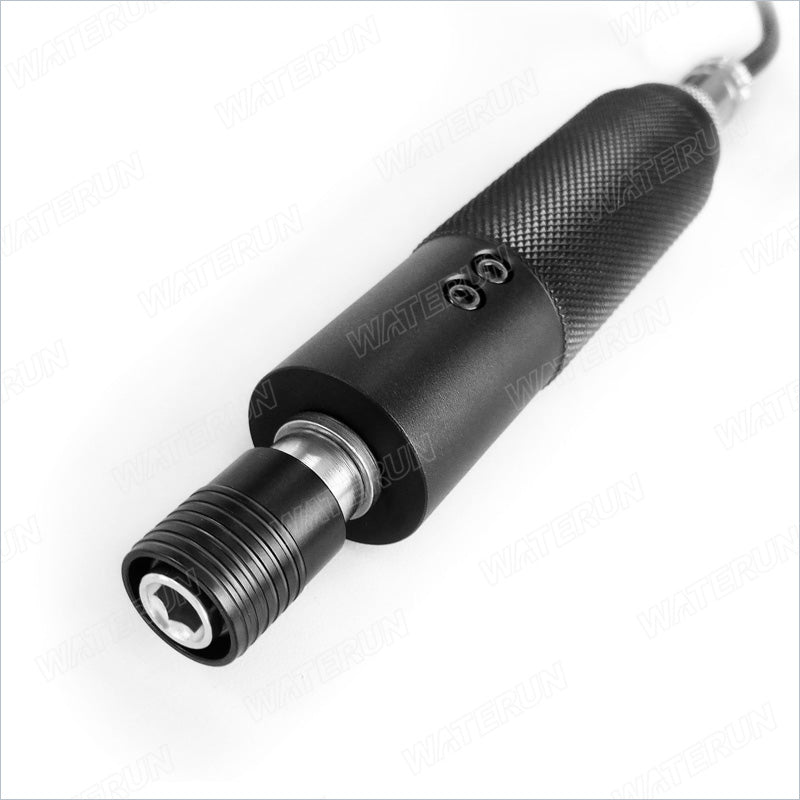

Deterctor 104 (L) x ø21 160 (L) x ø34

Xem toàn bộ chi tiết

FAQ

What are the key features of HDP Series Screw Torque Meters?

The HDP Series Screw Torque Meters typically offer several advanced features, including:
High precision: These meters are designed for accurate measurement of torque applied to screws and bolts, often featuring high-resolution digital displays.
Wide torque range: They usually cover a broad range of torque values, making them suitable for various applications, from delicate electronics to heavy machinery.
Data logging: Some models include data storage capabilities for tracking measurements over time and analyzing performance.
Multiple units of measurement: They often support various torque units, such as Newton-meters, pound-feet, and kilogram-meters.
Calibration and adjustment features: HDP Series meters may include options for calibration to ensure continued accuracy.

How do I calibrate an HDP Series Screw Torque Meter?

Calibration of an HDP Series torque meter generally involves these steps:
Consult the manual: Follow the specific calibration instructions provided in the user manual for your model.
Prepare the device: Ensure the meter is properly powered and connected to the calibration equipment if required.
Apply known torque values: Use a known torque calibration device to apply precise torque to the meter.
Adjust calibration settings: Access the calibration menu on the meter and input the known values to adjust the meter’s readings.
Verify accuracy: After calibration, check the meter with additional known torque values to ensure consistent accuracy.
Record calibration data: Document the calibration results if required for quality control or compliance purposes.

What should I do if my HDP Series Screw Torque Meter is not functioning correctly?

If your HDP Series torque meter is malfunctioning, consider the following steps:
Check the power source: Ensure that the meter’s battery is charged or replace it with a new one. If using an external power source, verify connections.
Inspect connections: Make sure all cables and attachments are properly connected and secure. Check for any visible damage to the sensor or connectors.
Review settings: Verify that the meter’s settings and units are configured correctly and that no errors are displayed on the screen.
Reset or restart: Try turning off the meter and turning it back on. Perform a factory reset if the manual provides instructions for doing so.
Consult the manual: Look for troubleshooting tips and error codes in the user manual.
Contact customer support: If the problem persists, reach out to the manufacturer’s customer support for further assistance or repair options. Ensure you follow any warranty guidelines if applicable.
