Automatic Soldering Machine – The Optimal Solution for Modern Electronics Manufacturing Lines

In today’s modern electronics industry, the demand for precision, speed, and high production efficiency is greater than ever. To meet these needs, automatic soldering machines have become an indispensable part of electronic component and PCB manufacturing lines, as well as in smart devices and many related industries. Below is a detailed overview of a modern, intelligent, and highly efficient automatic soldering machine – the ideal choice for businesses looking to enhance productivity and product quality.

Introduction to the Automatic Soldering Machine

An automatic soldering machine is a specialized device programmed to automatically solder components onto circuit boards. It operates precisely according to preset programs, minimizing errors, improving work efficiency, and reducing labor costs.

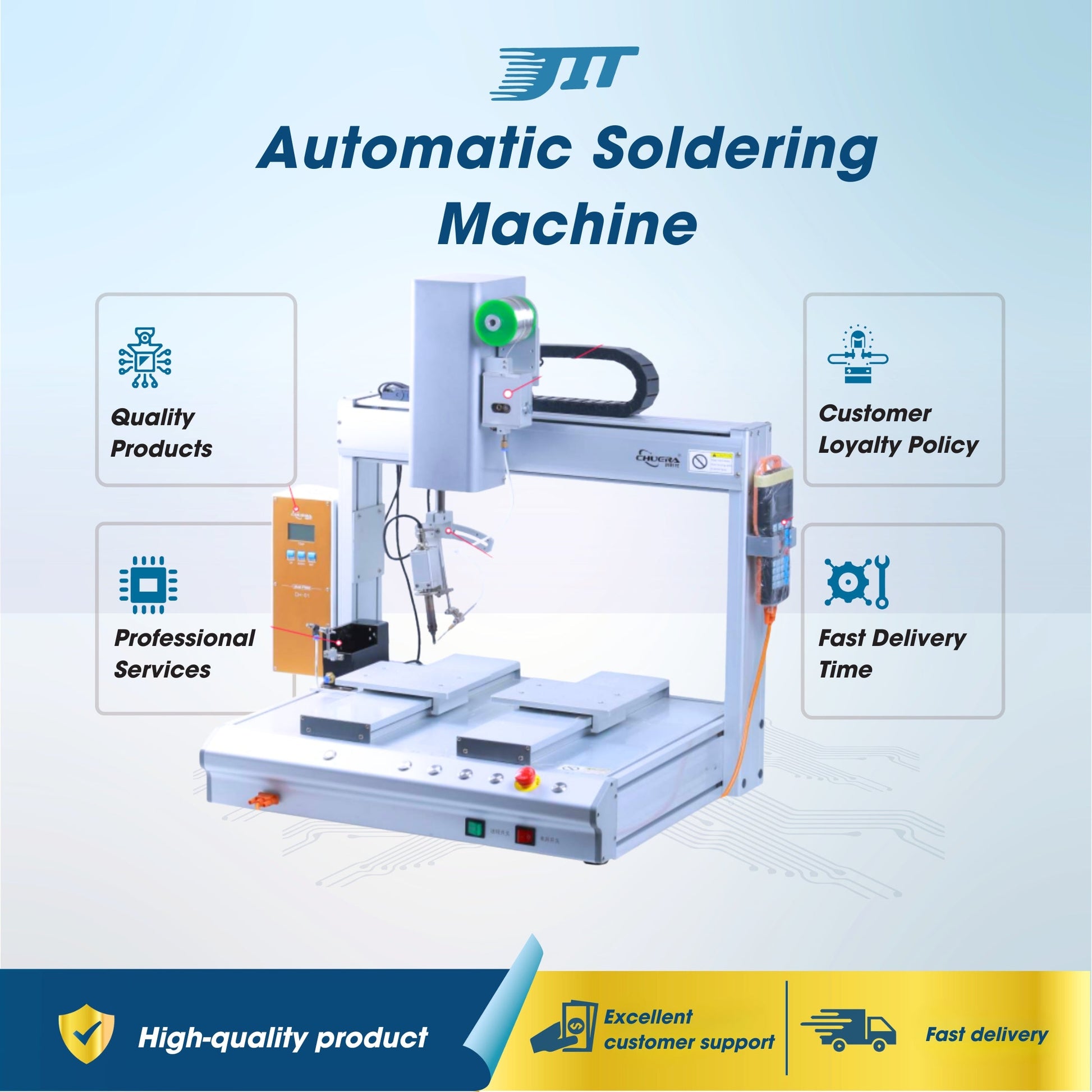

The model featured in this article is a multi-axis soldering machine with a precision transmission system, capable of soldering two products simultaneously at high speed and with excellent stability.

Machine Structure

This robust and modernly designed machine includes the following key components:

• Soldering Head (焊头): The main component that contacts the solder joint, capable of maintaining a stable soldering temperature.

• Control Handle (控制手柄): Allows operators to easily and accurately set up soldering programs.

• Temperature Control Box (温控): Ensures consistent optimal soldering temperature throughout operation.

• Solder Blowing Box (吹锡盒): Supplies a precise amount of solder for each soldering cycle.

• Solder Feeder (送锡盒): Automatically feeds solder to the soldering head as per the programmed cycle.

Technical Specifications

• Working Range: 500mm (X) / 300mm (Y1/Y2) / 100mm (Z)

• Maximum Temperature: 360°C

• Display Method: Uses programmable screen display

• Work Area: Dual-head operation – W200 x L290mm x 2

• Temperature Accuracy: ±2°C (in air)

• Machine Dimensions: W850 x L290 x H900mm

• Power Supply: AC220V – 50/60Hz

• Temperature Compensation Tolerance: ±50°C

• Memory Capacity: Pre-store up to 1000 programs, each with up to 8000 instructions

Outstanding Advantages

1. Boosts Productivity and Cuts Costs

With continuous, precise operation, the machine helps save production time, reduce labor costs, and increase overall efficiency.

2. High Precision

Equipped with advanced temperature control and a specialized soldering head, it ensures every solder joint meets high quality standards and reduces technical defects.

3. Flexible Programming

Supports multiple stored programs and easy adjustments to suit various product types and production requirements – ideal for both mass production and prototyping.

4. Modern Design, Easy Operation

Featuring a smart programming screen and user-friendly control handle, the machine allows intuitive setup and parameter adjustments.

5. Easy Maintenance

Optimized structure for easy cleaning and scheduled maintenance. Main components are easy to disassemble and replace, minimizing downtime.

Real-world Applications

The automatic soldering machine is widely used in industries such as:

• Consumer electronics manufacturing (phones, TVs, computers, etc.)

• PCB board production

• Medical and industrial equipment manufacturing

• Automotive, robotics, and IoT applications

Why Invest in an Automatic Soldering Machine?

For electronics manufacturers, product quality and production efficiency are critical. Investing in an automatic soldering machine not only helps optimize costs but also improves the quality of output, ensuring consistency across batches.

In a market facing skilled labor shortages, automation is an inevitable trend. An automatic soldering machine is a vital step toward adopting a high-tech, efficient, and sustainable production model.

Where to Buy an Automatic Soldering Machine?

If you're looking for a high-quality, reliable automatic soldering machine with excellent warranty and technical support, contact us – a leading distributor of automation equipment in Vietnam. We offer:

• Tailored solutions based on your needs

• Competitive pricing

• Lifetime technical support

• Nationwide delivery and installation

——————————
