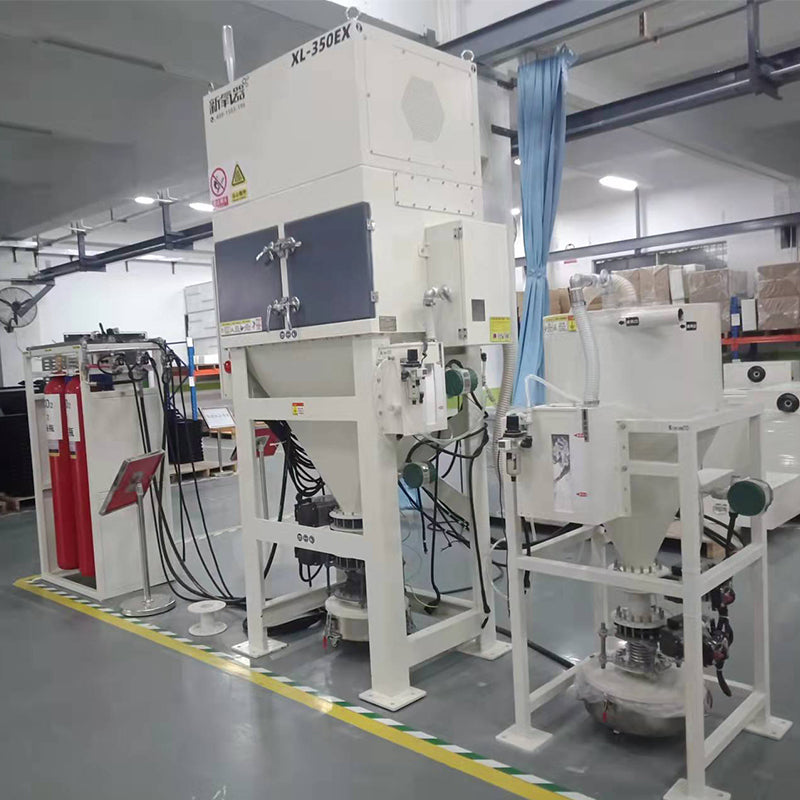

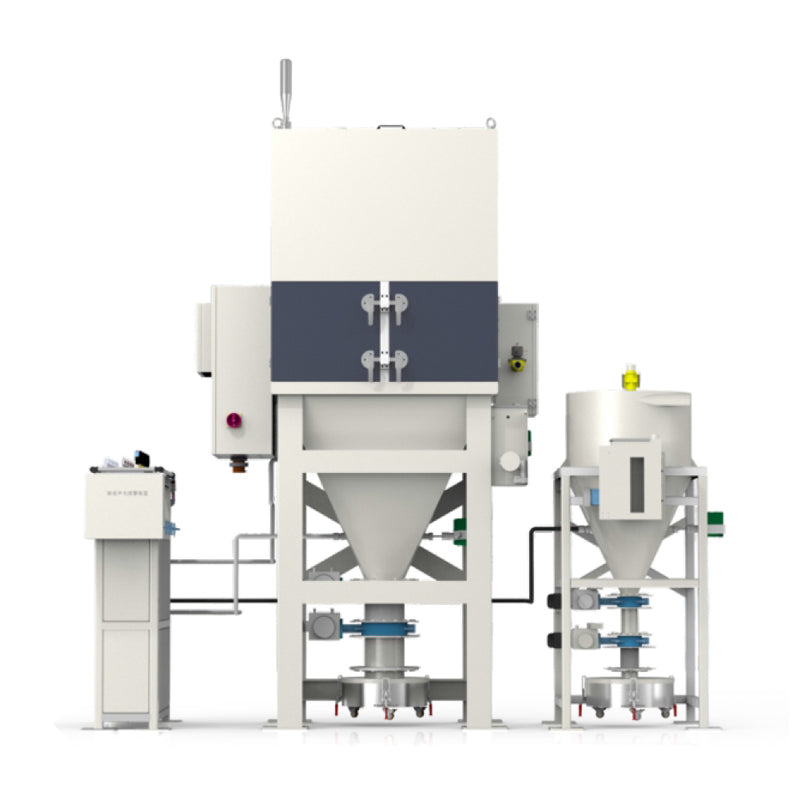

XL-350EX Three-section Interception System, Explosion-Proof Dust Collector System

XL-350EX Three-section Interception System, Explosion-Proof Dust Collector System

Regular price $0.00
Regular price $0.00 Sale price
EXW China
SAVE $0 Sold out

Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

XL-350EX Product Parameters:

Model XL-350EX
Filter Cartridge 2pcs
Weight 350 KGS
Dimension 1050 X 735 X 2228mm
Airflow 318m³/h
Noise 63dB
Power 4.0Kw
Voltage AC380/80HZ/3-Phrase
Negative Pressure 25000Pa
Empty Load Rotating Speed 2950rpm
Negative Airflow Speed 24m/s
AirInlet Diameter 50mm

View full details

FAQ

What are the safety features of the XL-350EX Explosion-Proof Dust Collector System?

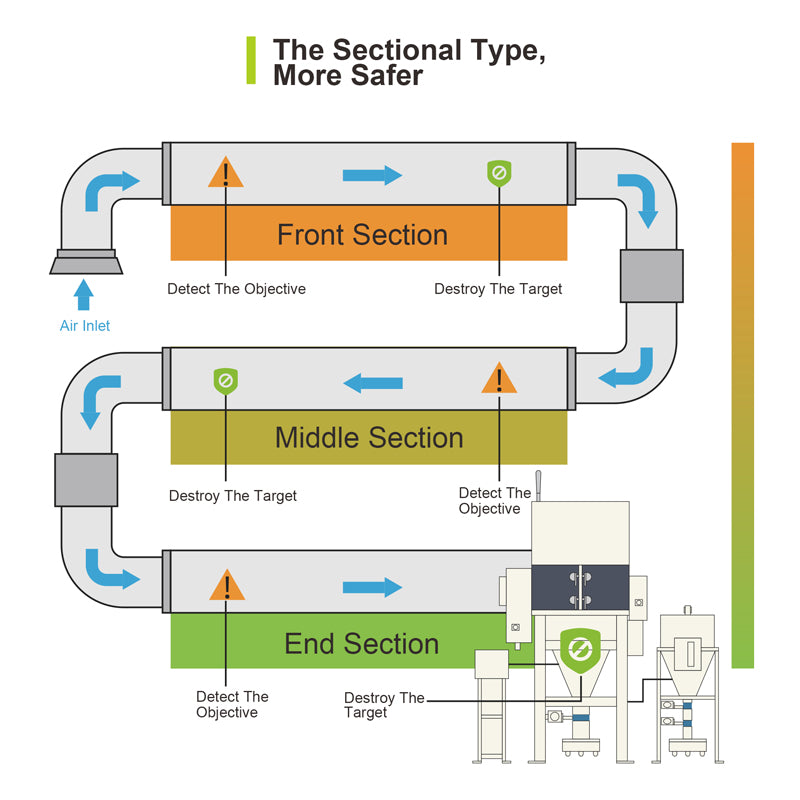

The XL-350EX is designed with advanced active explosion-proof technology to prevent deflagration. It includes a three-section interception system that ensures comprehensive explosion protection throughout the machine. This technology significantly reduces the risk of explosions, making it safer for industrial environments where dust collection is critical.

How does the XL-350EX improve operational efficiency and reduce costs?

The XL-350EX can save users up to 1.5 million yuan (approximately USD 250,000) per year by significantly reducing the defective rate of parts. For example, a Fortune 500 company using this system saw a reduction in defective parts from 300 to 30 per 10,000 parts, improving overall production quality and efficiency.

What are the key specifications and capabilities of the XL-350EX?

The XL-350EX features a robust design with two filter cartridges, a weight of 350 kg, and dimensions of 1050 x 735 x 2228 mm. It offers an airflow rate of 318 m³/h, operates at a noise level of 63 dB, and requires a power input of 4.0 kW. The system is designed to handle negative pressure up to 25000 Pa, with an empty load rotating speed of 2950 rpm and a negative airflow speed of 24 m/s. The air inlet diameter is 50 mm, making it suitable for various industrial dust collection applications.
