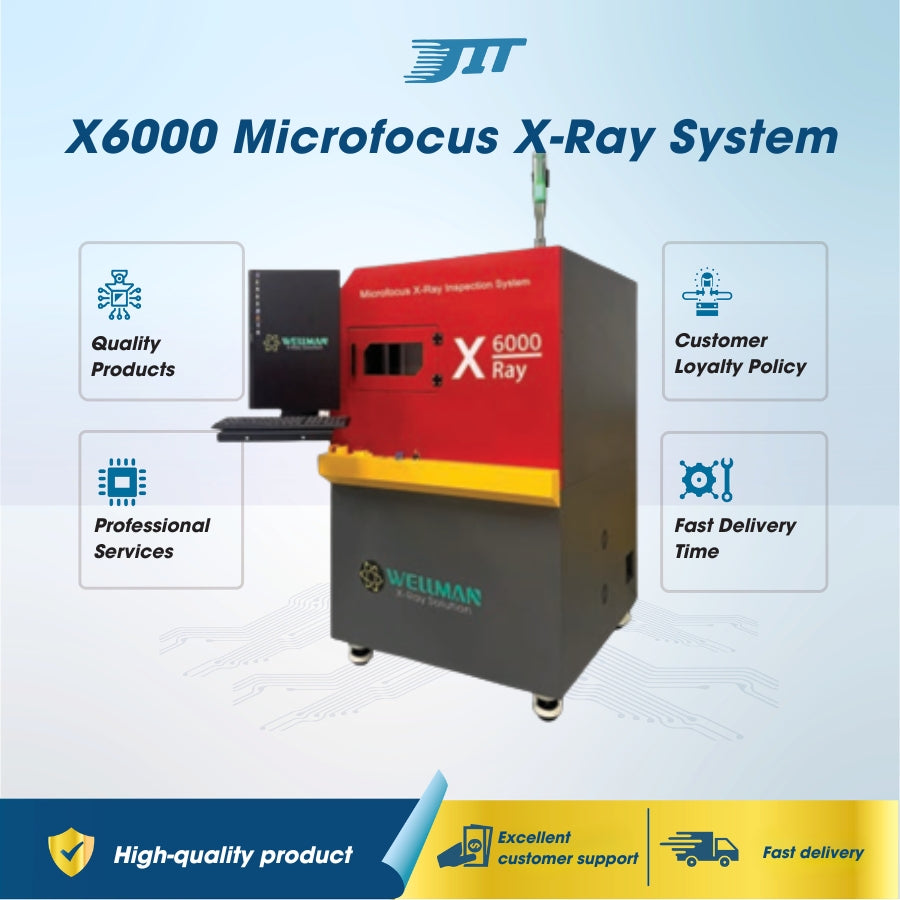

X6000 Microfocus X-Ray Inspection System
X6000 Microfocus X-Ray Inspection System
● Mobel: 1150D
● MOQ : 1 set
● Packing details:
● Subject to discussion:
Couldn't load pickup availability
Introduction to the X6000 Microfocus X-Ray Inspection System
In the rapidly evolving electronics manufacturing industry, quality control is more crucial than ever. Ensuring the integrity of solder joints, detecting voids, and verifying internal structures require advanced inspection methods. The X6000 Microfocus X-Ray Inspection System is an innovative solution designed to meet the rigorous demands of modern electronics inspection. With state-of-the-art X-ray technology, automated inspection features, and user-friendly operation, the X6000 is the perfect tool for manufacturers aiming for high-precision quality control.
Cutting-Edge X-Ray Technology for Superior Imaging
At the core of the X6000 system is its high-resolution Hamamatsu X-ray tube from Japan, boasting an impressive 10,000+ hours lifespan. This tube delivers crystal-clear imaging that allows operators to detect minute defects in electronic components. The system also features a 5” HD digital flat panel detector (FPD), ensuring that even the smallest anomalies are captured with precision.
Key Advantages of the X6000’s X-Ray Technology:
High-resolution imaging for detailed inspection
Long lifespan reducing maintenance costs
Advanced digital flat panel detector for improved defect detection
Real-time imaging to enhance efficiency
Advanced Inspection Features for Precision and Efficiency
The X6000 is engineered with advanced inspection capabilities that streamline the quality control process. Equipped with an automatic navigation window, the system allows for efficient and seamless inspections, minimizing operator input while maximizing accuracy.
Inspection Features Include:
420×420mm table with 15KG capacity – Suitable for a wide range of components and PCB sizes
Speed-adjustable 3-axis linkage – Enhances precision during inspections
Optional 360° rotary jig – Allows for comprehensive multi-angle inspection
This combination of automation and flexibility ensures that manufacturers achieve higher throughput rates, reducing downtime and improving overall production efficiency.
User-Friendly and Highly Efficient Operation
Unlike traditional X-ray inspection systems that require extensive training and technical expertise, the X6000 is designed for ease of use. The intuitive interface and customizable automated inspection procedures allow operators to efficiently conduct inspections with minimal training.
Benefits of User-Friendly Design:
Requires only 2 hours of training for full operational efficiency
Customizable automation for streamlined inspection processes
Easy-to-use interface reducing human error
This makes the X6000 a cost-effective solution for manufacturers looking to enhance quality control without extensive labor costs.
Application Examples: Detecting Hidden Defects in Electronics
The X6000 Microfocus X-Ray Inspection System is specifically designed to identify and analyze defects that are otherwise undetectable by traditional inspection methods. It is widely used in industries such as semiconductor manufacturing, PCB assembly, and electronics repair.
Common Inspection Applications:
BGA (Ball Grid Array) Solder Bridges – Ensures proper solder joint formation
BGA Solder Voids – Detects gaps that can lead to electrical failures
BGA Through-Hole Inspection – Identifies connectivity issues in multilayer PCBs
IC Voids and Gold Wire Analysis – Ensures structural integrity of integrated circuits
LED Solder Voids and Cracks – Improves reliability in LED manufacturing
Gold Wire Cracking in Semiconductor Devices – Detects micro-fractures before failures occur
By incorporating the X6000 into their quality control process, manufacturers can reduce product defects, improve reliability, and increase customer satisfaction.
Why Choose the X6000 for Your Manufacturing Needs?
When selecting an X-ray inspection system, manufacturers must consider precision, efficiency, ease of use, and cost-effectiveness. The X6000 excels in all these areas, making it a top choice for companies aiming to enhance their production quality.
Key Reasons to Invest in the X6000:
✅ Industry-Leading X-Ray Technology – High-resolution imaging with long-lasting performance
✅ Comprehensive Inspection Capabilities – Advanced automation and multi-axis functionality
✅ User-Friendly Operation – Requires minimal training and streamlines workflow
✅ Versatile Applications – Suitable for PCBs, semiconductors, LEDs, and more
✅ Cost-Effective Solution – Reduces defects and improves efficiency, leading to higher ROI
Final Thoughts: Elevate Your Quality Control with X6000
In today’s competitive electronics industry, investing in advanced inspection technology is crucial for maintaining high product standards. The X6000 Microfocus X-Ray Inspection System offers cutting-edge imaging, automated features, and unparalleled ease of use, making it the ultimate solution for modern manufacturers.
With superior defect detection capabilities, the X6000 ensures that every component meets stringent quality standards, helping businesses reduce failures, increase efficiency, and improve customer trust.
If you’re looking to revolutionize your inspection process, the X6000 is the ideal choice for achieving precise, reliable, and efficient quality control.
