WT4223-2Y Screw Fastening Robot （Drop Screw type）

WT4223-2Y Screw Fastening Robot （Drop Screw type）

$0.00
$0.00
EXW China
SAVE $0 Sold out

● Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

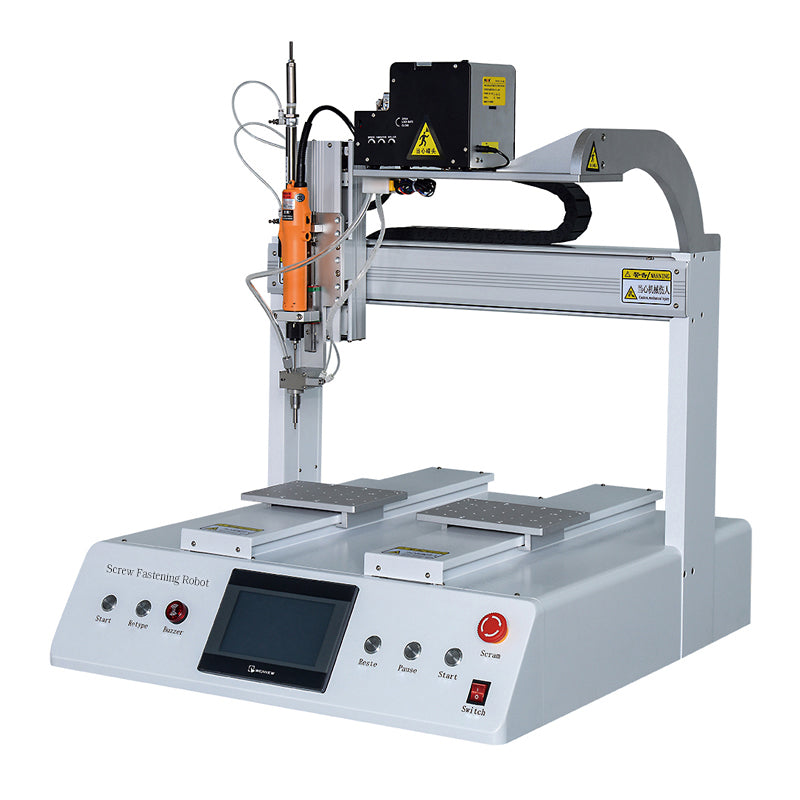

WT-4223-2Y  (Drop Screw type)

Screw Fastening Robot


Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistancy & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.

Features:

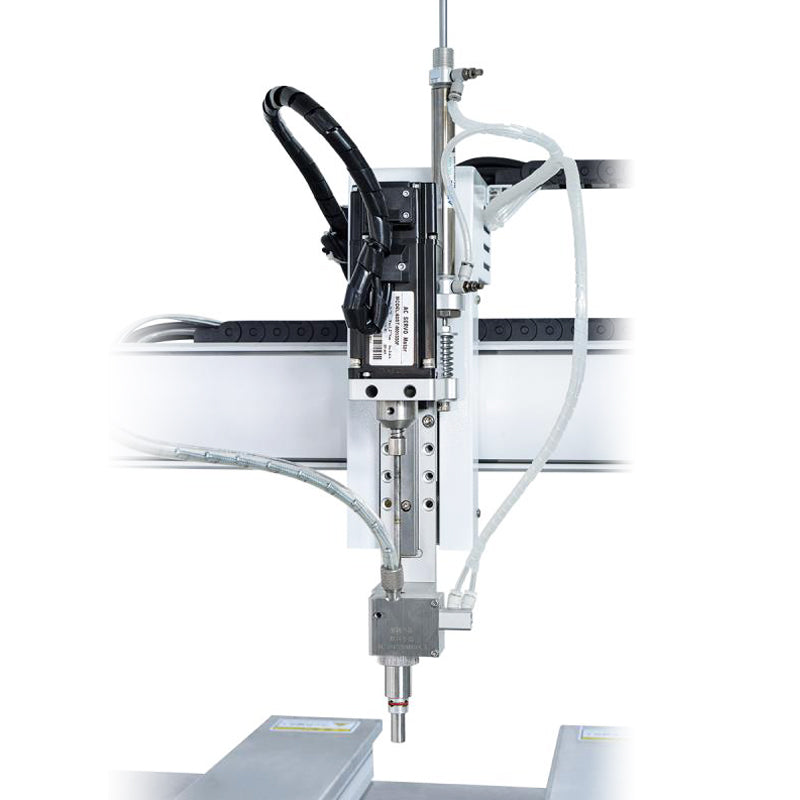

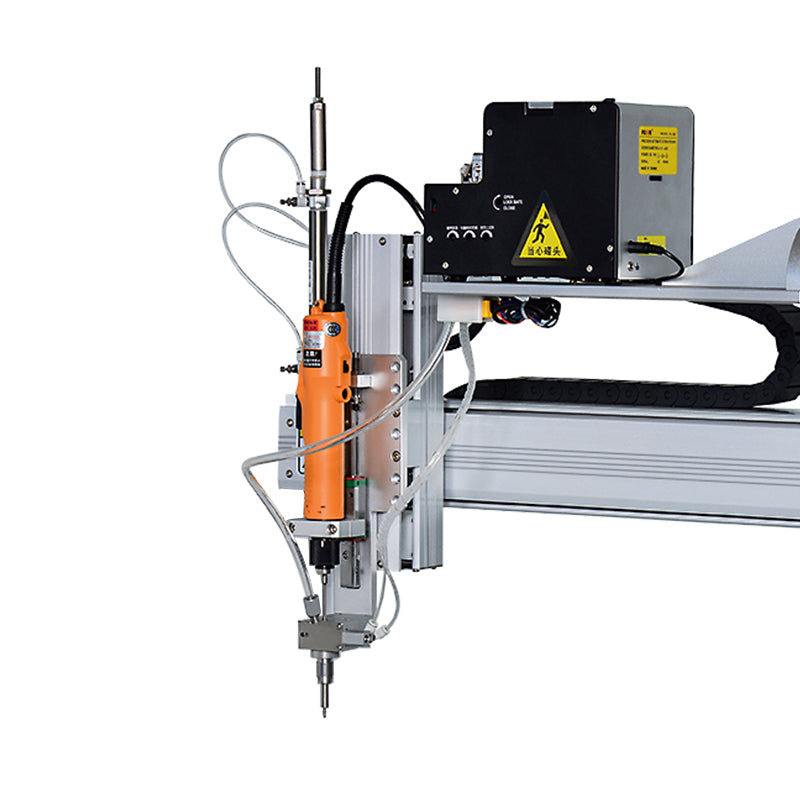

1. The screws will feed to the screwdriver bit directly one by one through a tube, to achieve extremely fast feeding and screwing.
2. The operator can use manual positioning to do the programming. It is highly efficient and very easy to learn the operation.
3. With alarm function for fastening missing, untightened screws, worn thread, etc.
4. Support auto sensing start operation function.



Applications:

It is suitable for all kinds of screw fastening process on mobile phones, keyboards, monitors, car accessories, toys, small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers), etc.


Specifications:
Model
WT-4223-2Y
Operating Range (X * Y * Z)

X230 * Y1/420 * Y2/420 * Z135mm
Movement Speed

X/Y Axis: ≤500mm/s，Z Axis: ≤300mm/s.
Repeatability  Accuracy

 ±0.02mm

Screwing time for each screw

0.8~1.2s/piece

Suitable screw size

M1.5 – M4 (total screw length ≤ 16mm)

Control system

SCM + Touch Screen

Program capacity

15 files, each file can save up to 99 points

Air source

0.4 -0.6 Mpa

Dimensions

0.4 -0.6 Mpa
Weight
about  80 kgs
View full details

FAQ

What are the key benefits of using the WT-4223-2Y screw fastening robot (drop screw type) for my production line?

The WT-4223-2Y screw fastening robot offers a number of advantages to enhance your production efficiency and product quality, including:

Enhanced precision: The robot's advanced control system and high-resolution vision system ensure precise screw placement and tightening, even for the smallest and most complex components.
Increased productivity: By automating the screw fastening process, the WT-4223-2Y can significantly reduce cycle times and improve overall output.
Improved consistency: The robot's consistent performance results in uniform screw tightening and fewer defects, leading to higher product quality and reliability.
Flexibility: The WT-4223-2Y can be easily programmed to handle a wide range of screw sizes and materials, making it adaptable to changing production requirements.
Safety: The drop screw feature ensures a smooth and controlled screw feeding process, reducing the risk of worker injuries and improving safety.

How does the WT-4223-2Y compare to other screw fastening robots on the market?

The WT-4223-2Y stands out from other screw fastening robots due to its:

Drop screw technology: This unique feature allows for efficient and reliable screw feeding, improving overall productivity and reducing downtime.
Advanced vision system: The robot's high-resolution camera and sophisticated image processing algorithms enable it to handle components with varying sizes and orientations with greater accuracy.
User-friendly interface: The intuitive software makes it easy for operators to program and operate the robot, reducing training time.
Modular design: The modular construction allows for easy customization and integration with existing production lines.
Robustness: The WT-4223-2Y is built to withstand the rigors of industrial environments and provide long-term reliability.

What industries and applications is the WT-4223-2Y screw fastening robot suitable for?

The WT-4223-2Y is a versatile robot that can be applied in a wide range of industries, including:

Electronics manufacturing: Assembly of PCBs, enclosures, and other electronic components.
Automotive: Assembly of automotive parts, such as door panels, dashboards, and seats.
Mechanical assembly: Assembly of metal and plastic components in various industries.
Consumer goods: Assembly of toys, appliances, and other consumer products.
