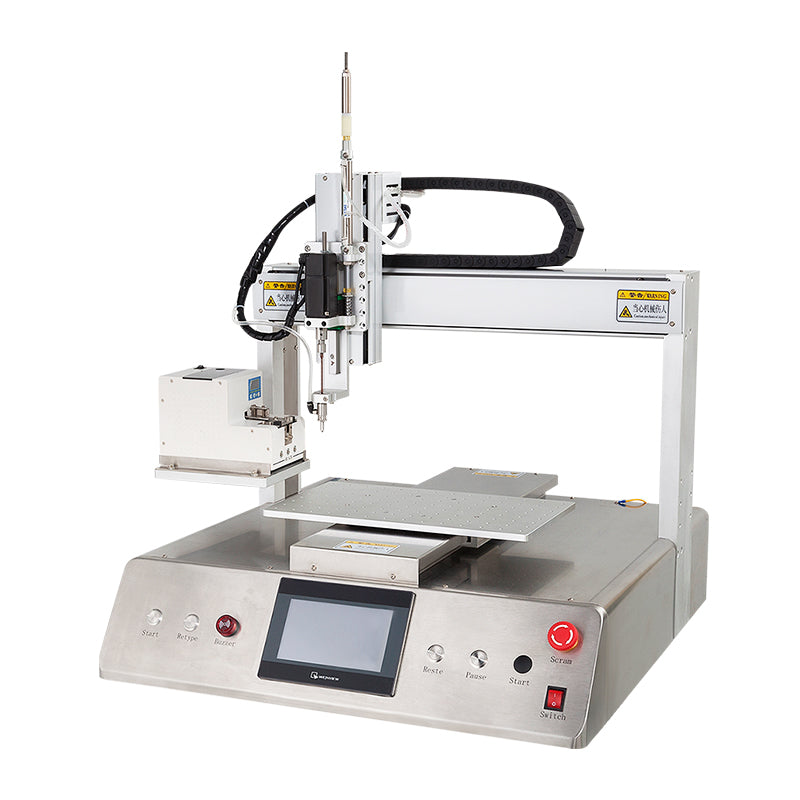

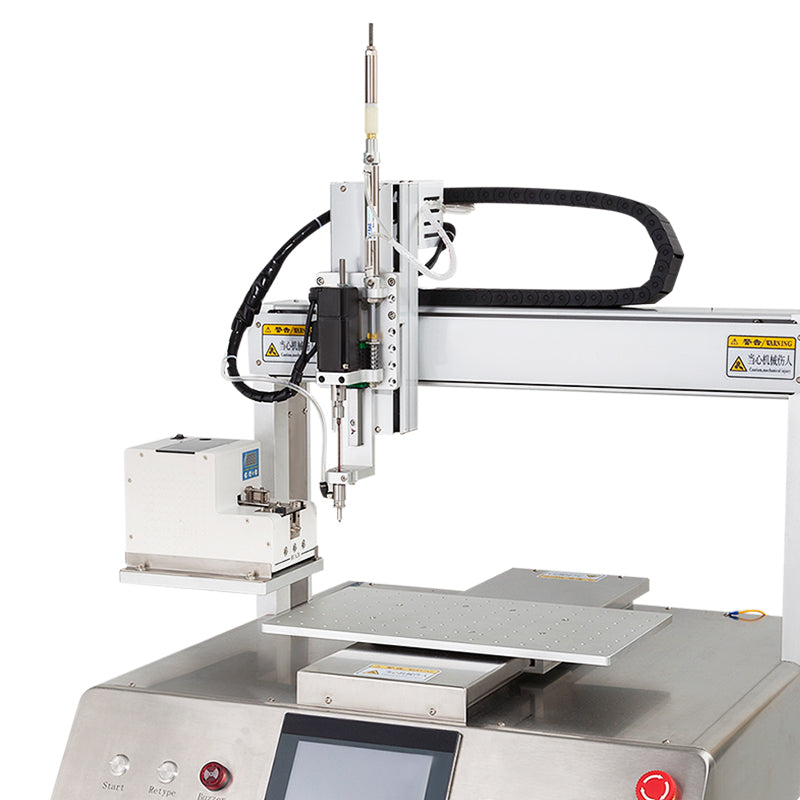

WT-4245-1Z Magnetic Suction Type Screw Fastening Robot

WT-4245-1Z Magnetic Suction Type Screw Fastening Robot

$0.00
$0.00
EXW China
SAVE $0 Sold out

● Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

WT-4245-1Z  (Magnetic Suction type)


Screw Fastening Robot

Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistancy & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.

Features:

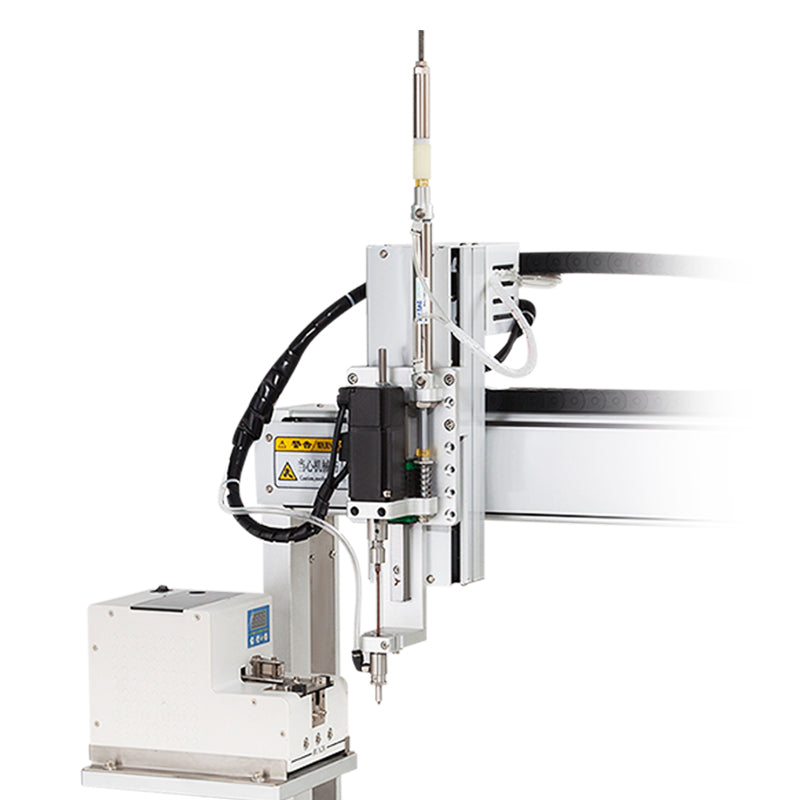

1. Permanent magnet suction screw structure, deep hole / bevel screw / meson screw locking function for product locking screw position

2. Support anti-leak lock / sliding / floating tooth alarm function

3. Support pre-release or pre-release adjustments

4. Support automatic induction start operation function

5. Support servo electric batch speed and torque automatic adjustment function

6. Support manual drag adjustment, lock screw point adjustment function

Applications:

It is suitable for all kinds of screw fastening process on mobile phones, keyboards, monitors, car accessories, toys, small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers), etc.

Specifications:
Model
WT-4245-2Z
Operating Range (X * Y * Z)

X450*Y1/420*Z135mm
Movement Speed

X/Y Axis: ≤500mm/s,  Z Axis: ≤300mm/s.
Repeatability  Accuracy

 ±0.03mm

Screwing time for each screw

1.0~1.5s /piece

Suitable screw size

M1.5 – M4 (total screw length ≤ 16mm)

Control system

SCM + Touch Screen

Program capacity

15 files, each file can save up to 99 points

Air source

0.4 -0.6 Mpa

Dimensions (WxDxH)

810 x 720 x 900mm
Weight
about 80 kgs
View full details

FAQ

What are the key benefits of using the WT-4245-1Z magnetic suction type screw fastening robot for my production line?

The WT-4245-1Z magnetic suction type screw fastening robot offers a number of advantages to enhance your production efficiency and product quality, including:

Enhanced precision: The robot's advanced control system and high-resolution vision system ensure precise screw placement and tightening, even for the smallest and most complex components.
Increased productivity: By automating the screw fastening process, the WT-4245-1Z can significantly reduce cycle times and improve overall output.
Improved consistency: The robot's consistent performance results in uniform screw tightening and fewer defects, leading to higher product quality and reliability.
Flexibility: The WT-4245-1Z can be easily programmed to handle a wide range of screw sizes and materials, making it adaptable to changing production requirements.
Safety: The magnetic suction feature ensures secure handling of screws, reducing the risk of worker injuries and improving safety.

How does the WT-4245-1Z compare to other screw fastening robots on the market?

The WT-4245-1Z stands out from other screw fastening robots due to its:

Magnetic suction technology: This unique feature allows for efficient and secure handling of screws, improving overall productivity and reducing downtime.
Advanced vision system: The robot's high-resolution camera and sophisticated image processing algorithms enable it to handle components with varying sizes and orientations with greater accuracy.
User-friendly interface: The intuitive software makes it easy for operators to program and operate the robot, reducing training time.
Modular design: The modular construction allows for easy customization and integration with existing production lines.
Robustness: The WT-4245-1Z is built to withstand the rigors of industrial environments and provide long-term reliability.

What industries and applications is the WT-4245-1Z magnetic suction type screw fastening robot suitable for?

The WT-4245-1Z is a versatile robot that can be applied in a wide range of industries, including:

Electronics manufacturing: Assembly of PCBs, enclosures, and other electronic components.
Automotive: Assembly of automotive parts, such as door panels, dashboards, and seats.
Mechanical assembly: Assembly of metal and plastic components in various industries.
Consumer goods: Assembly of toys, appliances, and other consumer products.
