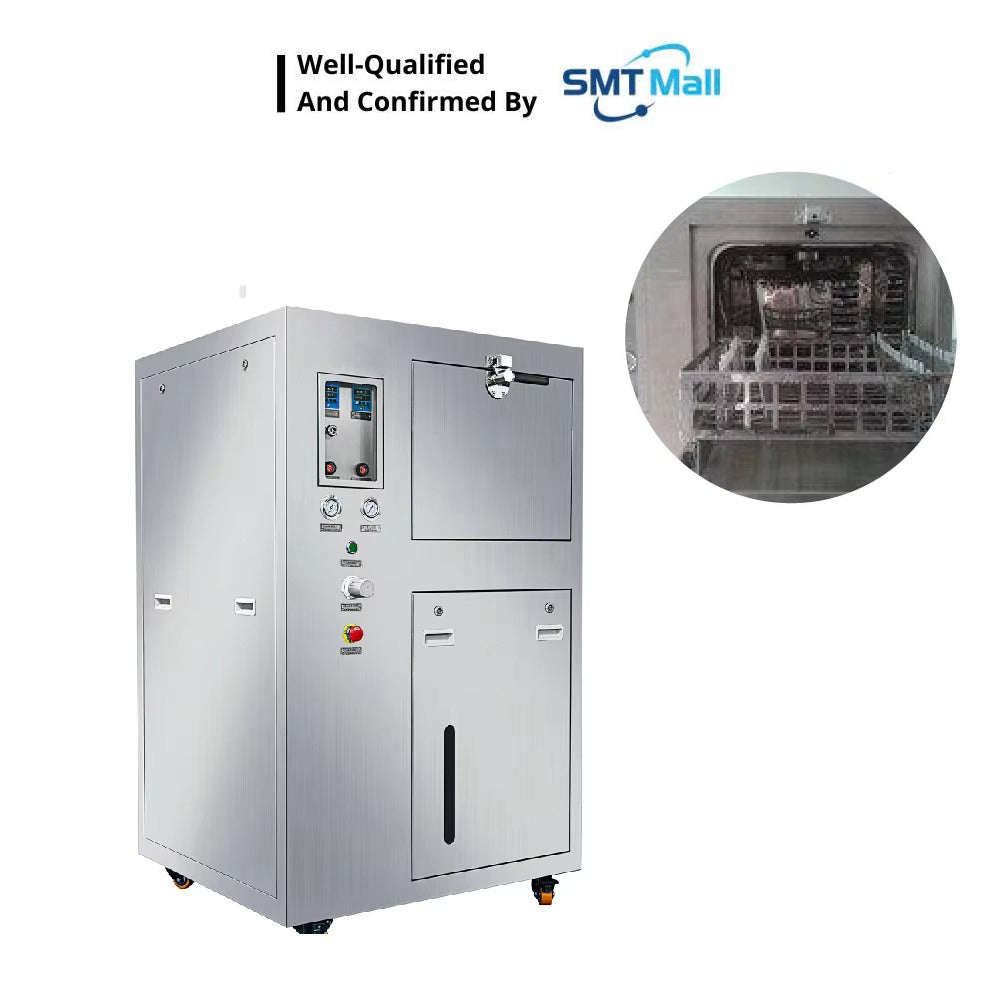

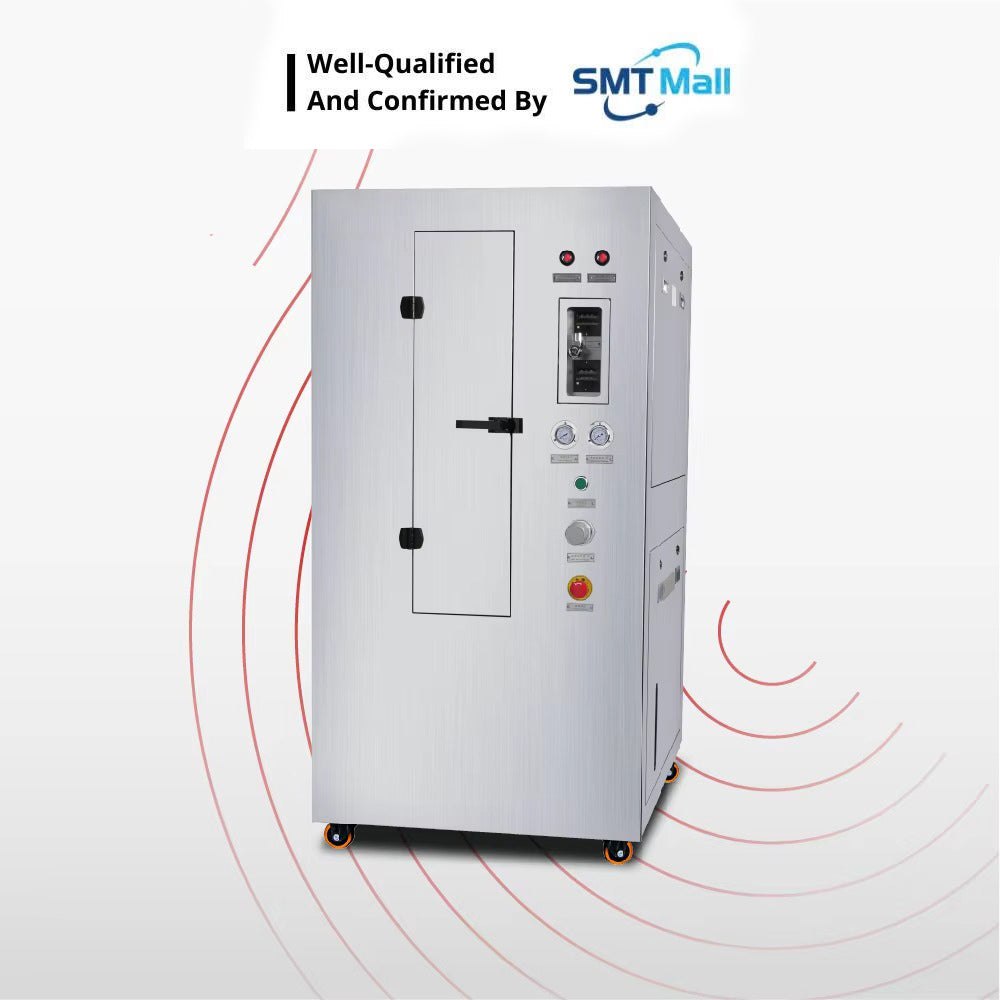

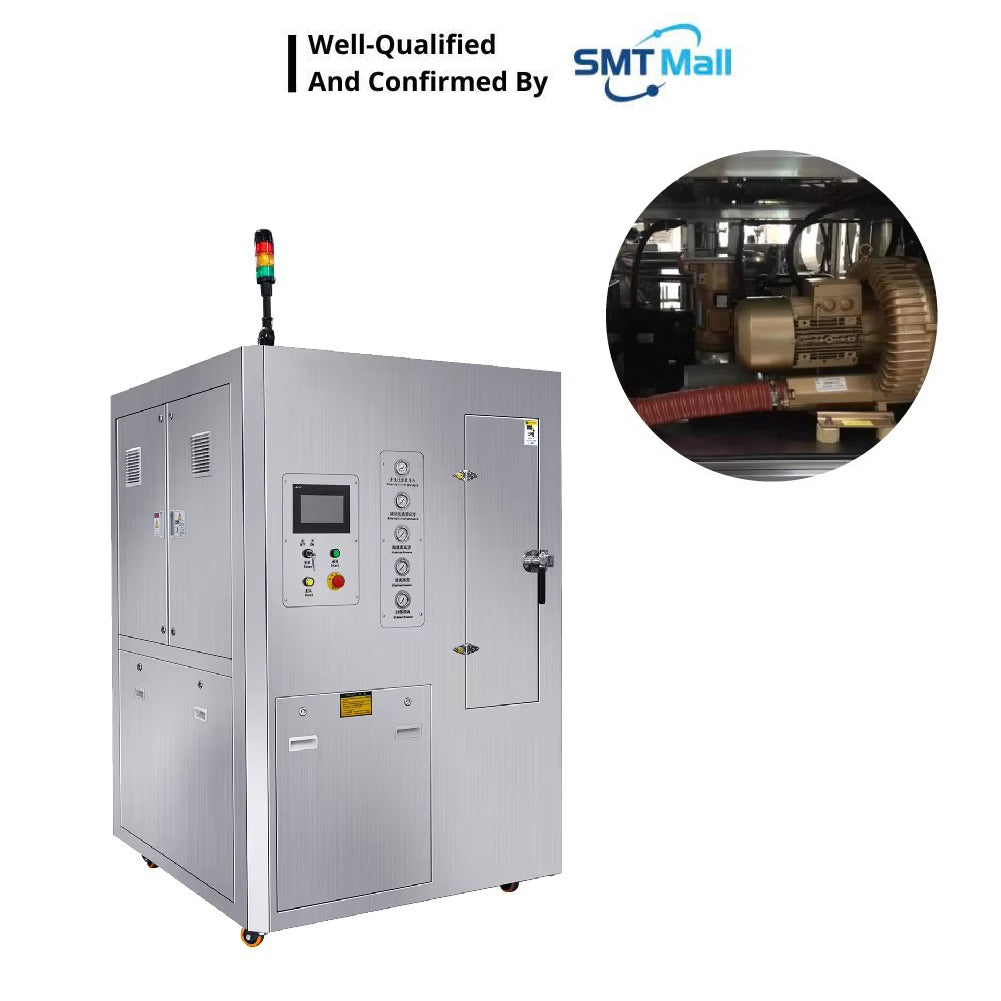

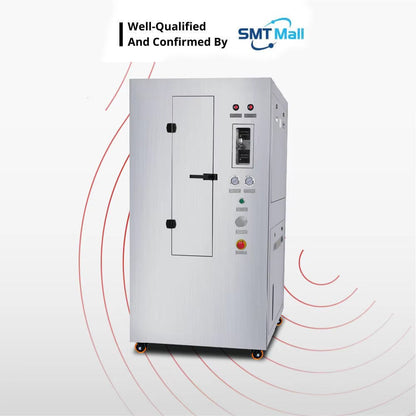

SMT Automatic Stencil Cleaning Machine
SMT Automatic Stencil Cleaning Machine
● Mobel: 1150D
● MOQ : 1 set
● Packing details:
● Subject to discussion:
Couldn't load pickup availability
Product Overview
The SMT Automatic Stencil Cleaning Machine is a fully automatic industrial cleaning system designed for precision cleaning of stencils, screens, and PCBA-related components in SMT and electronics manufacturing processes.
Utilizing advanced aqueous and ultrasonic cleaning technology, the system ensures effective removal of contaminants such as solder paste, SMD adhesives, flux residues, oil, grease, and dust. This helps maintain high product quality, improve process consistency, and extend stencil service life.
Engineered for reliability and efficiency, the machine features a multi-stage cleaning process with controlled temperature drying, making it an ideal solution for high-volume production environments.
Technical Specifications
| Item | Description |
| Machine Type | Industrial Ultrasonic Cleaner |
| Cleaning Process | Cold Water Cleaning |
| Cleaning Type | Aqueous / Ultrasonic Cleaning |
| Material Compatibility | Metal / Coil |
| Application | Burnishing / Precision Cleaning |
| Power Source | Electric |
| Dimensions (L×W×H) | 800 × 950 × 1650 mm |
| Weight | 1600 kg |
| Cleaning Basket Size | 610 × 560 × 100 mm (2 layers) |
| Spray Tank Capacity | 17 L |
| Concentrate Capacity | 32 L |
| Dilution Tank Capacity | 60 L |
| Cleaning Time | 5 – 20 minutes |
| Rinse Time | 1 – 2 minutes per cycle |
| Hot Air Drying Time | 10 – 30 minutes |
| Drying Temperature | Room temperature – 99°C |
| DI Water Supply | 30 – 65 L/min |
| Warranty | 1 Year |
Key Highlights
Fully automatic aqueous cleaning system for SMT applications
Integrated ultrasonic cleaning for enhanced precision and efficiency
Multi-stage process: Cleaning → Rinsing → Hot Air Drying
Adjustable cleaning and drying parameters for process flexibility
High-efficiency contaminant removal (solder paste, flux, adhesives)
Dual-layer basket design for increased throughput
Stable and consistent cleaning performance for high-volume production
Applications
This system is ideal for precision cleaning in SMT and electronics manufacturing, including:
SMT stencil and screen cleaning
PCBA cleaning and maintenance
Removal of solder paste, SMD adhesives, and flux residues
Cleaning of metal components and precision parts
The machine supports a wide range of aqueous cleaning agents and is compatible with standard industry materials, making it suitable for diverse production environments.
