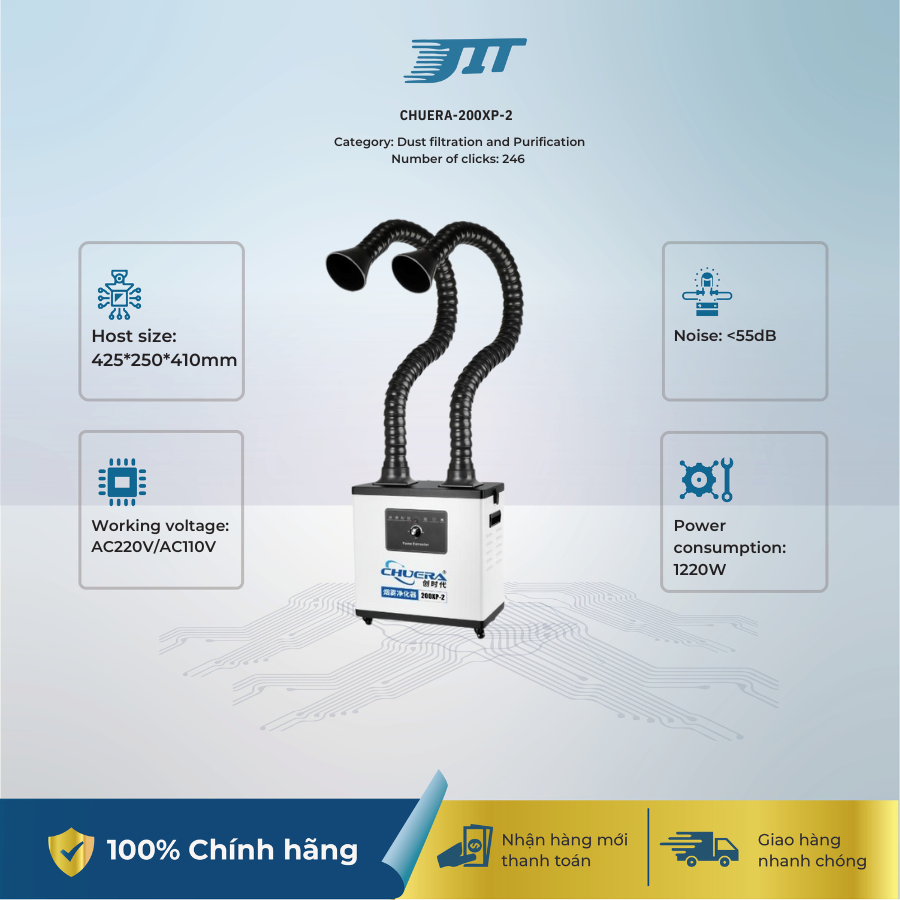

Smoke Purifier Machine CHUERA-200XP-2

• With a full metal chassis design, it can resist strong impact and vibration;
• Compact machine design, beautiful appearance, occupies little space;
• The air inlet diversion design improves the purification efficiency of the filter core;
• Stepless speed adjustment, simple and convenient operation;
• Fatigue-resistant brushless motor, with low noise, high speed and long life;.
• Aircraft grade aluminum volute impeller for stable airflow and smooth operation;
• Multi-stage filtration design ensures thorough filtration of harmful substances and reduces environmental pollution;
• Smoking pipe can change direction at will, with strong support, simple and convenient installation;
• Filter cores should be replaced separately to extend the life of the main filter cores to improve efficiency and reduce costs;
• The bottom of the machine is equipped with silent PU wheels, which is convenient to move and saves energy and more worry;
• It can be assembled and used in three steps after disassembling the machine, the installation is super easy, and there is no need for a separate pipe;
• The indoor circulation filtration method avoids exhausting indoor cold air (warm air) to the outdoors and keeps the indoor air empty.

Technical Specification:

Product model: 200XP-2
Station: Double station
The output voltage: AC 110V/220V
Power consumption: 220W
Air inlet interface: φ75
System traffic: 333m/h
Number of filter element layers: 3 layers, customizable
Noise: <55dB
Pipe length: 1.4m(customizable)
Filtering effect: >0.3um 9.99%
Display method: Knob
Host size: 425*250*410mm
Host net weight: 15Kg
Tobacco tube packaging: 440*430*190mm

Applications:

Manual soldering, laser marking, tinning furnace, soldering robot, laser cutting, medical beauty, scientific research experiments, etc.
