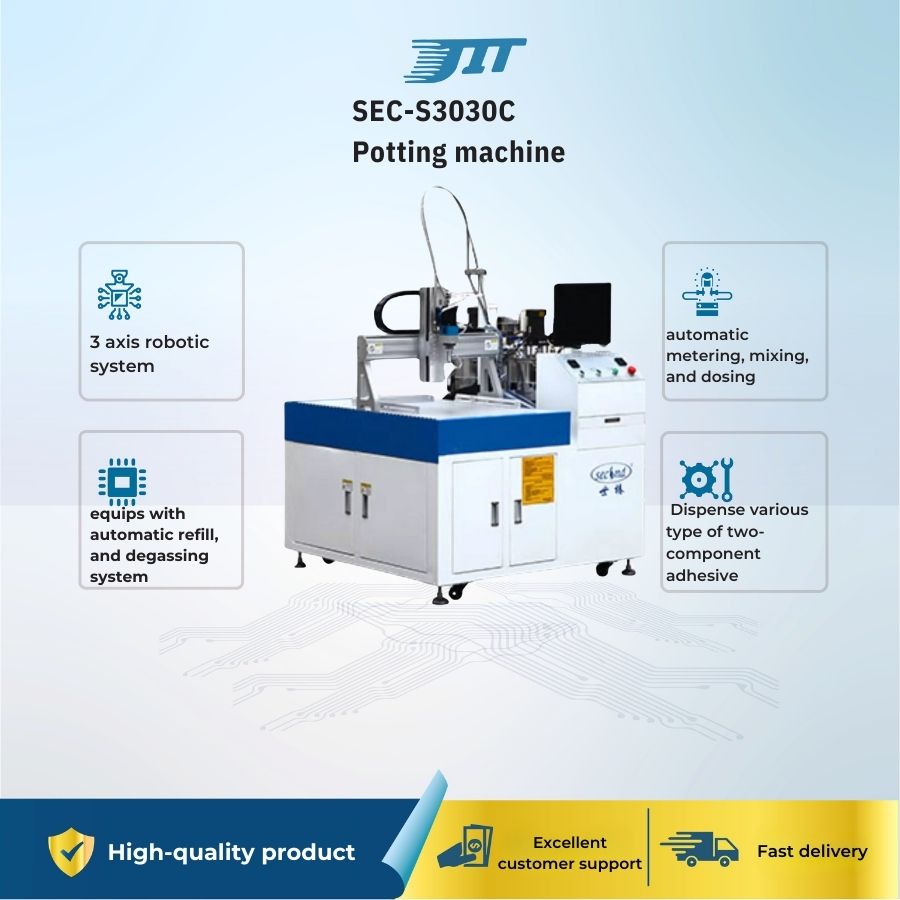

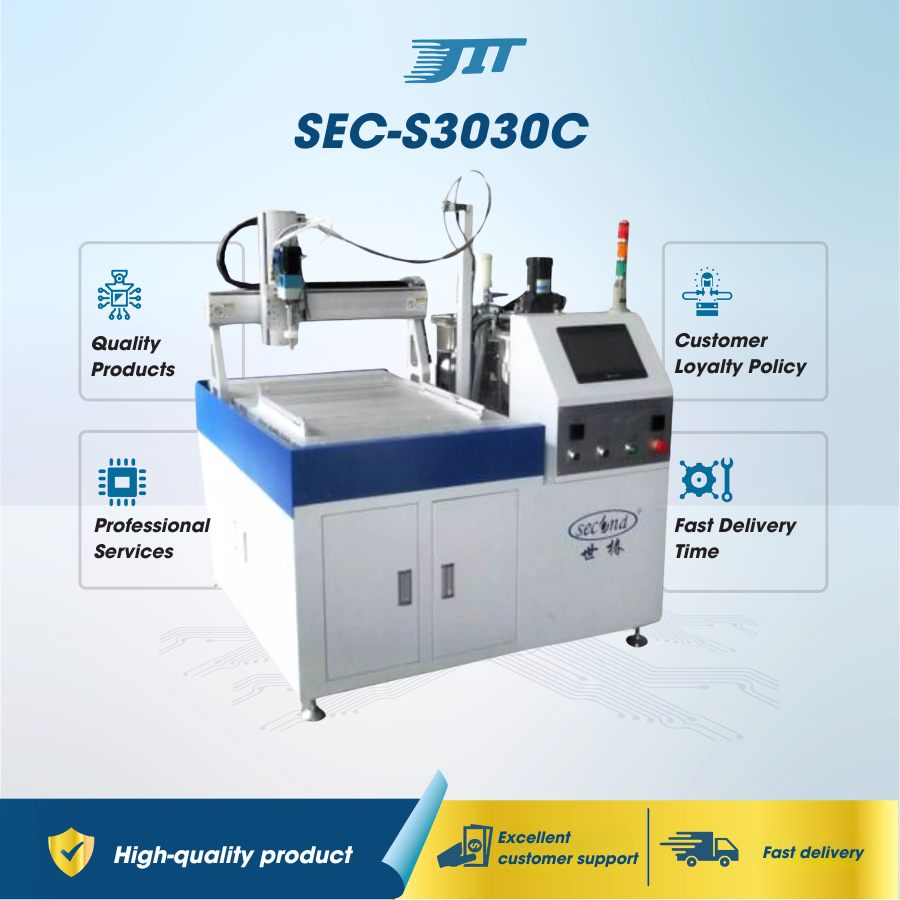

SEC-S3030C Potting machine
SEC-S3030C Potting machine
● Mobel: 1150D
● MOQ : 1 set
● Packing details:
● Subject to discussion:
Couldn't load pickup availability
The machine equips with 3 axis robotic system. It is operated by Second originally developed software, windows based. It can not only set trajectories such as set points, lines, circles, and arcs, but also has advanced functions such as three-dimensional potting through program setting. It is automatic metering, mixing, and dosing base on pre-determined ratio. The machine equips with automatic refill, and degassing system. It can also add agitate stirring, tank heating, and automatic valve cleaning. The operation is simple and user friendly, which greatly saves the manual mixing time, improves efficiency, and also save material and labor cost.
Able to dispensing various type of two-component adhesive material on electric components. For PCB, electronic components, lighting, household appliances, igniter, automotive supplies, vacuum cleaner, filter, and many other fields. （NOTE：The main different between S3030C and S3030C-X is the machine’s casing design. S3030C-X is the latest design.）
Features:
- Works with XYZ Cartesian dispensing robot.
- It is able to dispense beads, lines, arc, circle, and other graphical patents.
- Automatic refilling, degassing, metering, mixing, and dosing homogenously and continuously.
- Able to dispense beads, lines, circular, arc, and graphical patterns.
- Compact machine body with 500mmx700x100 XYZ dispensing range.
Features:
- Works with XYZ Cartesian dispensing robot.
- It is able to dispense beads, lines, arc, circle, and other graphical patents.
- Automatic refilling, degassing, metering, mixing, and dosing homogenously and continuously.
- Able to dispense beads, lines, circular, arc, and graphical patterns.
- Compact machine body with 500mmx700x100 XYZ dispensing range.
Technical Parameter
| Model | SEC-400Z/ZH |
| Working ranges | 400(X)╳300(Y)╳100(Z)mm |
| Travel speed | 0-500mm/sec |
| Mixing accuracy | ±2%/ |
| Dispensing accuracy | ±2% |
| Mixing ratio | 100：100～100：20 or 100：20~100：10 Adjustable ratio |
| Dispensing speed | 1g/sec～15g/sec or 5g/sec～30g/sec |
| Operating method | Movement control system |
| Working viscosity | <100000CPS |
| Metering method | Stepper motor/Rotate plunger pump/Servo motor, piston pump |
| Transfer method | Servo motor/ball-screw |
| Power supply | AC380V 50HZ 3.0KW |
| Machine dimension | 2350(L) ╳1600(W)╳2100(H)mm |
| Machine weight | About 600KGn |
| Working environment | Humidity：20-90%， Temperature: 0-40℃ |
| CCD visual camera | High definition fiducial CCD camera |
| Computer | Computer, monitor, mouse and keyboard |
| Operating system | Windows7 |
| Control software | Second Fluent |
| Communication protocol of the front and rear machines | SMEMA |
| Machine dimension | L779*W1255*H1500mm |
| Machine weight | 800Kg |
| Power supply | AC220V,50/60Hz,2Kw |
| Air pressure | 0.65MPa±0.02MPa，0.2m³/h |
Main configuration
| Part |
Unit |
QTY |
Note |
| PC computer | Set | 1 |
Second Original |
| Monitor | Set | 1 |
DELL |
| XYZ robotic system | Set | 1 |
Servo motor, ball-screw |
| Movement control | Set | 1 |
Second Original |
| Material tank | Piece | 2 |
Tank size (option) |
| Metering pump | unit | 2 |
Screw pump/Gear pump/Piston pump (according to the materials) |
| Mixing valve | Piece | 1 |
Static or Dynamic valve |
| Automated valve clean tank | Piece | 1 |
Automatic clean |
| Vacuum pump | Piece | 1 |
Imported |
