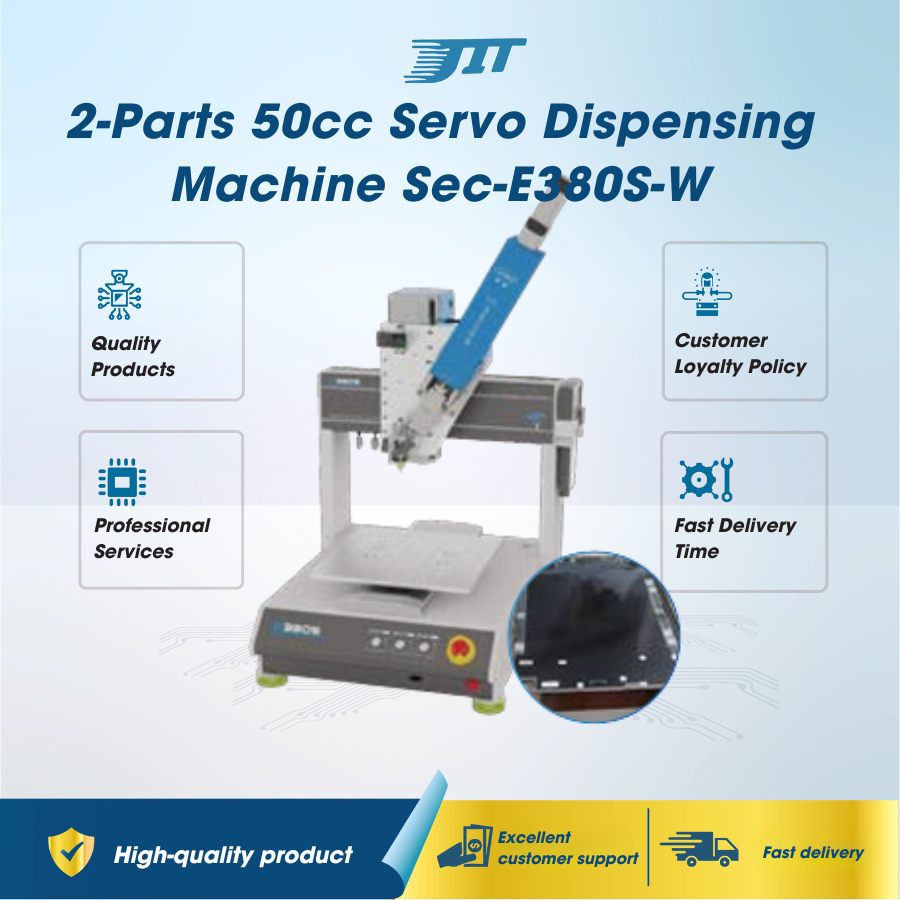

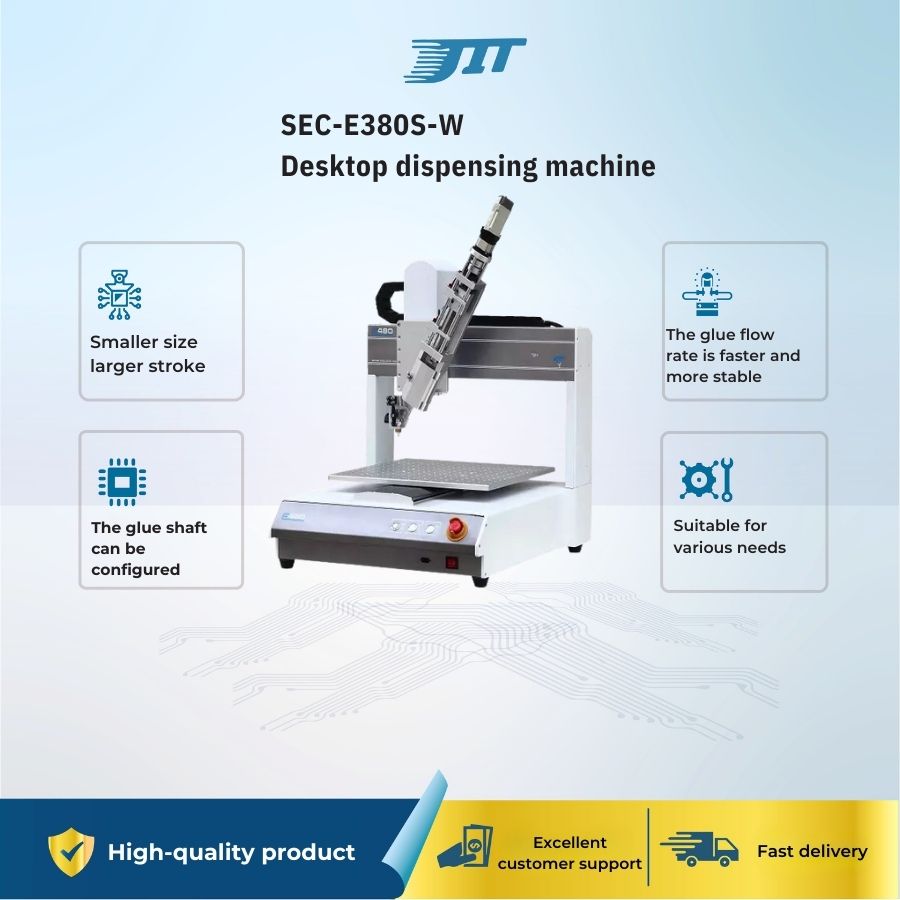

SEC-E380S-W Desktop dispensing machine

SEC-E380S-W Desktop dispensing machine

$0.00
$0.00
EXW China
SAVE $0 Sold out

● Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

.Applications
The desktop machines are widely used in communications, electronics, and PCB industries

  • PCB electronic parts
  • Mobile phone
  • LED dispensing
  • Hardware parts bonding
  • Chip bonding

Features
1. Smaller size, larger stroke
2. One-piece casting, strong structure, stable operation the same size stroke increased by 20-25% making it more compatible
3. Use volumetric metering technology
Push the glue out of the container at a uniform speed
4. Stable pressure and uniform speed
Which can effectively eliminate the influence of environmental pressure changes on the amount of glue and the glue flow rate is faster and more stable ensuring that the thickness of the glue line is uniform and there is no phenomenon of large or small ends
5. Automatic anti-curing function
Which can effectively prevent the glue from curing and blocking the needle
6. The glue shaft can be configured according to the size of the glue package
It supports 50ml, 250ml, 400ml, 490ml packages of two component glue with different proportions
7. It can be selected to be equipped with an inteligent glue controller
Which can display the functions of glue pressure detection anti-blocking detection, automatic switching speed and real-time display of remaining glue volume in real time
8. The glue cooling device can be selected first to delay the curing time

Technical Specification

Model SEC-E380S-W
Working Range 380(X)*380(Y)*100(Z)mm
Machine Dimensions L520*W620*H702mm
Max Payload Y/Z 20kg/15kg
Max Traveling Speed 800mm/sec(XY) / 200mm/sec(Z)
Transporting System Servo motor + lead-screw + precision linear guide
Adhesive Dispensig Method Servo-motor extrusion
Repeat Accuracy ±0.015mm
Resolution 0.01mm
Program Storage Capacity 999 parameter files (65535 points per file)
Control Method LCD Panel handheld programmer
Motoring System Servo
Dispensing Mode 4-axis : point-to-point, continuous line, arc, 3D curve, etc.
I/O 1 input/4 output (support expansion)
Power Supply AC220V 50/60Hz 1.5KW
Working Environment Temperature : 0-40°C, humidity : 20-90%
Machine Weight 80kg (est.)
View full details

FAQ

Can the SEC-E380S-W be integrated with other equipment?

Yes, the SEC-E380S-W can be integrated with other automation equipment, such as robotic arms or conveyor systems, for enhanced production capabilities.

What materials can be used with the SEC-E380S-W?

The SEC-E380S-W is compatible with a variety of materials, including adhesives, sealants, solder paste, flux, and other viscous substances.

What maintenance is required for the SEC-E380S-W?

Cleaning: Regularly clean the dispensing nozzle and material contact parts to prevent clogging and contamination.
Inspection: Periodically inspect the machine for wear and tear and replace any worn parts.
Calibration: Ensure the machine remains calibrated to maintain accuracy.

How do I use the SEC-E380S-W?

Load Material: Fill the dispensing syringe or cartridge with the material to be dispensed.
Set Parameters: Enter the dispensing parameters (e.g., volume, time, pattern) using the control panel.
Position Nozzle: Align the dispensing nozzle with the target area.
Start Dispensing: Activate the machine to start the dispensing process.
Monitor: Observe the process to ensure accurate dispensing and make adjustments as needed.
