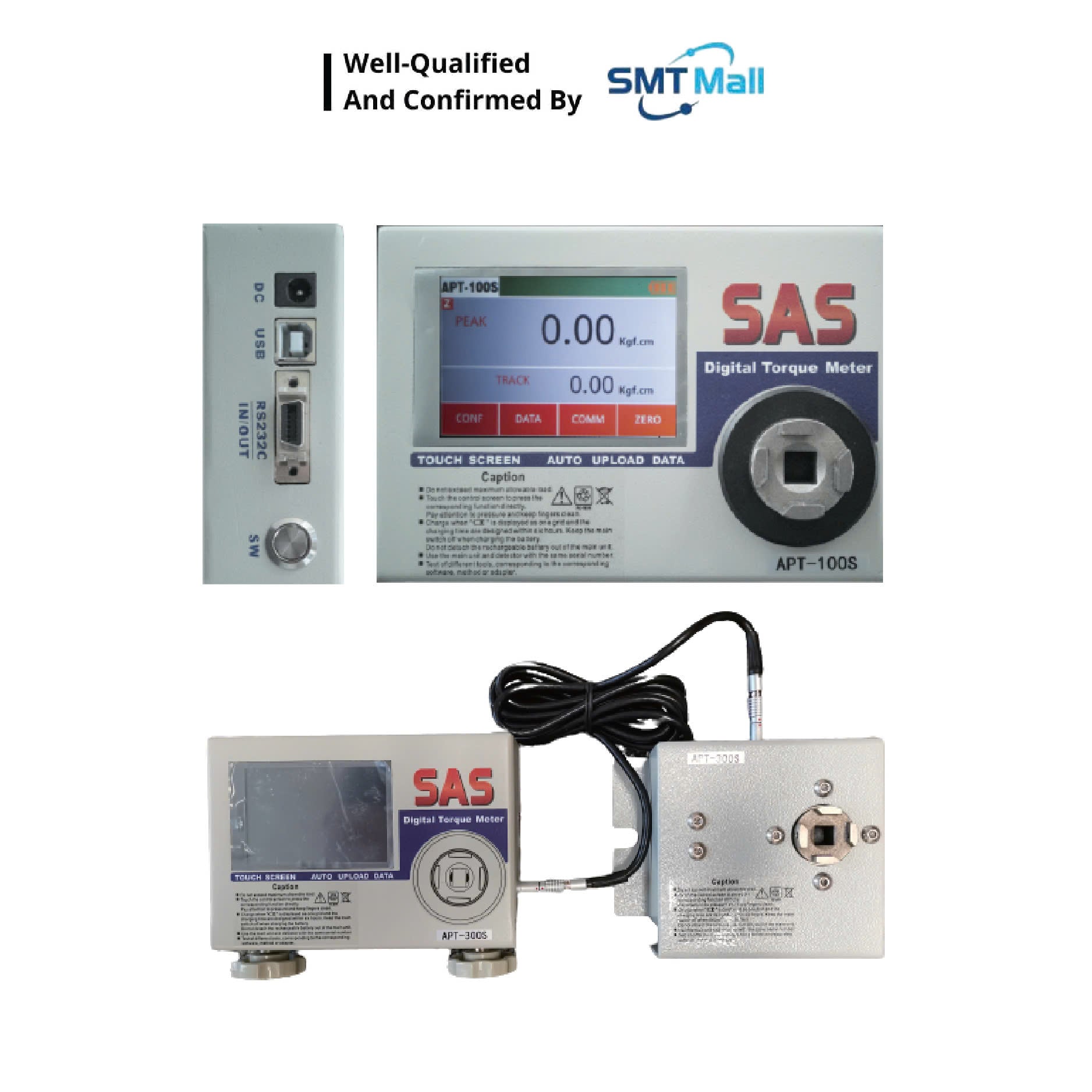

SAS digital torque meter APT-10s
SAS digital torque meter APT-10s
● Mobel: 1150D
● MOQ : 1 set
● Packing details:
● Subject to discussion:
Couldn't load pickup availability
The SAS APT-10S is a professional-grade digital torque tester featuring a 4.2″ color touch screen, designed for high-accuracy torque measurement and verification in precision manufacturing environments. Part of the SAS APT Series, it delivers a torque range of 0.015 to 1.000 N·m with ±0.5% full-scale accuracy, making it ideal for setting and verifying torque tools including electric screwdrivers, pneumatic screwdrivers, and torque wrenches.
The APT-10S supports Peak, Track, and Torque Curve (Graph) measurement modes, built-in OK/NG pass/fail judgment, and standard PC software for data logging and torque curve analysis. Its rechargeable NiMH battery, multiple communication interfaces (USB, RS-485, Wi-Fi), and CM/CMK statistical output make it a comprehensive solution for production quality management.
Key Features
| Key Feature | Description |
| 4.2″ Color Touch Screen | Full-color touchscreen for setup, configuration, and real-time display of torque measurements. |
| High Accuracy | ±0.5% (F.S.) or ±0.005 kgf·cm — provides reliable and repeatable measurement results. |
| Multiple Measurement Modes | Peak / Track / Graph (Torque Curve) — covers all common torque testing scenarios. |
| OK/NG Judgment | Built-in pass/fail function with preset high/low torque limits for fast production QC. |
| Data Storage | 1,000 readings stored on device; unlimited storage when connected to PC via standard software. |
| PC Software Included | Standard PC software for real-time monitoring, data logging, and torque curve analysis. |
| Versatile Communication | USB standard; optional RS-232C/485 (RTU) (Non-Concurrent) / Wi-Fi connectivity. |
| CW & CCW Detection | Supports both clockwise and counter-clockwise torque measurement. |
| Rechargeable Battery | NiMH 2500 mAh rechargeable battery for portable, cord-free operation. |
| Multiple Torque Units | Supports kgf·cm / gf·m / N·m / cN·cm / Lbf·in / Lbf·ft for international compatibility. |
| Power Saving Mode | Automatic power saving to extend battery life in continuous production use. |
| CM/CMK Statistical Output | Displays process capability metrics CM and CMK for quality management compliance. |
Technical Specifications
| Specification | Details |
| Model | APT-10S |
| Series | APT Series (4.2″ Color Touch Screen Torque Tester) |
| Manufacturer | SAS Power Tools Inc (好幫手® SAS) |
| Display | 4.2″ Color Touch Screen |
| Accuracy | ±0.5% (F.S.) or ±0.005 kgf·cm |
| Minimum Load | 0.015 N·m / 0.15 kgf·cm / 0.15 Lbf·in |
| Maximum Load | 1.000 N·m / 10.00 kgf·cm / 9.00 Lbf·in |
| Resolution | 0.001 N·m |
| Measurement Modes | Peak / Track / Graph (Torque Curve) |
| Judgment Function | OK / NG (Pass / Fail with High/Low limits) |
| Communication (Standard) | USB |
| Communication (Optional) | RS-232C / RS-485 (RTU) (Non-Concurrent) / Wi-Fi |
| Data Storage (Device) | 1,000 readings |
| Data Storage (PC) | Unlimited (with included PC software) |
| Torque Units | kgf·cm / gf·m / N·m / cN·cm / Lbf·in / Lbf·ft |
| Rotation Direction | CW (Clockwise) & CCW (Counter-clockwise) |
| Battery | Rechargeable NiMH @ 2500 mAh |
| Charger Input | 100–240 Vac (50/60 Hz) |
| Charger Output | 9 Vdc |
| Additional Features | Power Saving Mode, CM/CMK Statistical Output |
| Condition | New |
Applications
- Electric screwdriver and torque wrench calibration and verification
- SMT and PCB assembly line torque tool QC
- Consumer electronics and mobile device manufacturing
- Medical device and precision instrument assembly
- Automotive component tightening verification
- Semiconductor and microelectronics production
- Quality management and process capability (CM/CMK) analysis
- Production line torque monitoring and data logging
Advantages
- Large 4.2″ color touchscreen enables easy setup and clear real-time data visibility on the production floor
- High accuracy (±0.5% F.S.) ensures reliable torque tool calibration and QC verification
- Three measurement modes (Peak, Track, Graph) cover diverse testing requirements
- Built-in OK/NG judgment accelerates pass/fail decisions in high-volume production
- PC software with torque curve display supports in-depth analysis and process documentation
- Multiple communication options (USB, RS-485, Wi-Fi) integrate with various factory data systems
- Rechargeable NiMH battery enables portable, cord-free field use
- CM/CMK output supports SPC and quality management system (QMS) compliance
- Wide range of torque units ensures compatibility with global standards
