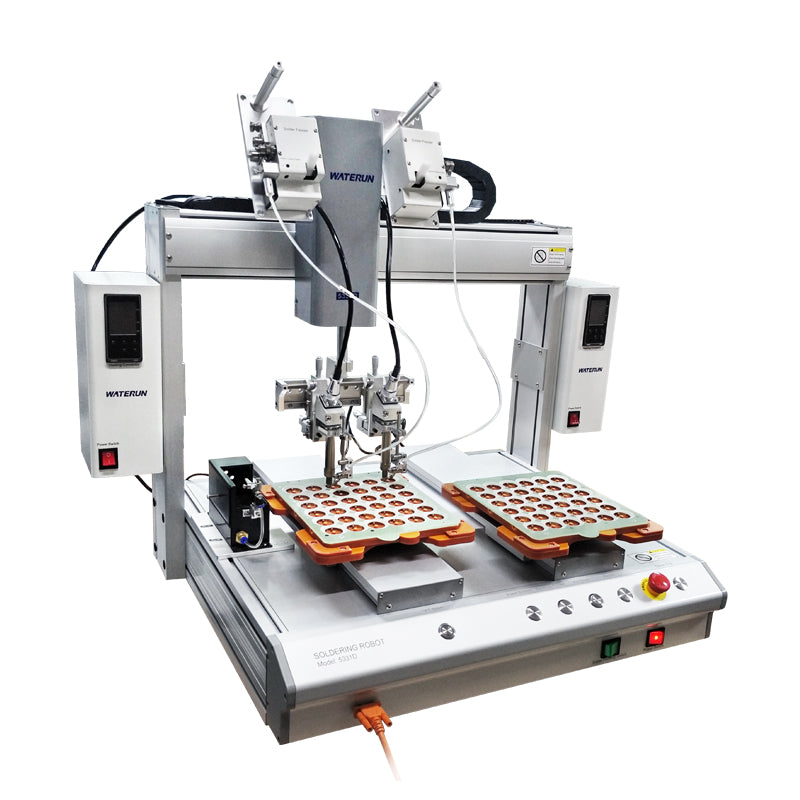

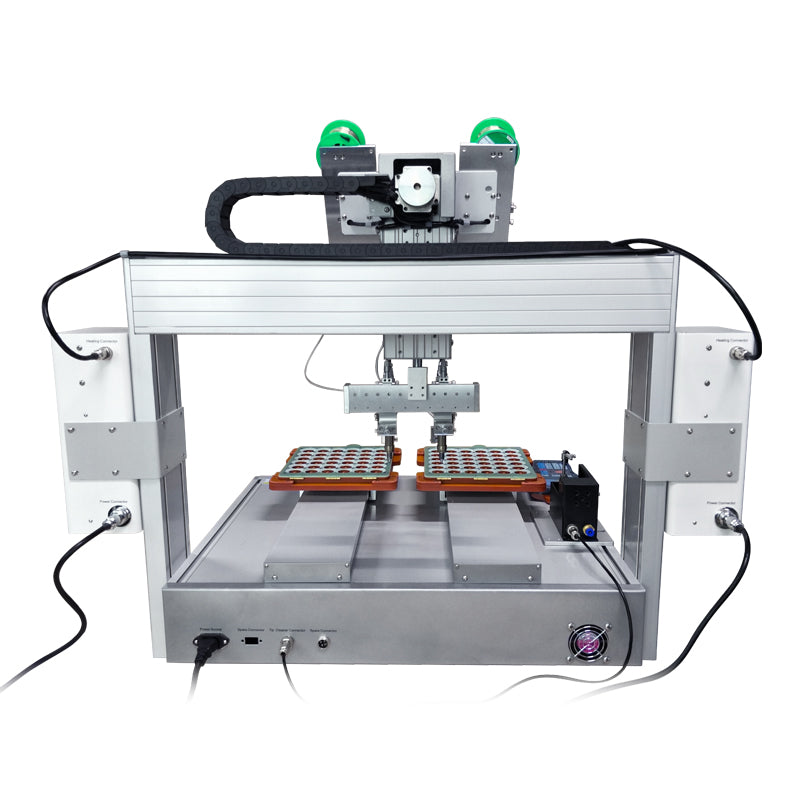

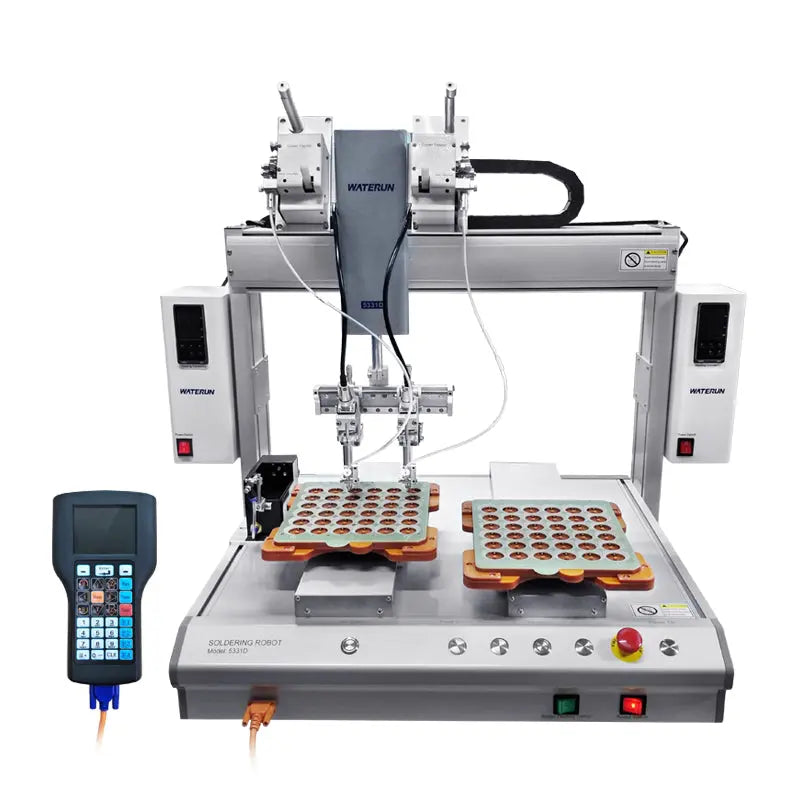

S5331-Double Soldering Robot

S5331-Double Soldering Robot

$5,070.00
$5,070.00
EXW China
SAVE $-5,070 Sold out

● Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

Starobot Soldering Robot:

Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.

Specifications:

Model
S5331D
Solder Joint Range
X500* Y1/300*Y2/300*Z100mm（XxYxYxZ）
Solder Time
1.0~1.5s/point
Repeat Positioning Accuracy
±0.002mm
Solder Wire Diameter
0.5, 0.6, 0.8, 1.0, 1.2 (mm)
Air source
0.4-0.6 MPA
Axis
           4
Program Capacity
999 files, each file can save up to 999 points
External Dimensions (WxDxH)
820mm x 600mm x 800mm
Weight
about 65kgs

















Features:
  1. High power heating controller ensures the tip temperature to reach 350°C within 30 seconds.

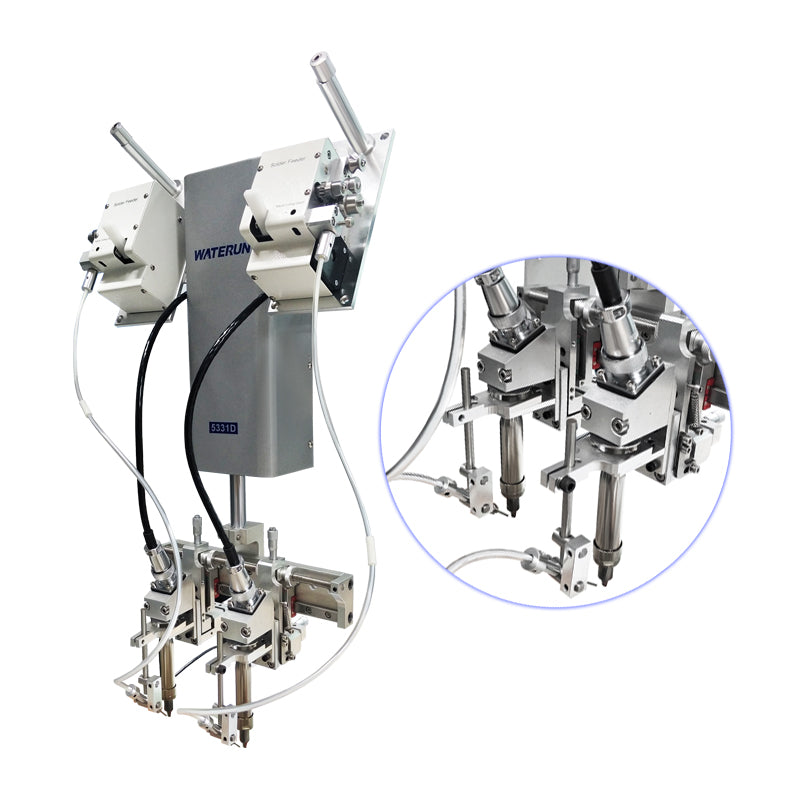

  2. With the sleeve design, the soldering tip can be replaced quickly and easily.
  3. Intelligent solder feeding mode, parameters can be set freely.
  4. Automatic tip cleaning function by airflow cleaning, the residual dross on the tip can be blown off easily.

View full details

FAQ

What should I do if the S5331-Double is not turning on?

Ensure the power cord is securely plugged in and the outlet is functioning. Check the power switch and inspect the power supply for any issues.

How do I clean the S5331-Double?

Clean the exterior with a dry cloth and ensure the soldering tips are free from oxidation and debris. For detailed cleaning instructions, refer to the user manual.

How often should the S5331-Double be maintained?

Regular maintenance includes cleaning the soldering tips, checking the solder wire feeders, and ensuring all moving parts are lubricated. It is recommended to perform maintenance checks monthly.

How do I operate the S5331-Double?

To operate the S5331-Double, power on the unit, load the solder wire, set the desired temperature and soldering parameters via the touch screen interface, and start the automated soldering process. Ensure all safety protocols are followed.
