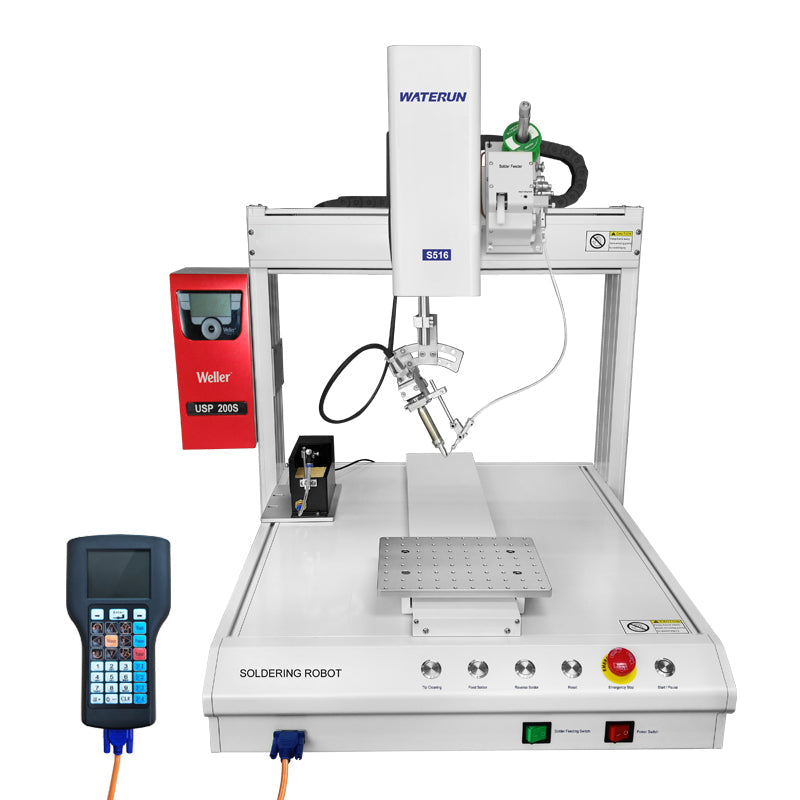

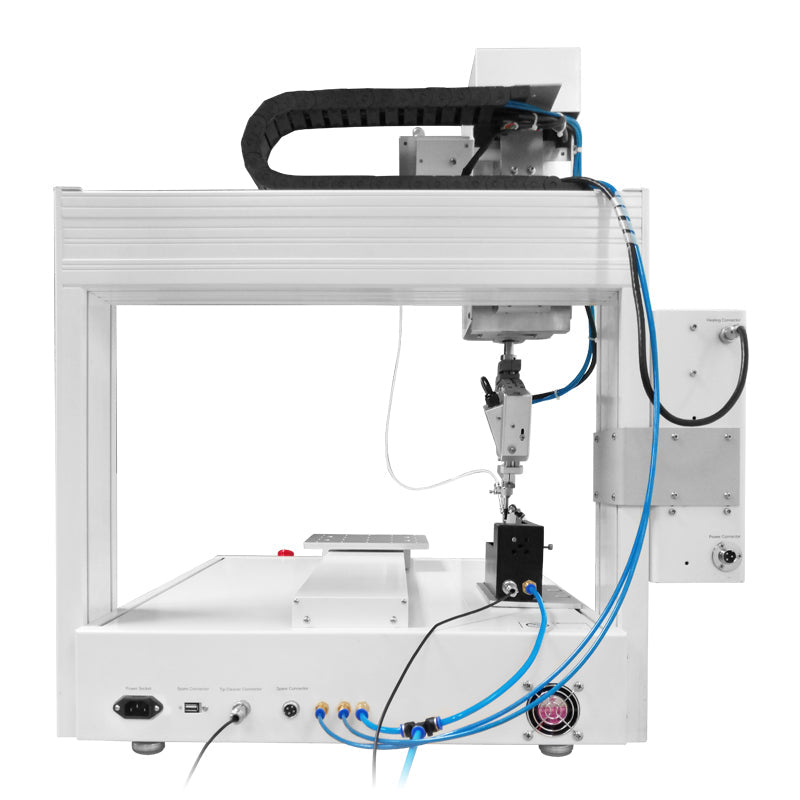

S516 Soldering Robot

S516 Soldering Robot

Regular price $0.00
Regular price $0.00 Sale price
EXW China
SAVE $0 Sold out

Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

Starobot Soldering Robot:

Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.

Specifications:
Model
S516
Voltage
110V / 220V
Heating Power
150W
Preheating Temperature Range
0℃~500℃
Axis
4
Operating Range (X * Y * Z)
400 x 400 x 100mm
Movement Speed
X * Y Axis: 0.1~600mm/sec, Z Axis :0.1~400mm/sec
Repeat Positioning Accuracy
±0.002mm
Resolution
0.01mm
Maximum Load Weight
8kg (for work platform)

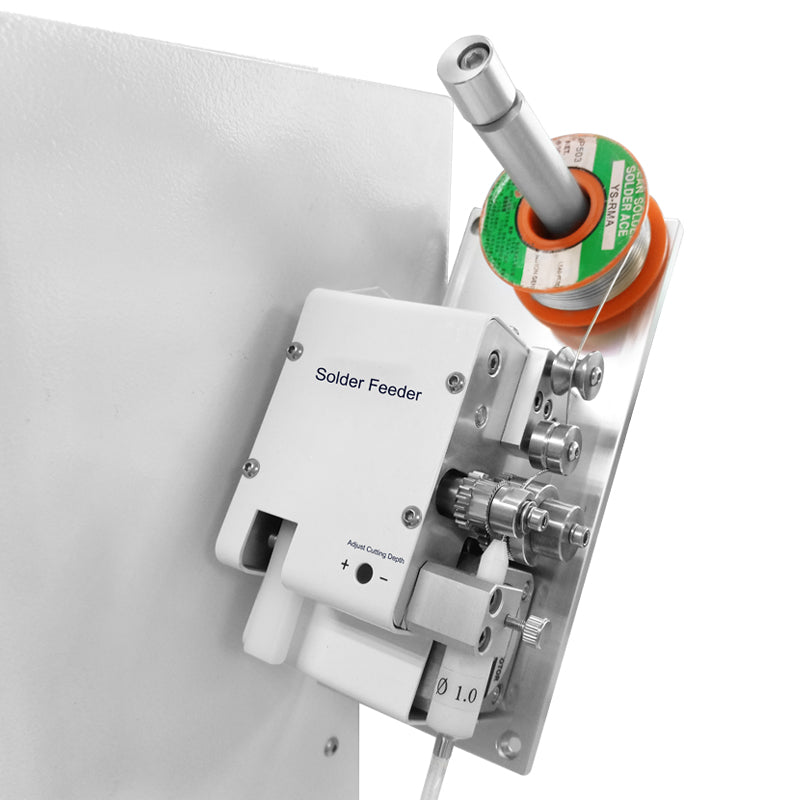

Solder Wire Diameter
0.5, 0.6, 0.8, 1.0, 1.2 (mm)
Demo File Capacity
≤999files, max 1994 points for each file
Program Capacity
max 255 programs
Operate Temperature
0℃~40℃
Operate Humidity
20~90%
External Dimensions
720mm x 700mm x 810mm
Weight
about 66kgs




























Features:



1. Applicable for different products, soldering temperature can be set  freely.

2. The solddering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.

3.  Numerically controlled temperature (static air condition: ±1℃)

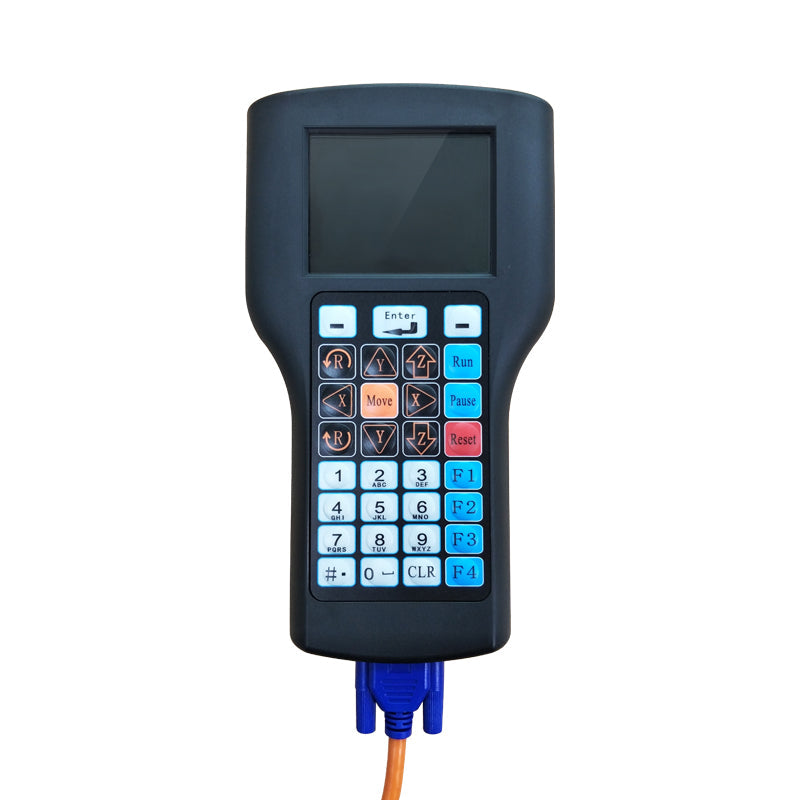

4. With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.

5. In the soldering process, the solder tip has rapid heat recovery and a long life span.

View full details

FAQ

What are the key features of the S516 soldering robot?

The S516 soldering robot is designed to offer precision, efficiency, and flexibility in soldering applications. Some of its key features include:

High precision: Advanced control systems ensure accurate placement and soldering of components.
Versatility: Capable of handling a wide range of component sizes and board types.
User-friendly interface: Intuitive programming and operation for quick setup and changeovers.
Robust construction: Built to withstand demanding production environments.
Integration capabilities: Easily integrates with existing production lines and automation systems.

How does the S516 improve productivity in soldering processes?

The S516 soldering robot significantly enhances productivity by:

Reducing cycle times: Automated soldering reduces manual labor and speeds up production.
Minimizing defects: Consistent soldering quality leads to fewer rework and scrap.
Improving product quality: Precise component placement and soldering enhance overall product reliability.
Enabling lights-out production: Automated operation allows for continuous production without human intervention.

What industries and applications is the S516 soldering robot suitable for?

The S516 is a versatile robot suitable for a wide range of industries, including:

Electronics manufacturing: PCB assembly, SMT, and through-hole soldering.
Automotive: Wiring harness assembly, sensor mounting, and connector soldering.
Medical devices: Miniaturized component soldering and assembly.
Aerospace: High-precision soldering for critical components.
Consumer electronics: Mass production of electronic gadgets.
