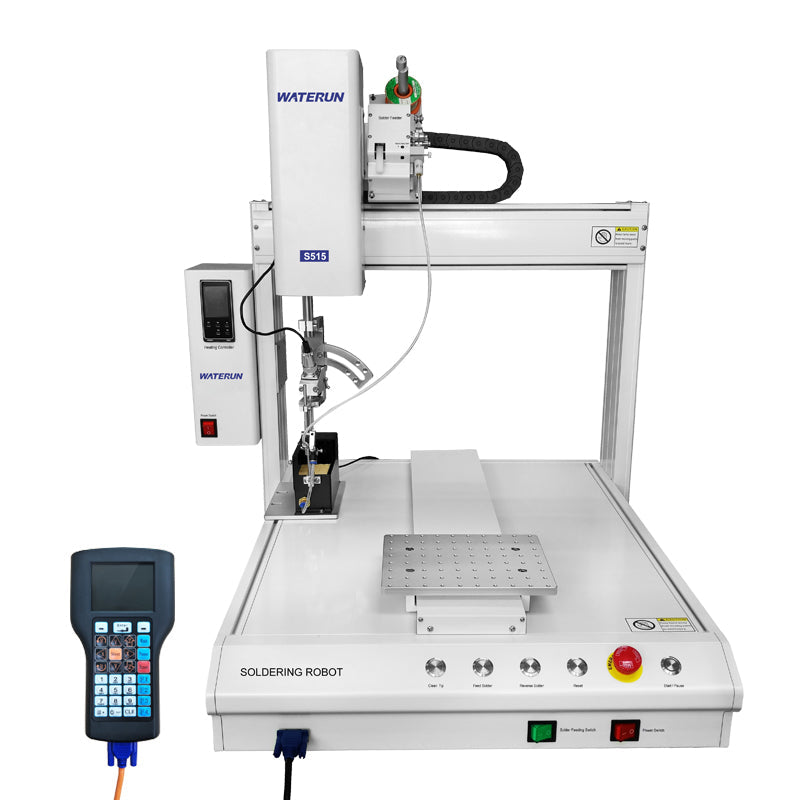

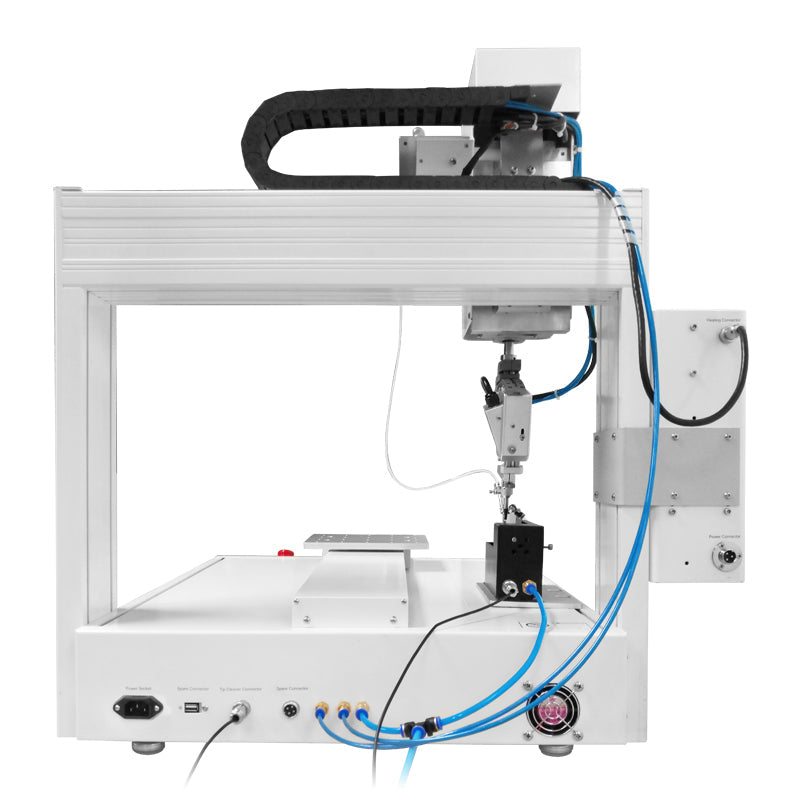

S515 Soldering Robot

S515 Soldering Robot

Regular price $0.00
Regular price $0.00 Sale price
EXW China
SAVE $0 Sold out

Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

Starobot Soldering Robot:

Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.

Features:

1. Applicable for different products, soldering temperature can be set  freely.

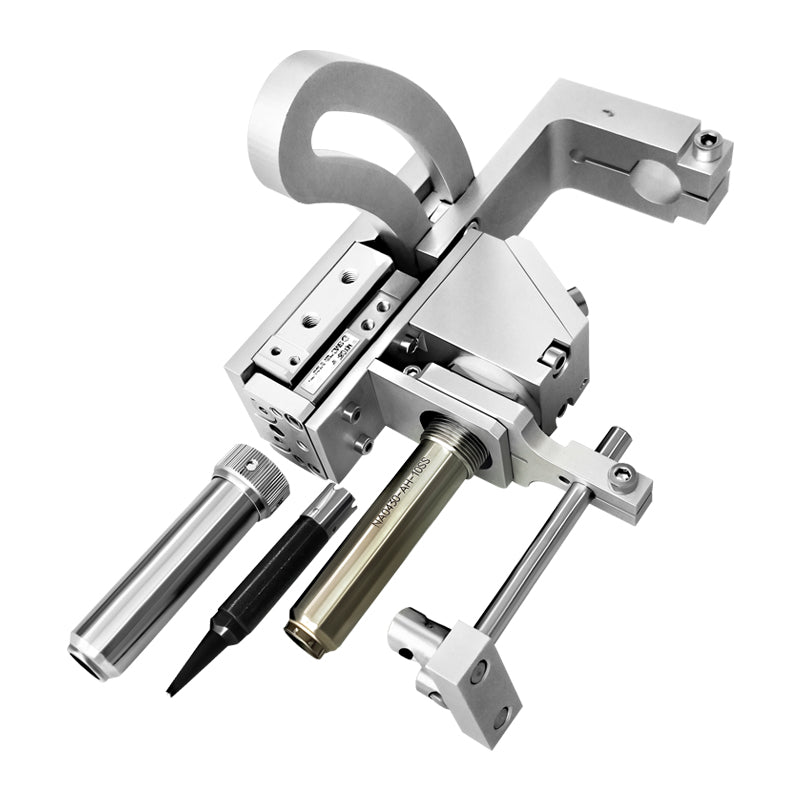

2. The solddering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.

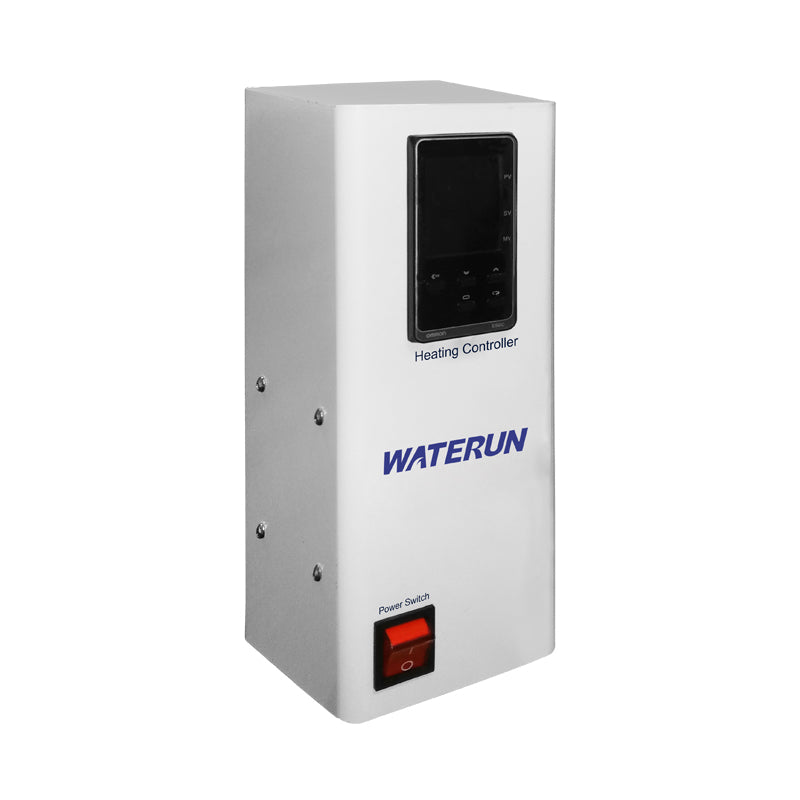

3.  Numerically controlled temperature (static air condition: ±1℃)

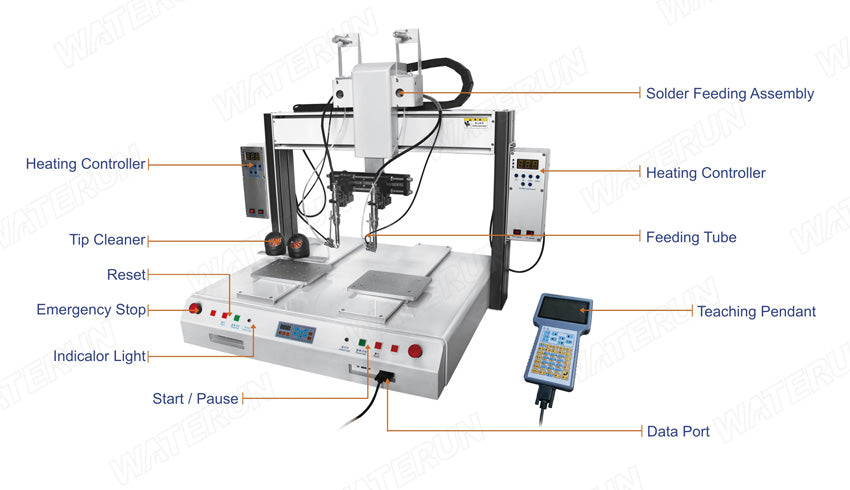

4. With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.

5. In the soldering process, the solder tip has rapid heat recovery and a long life span.

Specifications:
Model
S515
Voltage
110V / 220V
Heating Power
200W
Preheating Temperature Range
0℃~500℃
Axis
4
Operating Range (X * Y * Z)
400 x 400 x 100mm
Movement Speed
X * Y Axis: 0.1~600mm/sec, Z Axis :0.1~400mm/sec
Repeat Positioning Accuracy
±0.002mm
Resolution
0.01mm
Maximum Load Weight
8kg (for work platform)
Solder Wire Diameter
0.5, 0.6, 0.8, 1.0, 1.2 (mm)
Demo File Capacity
≤999files, max 1994 points for each file
Program Capacity
max 255 programs
Operate Temperature
0℃~40℃
Operate Humidity
20~90%
External Dimensions
720mm x 700mm x 810mm
Weight
about 66kgs
View full details

FAQ

What are the key benefits of using the S515 soldering robot for my production line?

The S515 soldering robot offers a number of advantages to enhance your production efficiency and product quality, including:

Enhanced precision: The robot's advanced control system and high-resolution vision system ensure precise component placement and soldering, even for the smallest and most complex components.
Increased productivity: By automating the soldering process, the S515 can significantly reduce cycle times and improve overall output.
Improved consistency: The robot's consistent performance results in uniform solder joints and fewer defects, leading to higher product quality and reliability.
Flexibility: The S515 can be easily programmed to handle a wide range of products and components, making it adaptable to changing production requirements.

How does the S515 compare to other soldering robots on the market?

The S515 stands out from other soldering robots due to its:

Advanced vision system: The robot's high-resolution camera and sophisticated image processing algorithms enable it to handle components with varying sizes and orientations with greater accuracy.
User-friendly interface: The intuitive software makes it easy for operators to program and operate the robot, reducing training time.
Modular design: The modular construction allows for easy customization and integration with existing production lines.
Robustness: The S515 is built to withstand the rigors of industrial environments and provide long-term reliability.

What industries and applications is the S515 soldering robot suitable for?

The S515 is a versatile robot that can be applied in a wide range of industries, including:

Electronics manufacturing: Assembly of PCBs, SMT, and through-hole soldering.
Automotive: Wiring harness assembly, sensor mounting, and connector soldering.
Medical devices: Miniaturized component soldering and assembly.
Consumer electronics: Mass production of electronic gadgets.
