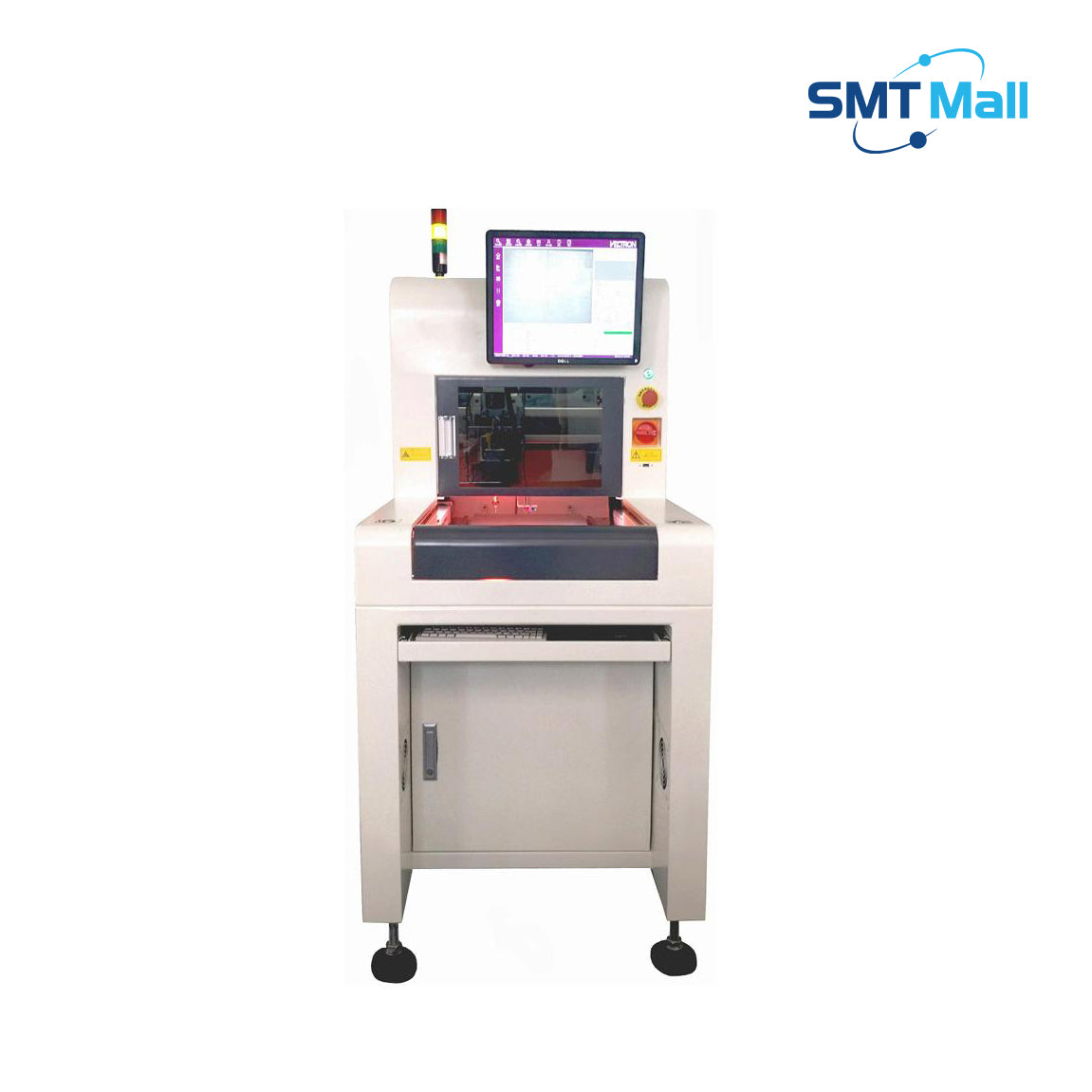

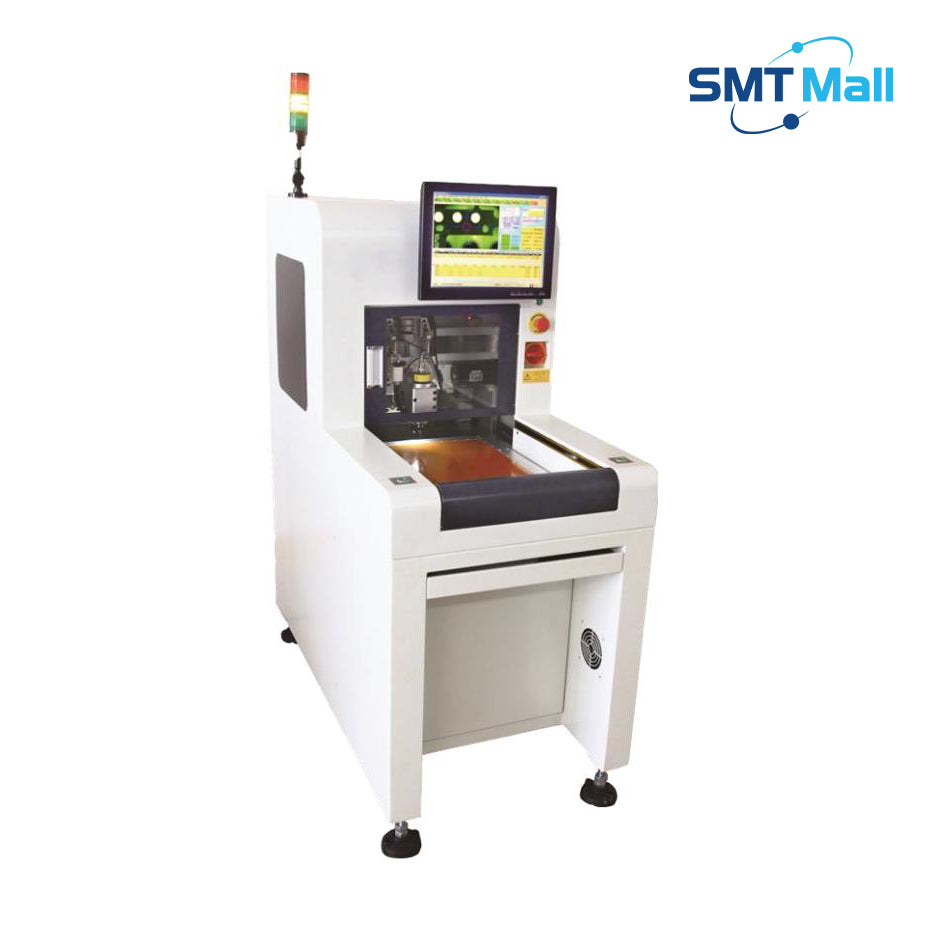

R-450M PCB Router Machine

R-450M PCB Router Machine

● Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

The R-450M PCB Router Machine is a high-speed router system designed to separate multi-piece PCBs along programmed cutting paths with high precision and stable performance.
It is widely used in electronics manufacturing applications such as digital products, communication equipment, and lighting products, helping improve cut quality while reducing scrap compared with manual folding, V-CUT, and stamping methods.
With its modular structure, CCD vision positioning, self-developed control software, and integrated dust collection design, the R-450M is built for efficient PCB depaneling in modern production environments.

Overview

The R-450M PCB Router Machine is a high-speed router system designed to separate multi-piece PCBs along programmed cutting paths with high precision and stable performance.
It is widely used in electronics manufacturing applications such as digital products, communication equipment, and lighting products, helping improve cut quality while reducing scrap compared with manual folding, V-CUT, and stamping methods.
With its modular structure, CCD vision positioning, self-developed control software, and integrated dust collection design, the R-450M is built for efficient PCB depaneling in modern production environments.

Key Features and Technologies

  • High-speed routing performance with a high-speed drive platform and spindle, designed for efficient PCB separation in quality-focused production lines.
  • High-precision CCD vision system with auto position correction and Mark-based positioning to improve routing accuracy during operation.
  • Modular servo control and modular electronic control architecture for stable motion, easier troubleshooting, convenient maintenance, and future upgrades.
  • Tool life management that automatically adjusts Z position to use more of the router bit, helping extend cutter life and reduce consumable cost.
  • Built-in bottom suction design with optional internal or external vacuum configurations for better dust removal, lower noise, and reduced space usage.
  • Self-diagnostic alarm system that helps operators quickly identify faults and reduce downtime.
  • Safety light curtain protection that automatically stops the machine if the protection area is interrupted during operation.
  • User-friendly software with keyboard-guided CCD programming, automatic navigation, short changeover time, and free software updates.
  • Flexible installation because the machine can be moved to different production lines, and the brochure states the system does not require an external exhaust duct in standard use.

Technical Specifications



Item Specification
Model R-450M
Machine dimensions 650 × 1250 × 1365 mm (L × W × H), excluding anchor and light tower
Weight About 450 kg
Work table size 390 × 560 mm +1
Max routing size 310 × 480 mm +1
Repeat accuracy ±0.02 mm
Routing accuracy ±0.02 mm
Drive system X/Y/Z three-axis servo motor control
Routing spindle 60,000 rpm, automatic cooling
Routing speed 1–100 mm/s
Moving speed 800 mm/s
Milling cutter size Φ0.8–3.0 mm, left-hand cutter
Monitor 17-inch Dell monitor +1
Dust collection Bottom suction; external vacuum or built-in vacuum optional
Vacuum power 0.75 kW
Power supply AC220V, 2.2 kW
Air pressure 0.3–0.7 MPa



Applications

The R-450M is suitable for PCB depaneling and routing in electronics manufacturing lines that require precise, clean, and repeatable board separation.
According to the manual and brochure, it is used in digital electronics, communication products, lighting products, and similar PCB-based assemblies.
The brochure also indicates compatibility guidance for normal PCB, aluminum PCB, and iron PCB with different cutter diameter ranges and minimum product gap suggestions, making the machine adaptable to multiple board materials and production needs.
