R-350M Series Module Router

Key Features

• Modular Offline Design:

Standalone offline router with modular fixture system — quickly adapts to different PCB panel formats without complex retooling.

• High-Speed Precision Spindle:

High-RPM spindle ensures smooth, burr-free cuts along tab-routed and contoured PCB profiles with minimal mechanical stress on components.

• Built-In Vacuum Dust Collection:

Integrated vacuum system captures FR4 dust and debris at source — maintaining a clean working environment and protecting sensitive components.

• Programmable XY Routing Path:

CNC-controlled XY motion system allows precise, repeatable routing paths to be programmed for each PCB panel design.

• Stress-Free Depaneling:

Router cutting method eliminates the bending and shear stress associated with V-cut separators — ideal for densely populated or fragile PCBs.

• Compact Footprint:

Space-efficient machine frame suitable for integration into existing SMT production floor layouts.

• Easy Parameter Setup:

User-friendly control interface for straightforward spindle speed, feed rate, and routing path configuration.

Product Description

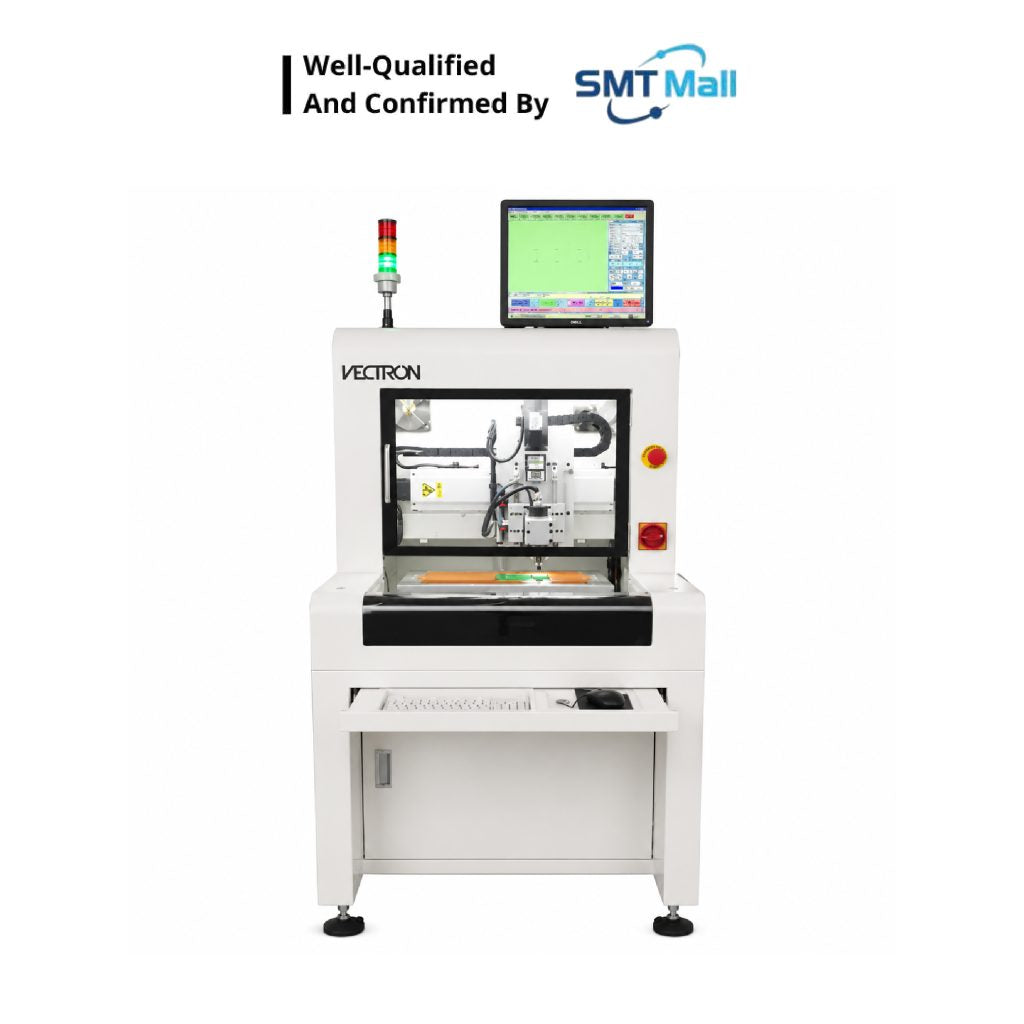

The R-350M Series Module Router from Vectron-Tech is purpose-built for offline PCB depaneling applications in SMT electronics assembly lines. It operates on a CNC-controlled XY table system, allowing operators to program custom routing paths that precisely follow the tab or contour profile of each PCB panel design. Once programmed, the machine delivers consistent, repeatable separations cycle after cycle — reducing operator dependency and minimising the risk of board damage.

Unlike V-cut depaneling machines that use shear blades, the R-350M uses a rotating router bit to cut along the board edge. This method produces significantly less mechanical stress on the PCB and its components, making it the preferred choice for boards with taller components close to the cut line, fine-pitch BGAs, or fragile solder joints.

The integrated vacuum dust extraction system draws FR4 fibreglass dust away from the cutting zone immediately, keeping both the machine internals and the PCB surface clean during operation. The modular fixture design allows the machine to accommodate a range of PCB panel sizes, and fixtures can be swapped between product runs with minimal changeover time.

Powered by AC 380V 3-phase supply and weighing approximately 200 kg, the R-350M is a robust production-grade machine designed for long-term industrial use. It is suitable for manufacturers of consumer electronics, industrial control boards, automotive electronics, and LED panels who require a reliable offline depaneling solution.

Technical Specifications

Compatible Applications & Industries

The R-350M Series Module Router is ideal for depaneling:

• Consumer electronics PCBs — smartphones, tablets, wearables
• Industrial control boards and automation electronics
• Automotive electronics and in-vehicle control modules
• LED driver boards and lighting panels
• Medical device circuit boards requiring clean, stress-free separation
• IoT modules, communication boards, and sensor arrays
• Any tab-routed or contour-cut PCB panel where V-cut separation is not suitable

Why Choose the R-350M?
