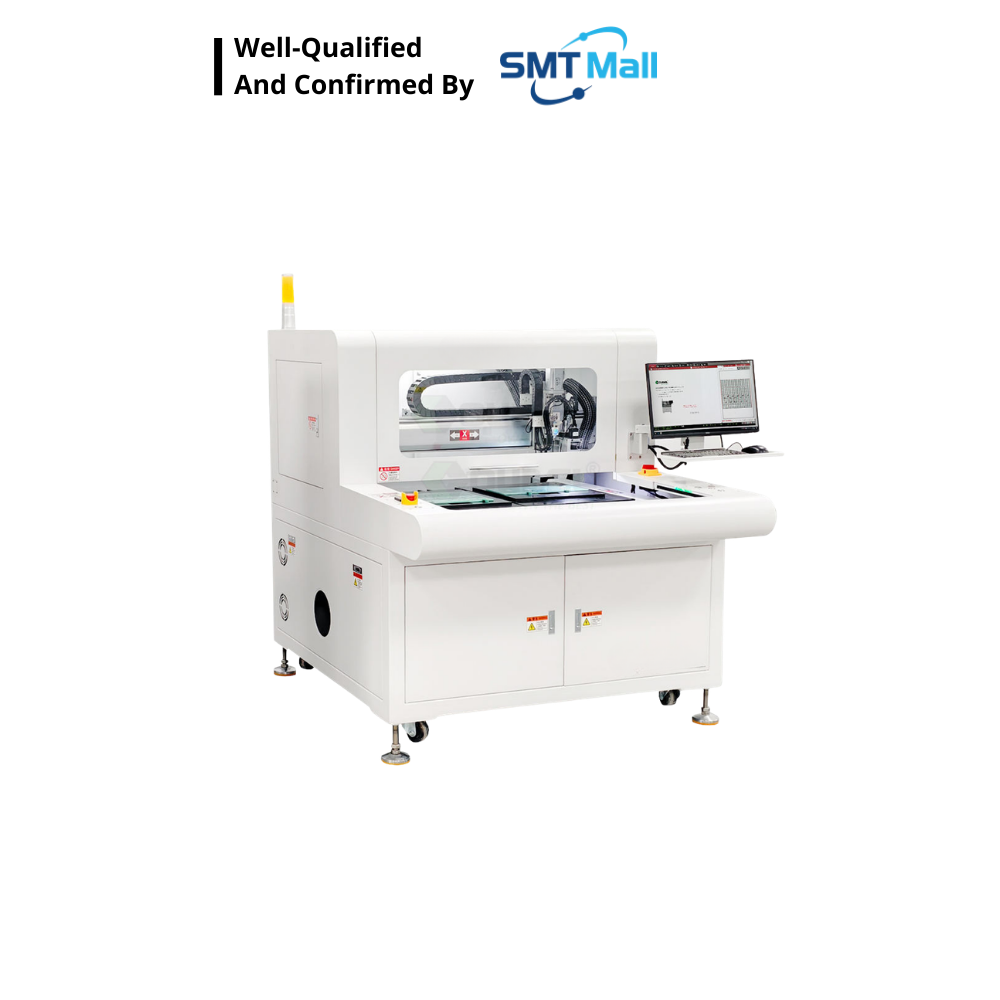

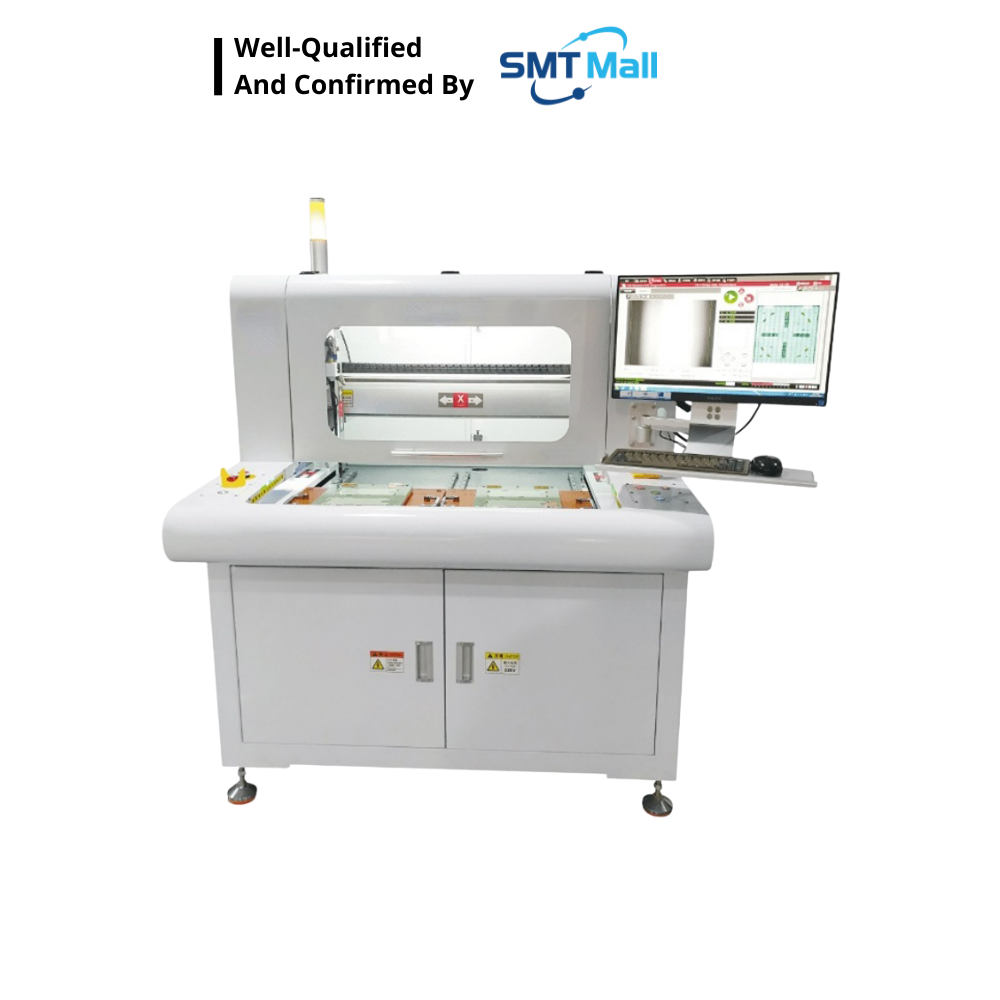

R-350M Offline Single-spindle PCBA Milling Cutter Separator Router
R-350M Offline Single-spindle PCBA Milling Cutter Separator Router
● Mobel: 1150D
● MOQ : 1 set
● Packing details:
● Subject to discussion:
Couldn't load pickup availability
Product overview Offline PCB Router
The Offline PCB Router Machine is a high-precision depaneling solution designed to meet the demands of modern SMT and electronics assembly lines. Equipped with an advanced CCD vision system and high-speed spindle, this machine ensures accurate, stress-free PCB cutting for a wide range of applications.
Its dual working platform allows for simultaneous processing of different boards, improving productivity and flexibility in high-mix, low-volume production environments. The real-time cutter monitoring sensor prevents tool wear and cutting errors, ensuring consistent quality and longer tool life.
With a dedicated CNC control system, efficient vacuum dust collection, and user-friendly operation interface, this router delivers exceptional stability, precision, and reliability—ideal for manufacturers who demand consistent results and maximum efficiency.
Technical specifications
| Item | Specification |
| PCB Size (Double platform, Special size optional) | 340 × 380 mm |
| PCB thickness | 0.5–5.0 mm |
| Weight (with vacuum cleaner) | 1000 kg |
| Dimension | 1290 × 1100 × 1437 mm |
| Dust Collection Method | Vacuum cleaning |
| Air volume of vacuum cleaner | 28–35 m³/min |
| Vacuum cleaner Dimension | 640 × 785 × 1760 mm |
| Voltage of the Dust Collector | 380V, 50/60Hz, 3kW |
Applications
SMT and Electronics Assembly Lines: Suitable for offline depaneling of assembled PCBs with high precision and low stress.
PCBs with Complex Shapes: Ideal for boards that cannot be depaneled using traditional V-cut or punching methods.
Prototype and Small Batch Production: Supports quick setup and flexible cutting paths for various board designs.
High-Value and Sensitive Components: Reduces mechanical stress to protect delicate components during cutting.
Telecommunications, Automotive, Industrial Control, Consumer Electronics, and LED Industries: Ensures smooth, clean separation for products requiring tight tolerances and high reliability.
