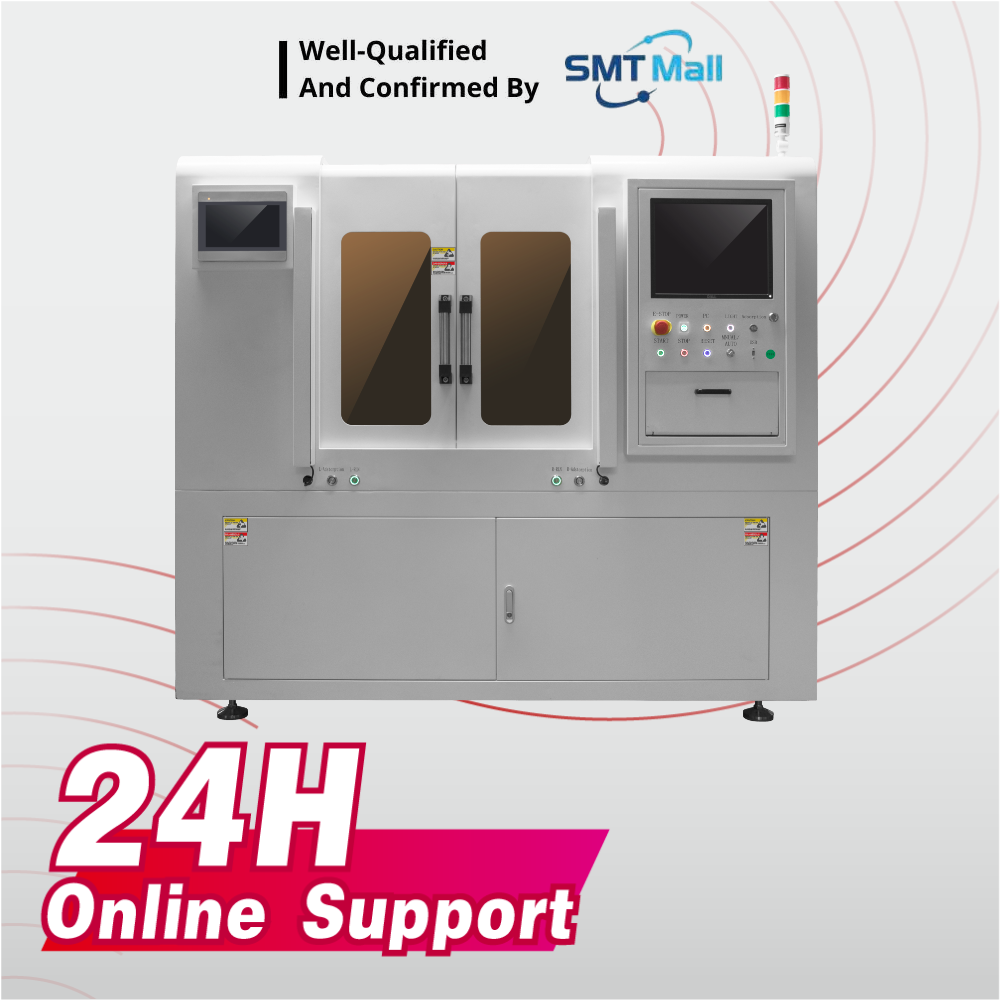

PCB Laser Precision Cutting Machine
PCB Laser Precision Cutting Machine
● Mobel: 1150D
● MOQ : 1 set
● Packing details:
● Subject to discussion:
Couldn't load pickup availability
Product overview PCB Laser Cutting Machine
The Laser PCB Depaneling Machine is an advanced, high-precision system designed to deliver non-contact, stress-free PCB cutting for today’s high-density electronic assemblies. Using a high-speed laser system with automatic focusing and CCD visual positioning, it ensures micron-level accuracy without causing mechanical stress or damage to components.
Engineered for full automation and MES integration, the machine supports barcode reading, real-time data upload, and automatic product recognition. Its dynamic zoom, multi-color vision illumination, and user-friendly cutting software make it suitable for a wide range of PCB types and materials. Built with strict anti-static protection and safety interlock systems, this laser depaneling solution offers exceptional reliability, safety, and process control for modern SMT production lines.
Technical specifications
| Item | Specification |
| Laser Type | Green laser |
| Laser Power | 35W |
| Platform Range | 300 × 300 mm double table |
| Adapt to Product Thickness (mm) | MAX 1.5 mm |
| Maximum Speed of Platform | 1000 mm/s |
| Maximum Cutting Speed (mm/s) | ≥200 mm |
| Positioning Accuracy | ±0.005 mm |
| Repeatability | ±0.005 mm |
| Cutting Accuracy | ±0.025 mm |
| Power | AC220V/50Hz, 3KW |
| Weight | 3200 kg |
| Dimensions | L1600 × W1300 × H1800 mm |
Applications
SMT and Electronics Manufacturing: Ideal for depaneling assembled PCBAs with precision and minimal stress.
Consumer Electronics & Automotive Electronics: Suitable for thin, complex, and high-value circuit boards.
5G Communication Devices & IoT Modules: Supports fine-pitch PCB cutting with high repeatability.
Medical Electronics & Industrial Control: Ensures clean, burr-free edges for sensitive and mission-critical applications.
Smart Factory Integration: Seamlessly connects with MES/ERP systems for real-time monitoring, traceability, and data management.
