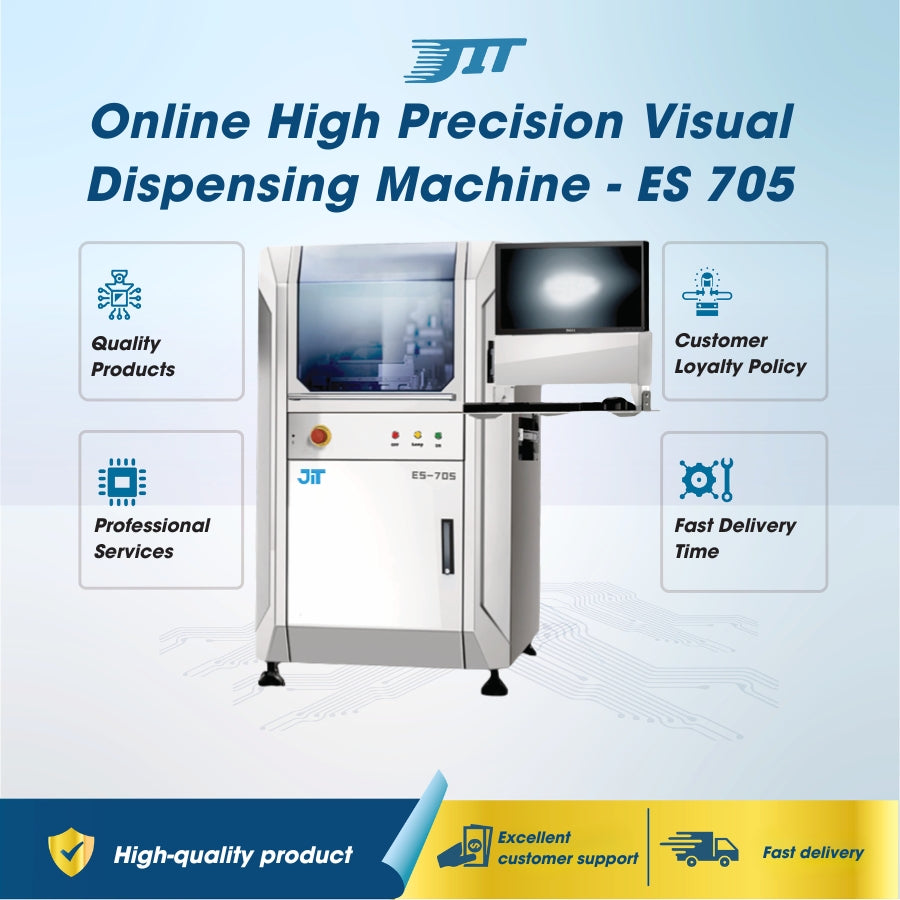

Online High Precision Visual Dispensing Machine

Online High Precision Visual Dispensing Machine

Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

1. Introduction to ES-705

The ES-705 dispensing machine is an advanced device that utilizes cutting-edge visual recognition technology to automate the dispensing process with high precision. This machine plays a crucial role in the production of electronic components, LCD modules, camera modules, TWS headsets, FPC boards, and various other industrial applications.

2. Technical Specifications of ES-705

Specification Value
Machine Dimensions 77012001400mm
Machine Weight About 650kg
Power Supply AC220V 50/60HZ 3KW
Air Pressure Demand ≥ 0.6Mpa
Control Mode PC
Certification CE

3. Key Features of ES-705

High Accuracy

✅ Supports 2D/3D visual recognition for precise unit identification and edge grasping.
✅ Multi-point valve calibration ensures global accuracy within the dispensing range.
✅ Weight or density-based dispensing control guarantees consistent glue quantity.

High Efficiency

✅ Supports program duplication across multiple machines, saving batch conversion time.
✅ Allows CAD data import to reduce programming time.

Operational Flexibility

✅ Synchronization with MES systems and AOI functionality for streamlined operations.
✅ Integrated with modules for real-time photo capturing, dynamic dual-valve synchronization, and tilting motion.
✅ Compatible with various valve types, supporting dual-valve and double rails, significantly enhancing production efficiency.

4. Outstanding Benefits of ES-705

Benefit Detailed Description
Dynamic synchronized dual-valve dispensing Maintains stable glue flow throughout the process
Visual recognition & accurate glue detection Ensures precise glue application on product surfaces
High-speed dispensing with flexible movement Saves time while maintaining high precision
Variable-speed photo capturing on the fly Improves tracking and real-time adjustments

5. Application of ES-705

The ES-705 machine is widely used in various industrial production sectors, particularly in electronics manufacturing:

Application Description
Mobile phone middle frame Precise glue positioning for secure component attachment
FPC flexible circuit board High-precision glue dispensing on complex circuits
LCD module Enhances durability and protection of electronic screens
TWS headset Glue positioning ensures strong structural integrity
LED packing test Applies glue to narrow gaps for stable connections
Camera module Precision dispensing enhances camera module durability

6. Why Choose ES-705 from JIT Vietnam?

JIT Vietnam is a leading provider of high-tech industrial manufacturing equipment. Choosing the ES-705 means:
Advanced technology – Smart visual recognition for enhanced efficiency.
Optimal precision – Dual-valve dispensing and automatic calibration ensure uniform glue application.
Professional support services – JIT Vietnam guarantees high-quality after-sales service, ensuring smooth operation for customers.

7. Conclusion

The ES-705 dispensing machine is an optimal solution for improving production efficiency and product quality. With state-of-the-art technology, high precision, and flexible integration, the ES-705 is the top choice for manufacturers in the electronics, LCD module, and camera module industries.

📞 Contact JIT Vietnam today for detailed consultation on the ES-705!

🌐 Website: www.jit-asia.com
📞 Hotline: (+84) 348 100 358
📧 Email: info@jitvietnam.com
