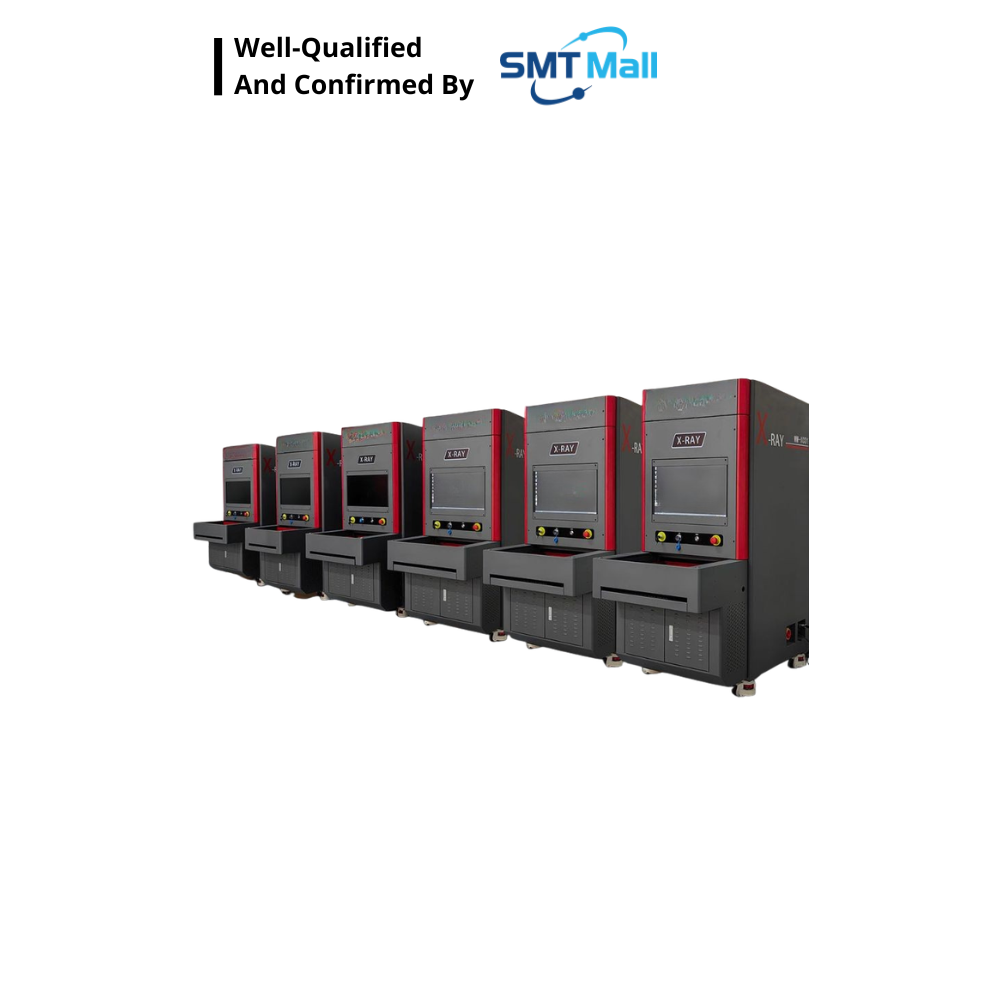

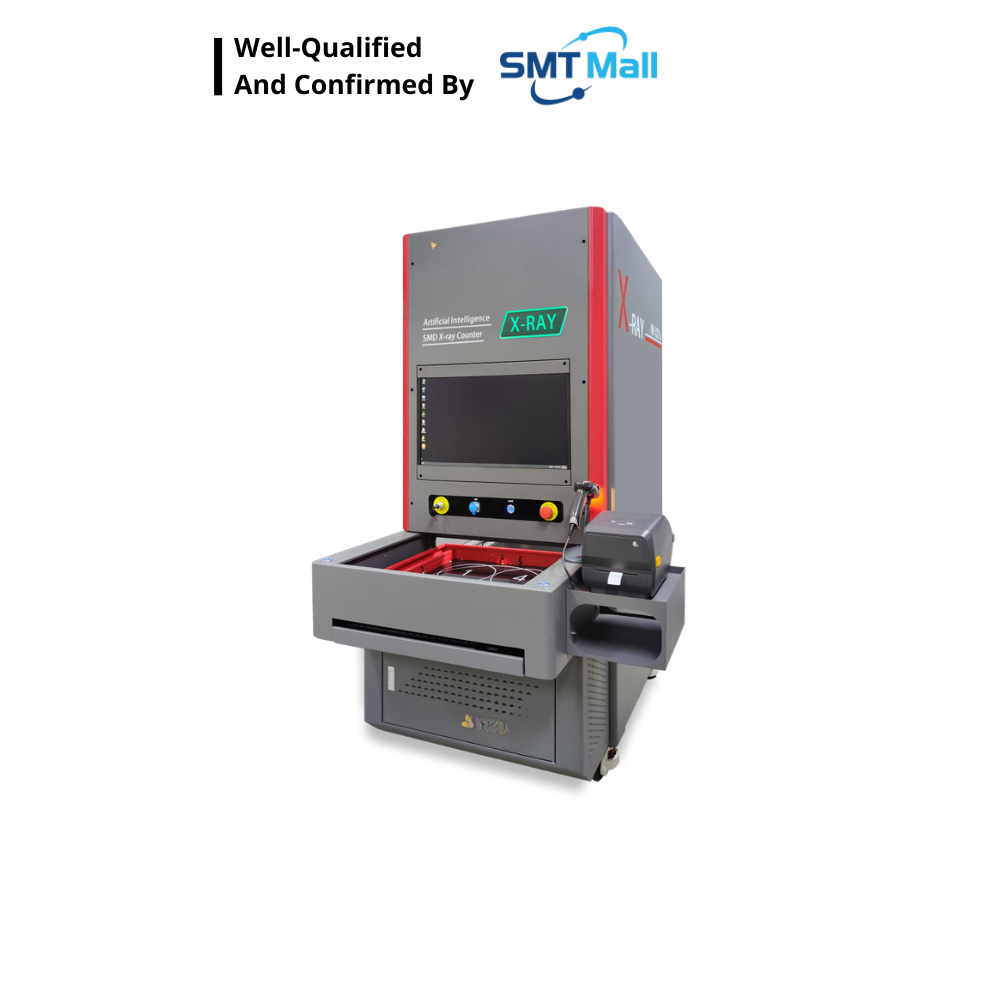

Microfocus X-Ray Parts Counter XC-01
Microfocus X-Ray Parts Counter XC-01
● Mobel: 1150D
● MOQ : 1 set
● Packing details:
● Subject to discussion:
Couldn't load pickup availability
Product overview
The Microfocus X-Ray Parts Counter is a German-engineered precision counting system designed for fast, accurate, and fully automated component verification in SMT production. Powered by AI deep learning algorithms and equipped with an 80kV closed-type X-ray tube, this system ensures reliable counting even for ultra-small components such as 01005 chips — achieving up to 99.99% accuracy in under 10 seconds.
The system’s AI deep learning algorithm automatically identifies component types without pre-binding. It learns key geometric and visual features — such as aspect ratio, edge angle, and contour deformation — to continuously enhance accuracy with each use.
Through the cloud-connected database, every machine synchronizes its data and downloads optimized. This ensures continuous improvement in speed, accuracy, and component recognition coverage over time.
Technical specifications
| Specification | Detail |
|---|---|
| X-ray Source | 80kV / 700μA microfocus tube (30μm focal spot) |
| Detector | 17” Digital FPD (430×430mm), 139μm pixel, 3072×3072 resolution |
| Counting Capacity | Up to 17” (430mm) reel or tray, 88mm max thickness |
| Component Size | Min 01005 |
| Speed | 7–10 seconds per reel |
| Accuracy | ≥99.98% (01005), ≥99.99% (0201 and above) |
| Dimensions | 1000(L) × 1300(W) × 1820(H) mm |
| Weight | 580 kg |
| Power Supply | AC 110–220V, 50/60Hz, 800W |
| System | Industrial PC (i7 CPU, 16GB RAM, 256GB SSD + 4TB HDD), 24” HDMI Display |
| Safety Features | Radiation <1μSv/h, door interlock, light curtain, emergency stop |
Applications
The Microfocus X-Ray Parts Counter is widely used across the electronics manufacturing industry to enhance production efficiency, inventory accuracy, and quality control. Its advanced X-ray imaging and AI-driven counting system make it ideal for:
SMT and PCBA Manufacturing Lines
Accurately counts SMD reels before and after production runs.
Ensures correct inventory levels for 01005–1206 components and larger.
Helps prevent production delays due to material shortages or miscounts.
Electronic Component Warehouses and Material Control Centers
Streamlines incoming material inspection and stocktaking.
Reduces human error and labor costs in manual counting.
Supports integration with MES, ERP, and WMS systems for digitalized inventory management.
EMS and OEM Factories
Verifies component quantities before production handover.
Tracks material usage by work order and supports traceability compliance.
Improves transparency in production and logistics.
Semiconductor Packaging and Assembly Plants
Counts precision parts or small semiconductor materials sealed in moisture barrier bags.
Maintains high accuracy without unpacking or damaging the material.
R&D and Quality Laboratories
Performs non-destructive inspection and counting for research samples.
Provides clear X-ray imaging for data validation and training datasets in AI material recognition.
