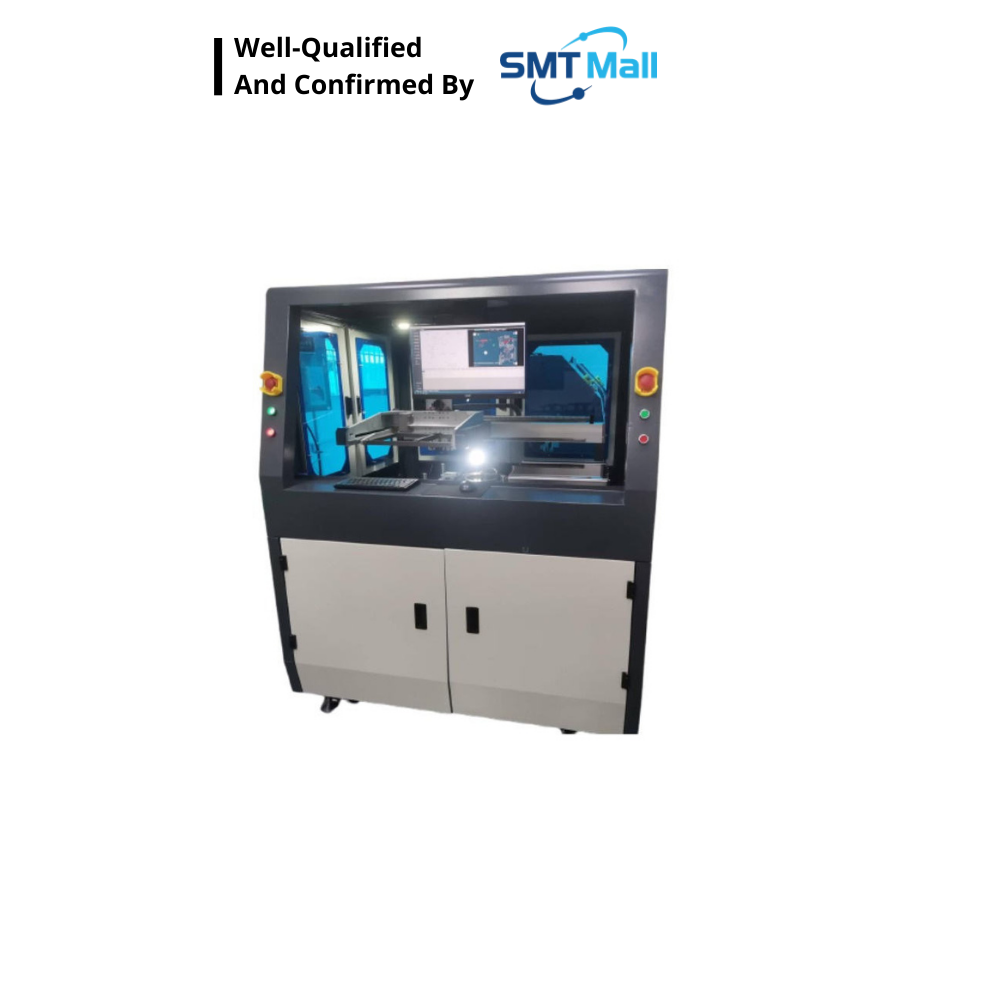

Product overview JIT SE4030 Selective Soldering Machine
The JIT SE4030 Mini Selective Wave Soldering machine offers superior soldering quality while delivering significant operational advantages. Designed to meet the stringent demands of modern electronics manufacturing, the SE4030 guarantees high yield rates, exceptional precision, and maximized operational efficiency.
Technical specifications
| Feature | Detail |
| Preheating Method | Lower infrared short-wave heating method preheating |
| Control System | WIN 10 + PC industrial control + Xinhao controller |
| Temperature Control | Dongqi temperature module PID closed-loop control + SSR drive |
| X Y Z Axis Control | Panasonic A6 servo drive |
| X Y Z Axis Hardware | Upper silver module and ball screw combination |
| Tin Wave Drive | Leadshine stepper drive |
| Wave Calibration | Automatic wave height calibration |
| Liquid Level | Tin wave liquid level low alarm prompt function |
| Alarm System | Ultra-high or ultra-low temperature alarm, using sound and light indications |
Detailed Description (Key Specifications)
| Specification | Value |
| Outer Size | 146013201835mm |
| Net Weight | 350kgs |
| Power Supply | Single phase; 220V 50/60HZ |
| Solder Pot Heating Time | Approximately 30–40 min |
| Temperature Range | 270–320°C |
| Maximum PCB Width | 300*400mm |
| Operating Platform Height | 750±20 mm |
| Color | Main body gray, door panel white |
Standard Nitrogen System
The SE4030 is equipped with a nitrogen system as a standard feature, supporting advanced soldering environments.
- Components: Standard nitrogen flowmeter and nitrogen heating function.
- Consumption: Nitrogen consumption is 0.2 – 0.8 Mpar per hour for 2 cubic meters of nitrogen.
High-Quality Components and Global Sourcing
JIT ensures reliability and longevity by integrating components from internationally recognized and respected brands.
| System Part | Component | Brand | Brand Origin |
| Controlling | Industrial PC / Controller | Xinhao | China |
| Controlling | Position Camera | Osee | China |
| Controlling | SSR (Solid State Relay) | Carlogavazzi | Switzerland |
| Controlling | AC Contactor | Schneider | France |
| Motion Parts | Servo Motor / Driver | Panasonic | Japan |
| Motion Parts | Limit Sensor (Photoelectric) | Panasonic | Japan |
| Motion Parts | Ball Screw / Linear Guide | Hiwin | China-Taiwan |
| Pneumatic | Pressure Sensor | SMC | Japan |
| Pneumatic | Air Cylinder / Solenoids | AirTAC | China-Taiwan |
Applications
- Complex and high-density PCBs: Ideal for soldering through-hole components on complex and densely populated boards after surface mount technology (SMT) reflow, notes this YouTube video.
- Automotive electronics: Crucial for manufacturing reliable automotive electronics and power supplies, ensuring dependable performance in demanding conditions.
- High-reliability electronics: Used in industries that require high soldering reliability and stability, including military electronics, medical devices, and telecommunications.
- Small-batch and specialized production: Offers high flexibility and precision, making it suitable for low-volume production, high-demand tasks, and specialized soldering needs like repairs.
- Mixed technology boards: Used in the production of mixed technology boards that contain both surface mount and through-hole components, notes this YouTube video.
- Non-electronic applications: Can be used for tasks beyond electronics, such as securing lead-frames to ceramic bases or affixing coil leads.
