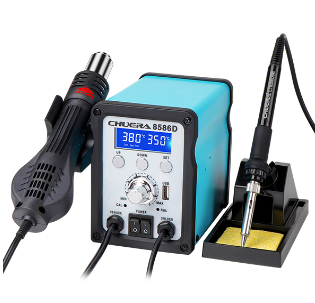

Hot air soldering station 2 in 1 CHUERA-8586D

Hot air soldering station 2 in 1 CHUERA-8586D

Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

Detailed introduction

  • The hot air desoldering station and the electric soldering station form a multifunctional integrated desoldering maintenance system:
  • The perfect two-in-one combination, the body is compact, durable, beautiful, and occupies a small workbench area:
  • The LCD screen dual temperature simultaneously displays the working temperature and status of the air gun and soldering iron, which is convenient and intuitive:
  • The CNC button continuously adjusts the hot air temperature and the soldering station temperature to meet different desoldering needs:
  • The hot air gun has high power, rapid heating, soft air output, and large air volume, which is very suitable for lead-free desoldering operations;
  • The soldering station heating element is powered by a low-voltage power supply, which can effectively protect sensitive devices and staff safety:
  • Add a USB charging port to provide USB power charging function;
  • The air gun and the soldering station have independent switches, and a fault self-detection indication function;
  • Support Celsius and Fahrenheit switching function;

Specifications:

Switchboard:

Working voltage: AC220V/50HZ

Maximum instantaneous power: 780W

Working environment: 0~40℃ Relative humidity ≤80%

USB interface: 5V/2A

Heat gun part:

Maximum instantaneous power: 700W

Temperature range: 100℃~500℃ Air flow rate:120L/min (maximum)

Temperature stability: ±2℃(static)

Temperature calibration method: Digital calibration

Soldering station part:

Maximum instantaneous power: 80W

Temperature range: 200℃~480℃

Temperature stability: ±2℃(static)

Temperature calibration method: Digital calibration

Welding tip to ground impedance: <2Ω 

Welding tip to ground voltage: <2mV

Soldering impedance to ground: <20

Accessories available:

Soldering iron handle model: LT908D

Soldering station heating core model: 132 4 metal heating cores.

Applicable soldering iron tip: 900M/900L

Heat gun handle model: LT 858

Heat gun heating wire model:  700W 220V heating core

Hot air gun nozzle:  A1130 A1170 A1110 etc.
