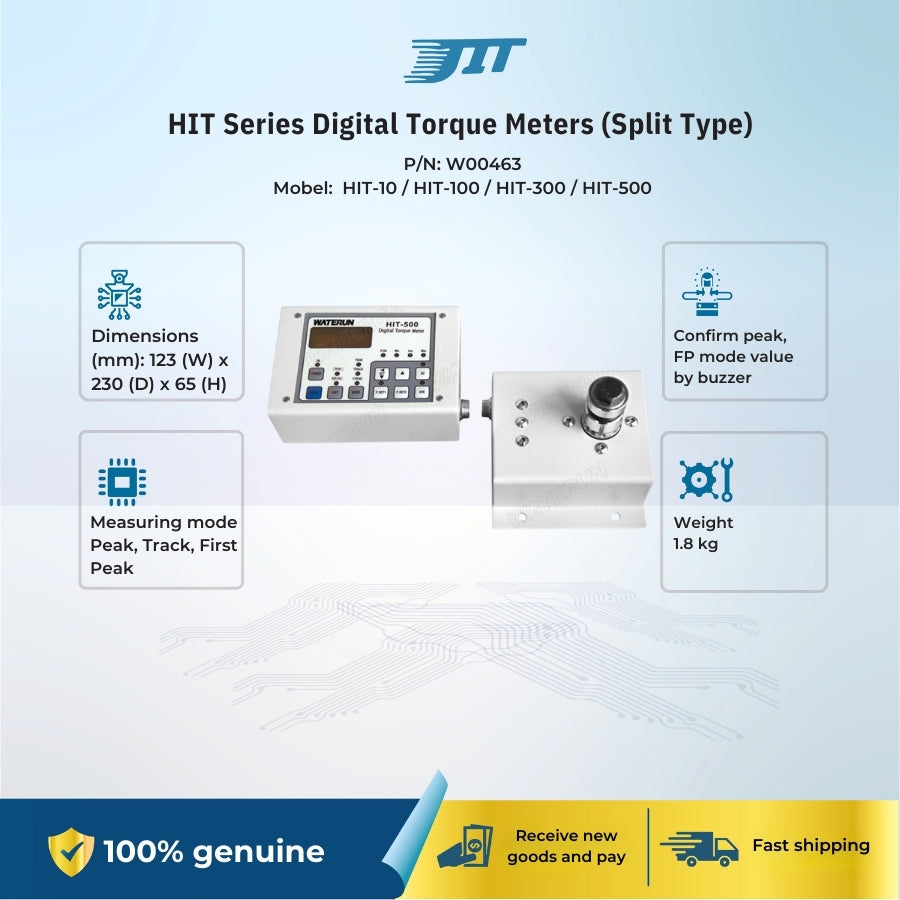

HIT Series Digital Torque Meters

HIT Series Digital Torque Meters

Regular price $522.60
Regular price $522.60 Sale price
EXW China
SAVE $-522.60 Sold out

Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

Features:
1.Specially designed for management of torque for impact drivers.
2.First peak measuring mode(F.PEAK) gives precision measurements of torque wrenches or other tools.
3.Confirm peak, FP mode value by buzzer.

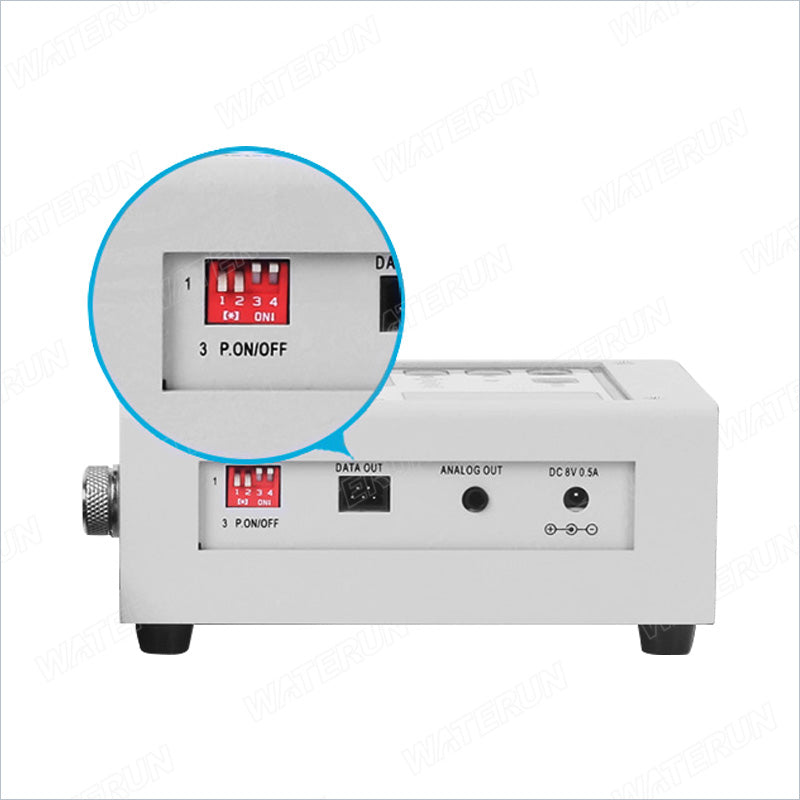

4.Data output and analog output are standard spec. characteristics.

 Model HIT-10 HIT-100 HIT-300 HIT-50

Measurement

Range

Kgf.cm

0.15-10.0

1.5-100.0 10.0-300.0 15.0-500.0
N.m 0.015-1.0 0.15-10.0
1.0-30.0 1.5-50.0
Accuracy within±0.5% within±1.0%
Measuring Modes Peak, Track, First Peak
Dimensions (mm) 123 (W) x 230 (D) x 65 (H)
Weight 1.8 kg

View full details

FAQ

What are the main features of the HIT Series Digital Torque Meters?

Key features of the HIT Series Digital Torque Meters include:

Digital display for accurate torque readings
Multiple torque units (e.g., Nm, lb-ft, kg-cm)
High precision and accuracy
Data hold function for capturing measurements
Peak torque measurement for recording maximum values
Adjustable torque settings and alarms
Backlit display for visibility in low-light conditions

What are the typical specifications of the HIT Series Digital Torque Meters?

Common specifications include:

Measurement range: Varies by model (e.g., 1-100 Nm)
Accuracy: ±1% of reading or better
Display: Digital LCD with backlight
Power supply: Battery-operated (e.g., 2 x AA batteries)
Operating temperature: 0°C to 50°C (32°F to 122°F)
Dimensions and weight: Varies by model

How do I use the HIT Series Digital Torque Meter?

To use the HIT Series Digital Torque Meter:

Ensure the meter is powered on and properly calibrated.
Select the desired torque unit using the mode button.
Attach the meter to the fastener or component using the appropriate adapter or socket.
Apply torque gradually and observe the digital display for the measurement.
Use the data hold function if needed to capture and record the reading.
