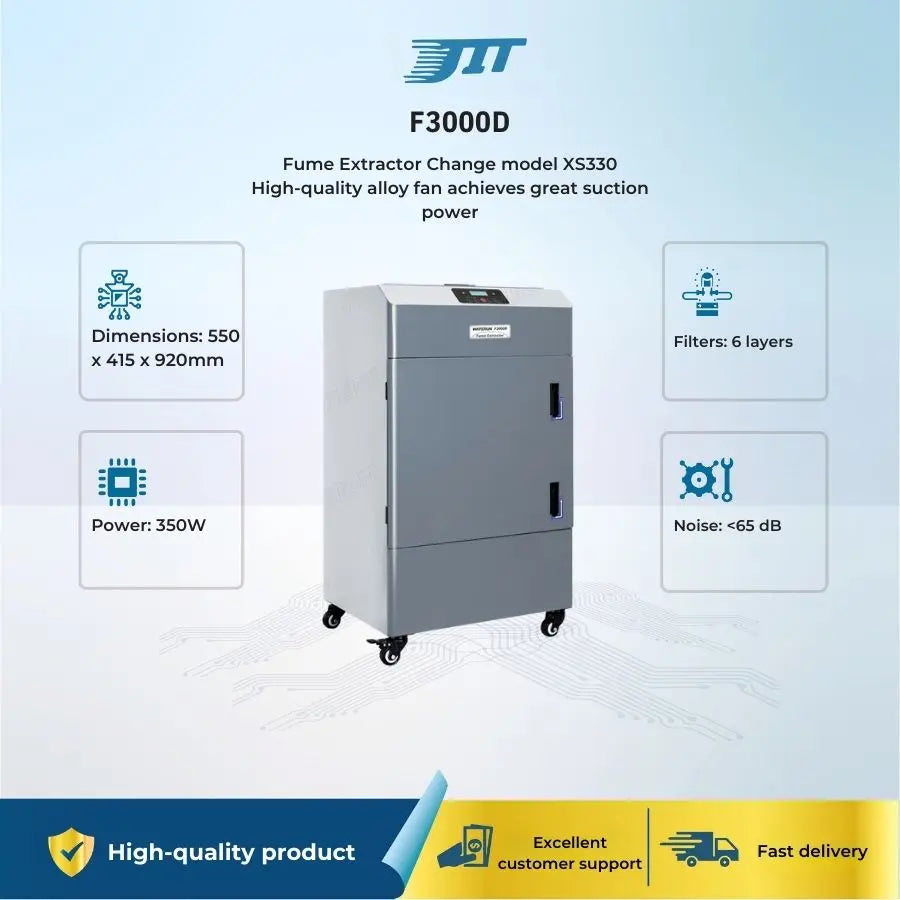

F3000D Fume Extractor Change model XS330

F3000D Fume Extractor Change model XS330

Regular price $780.00
Regular price $780.00 Sale price
EXW China
SAVE $-780 Sold out

Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

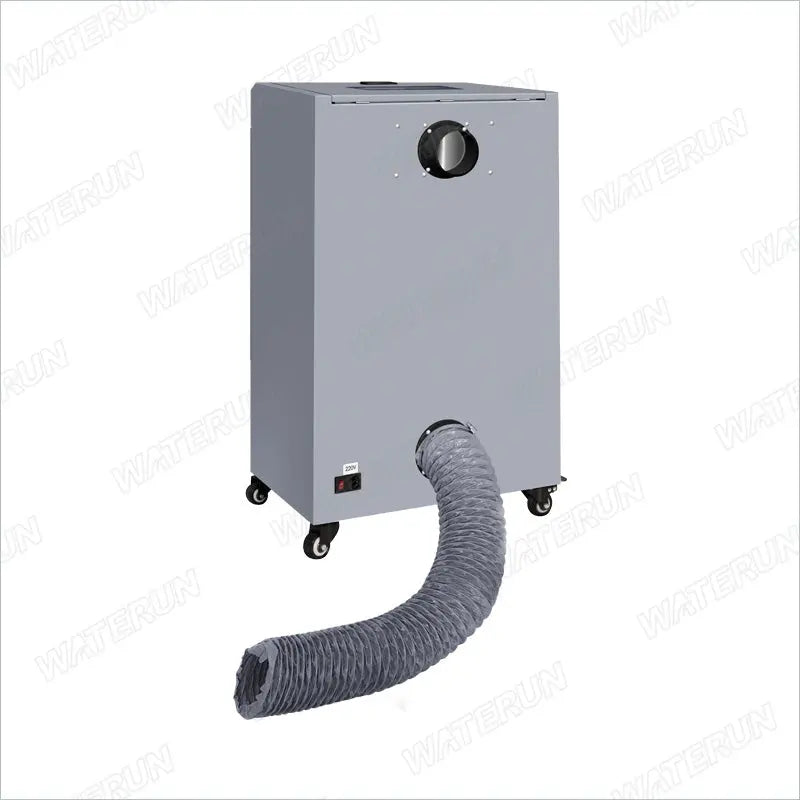

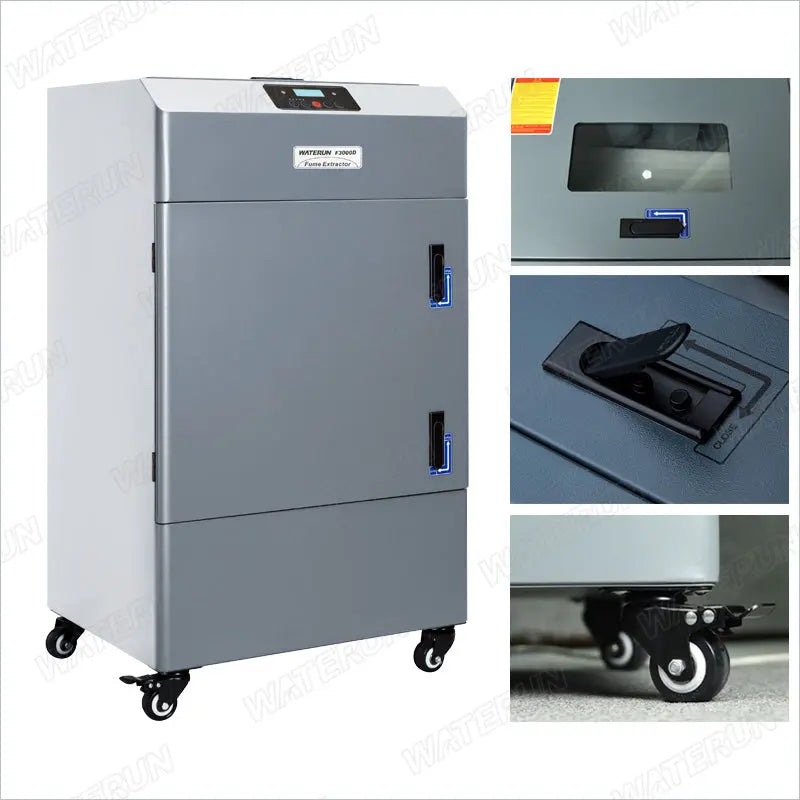

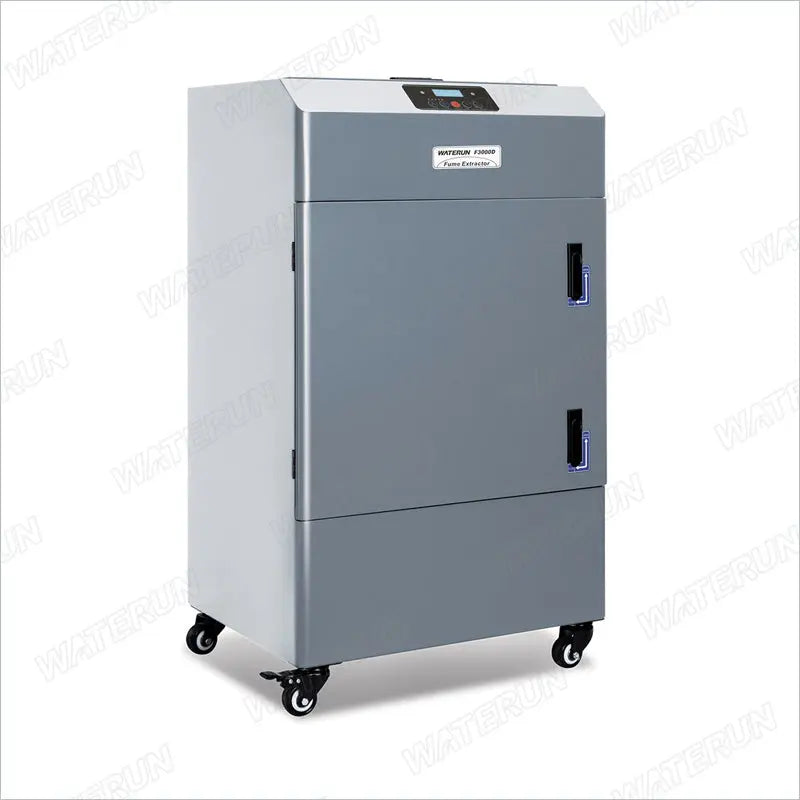

F3000D FUME EXTRACTOR

  • Multi-operators (Max. 6 operators);
  • Laser Cutting
  • Laser Marking
  • Laser Engraving
  • Electric Welding
  • Argon Are Welding

Features:

  1. Metal body structure, strong and durable;
  2. With digital display and remote control;
  3.  Noise reduction design achieves quiet operation;
  4. Multiple-filter design ensures thorough purification;
  5. High-quality alloy fan achieves great suction power.
  6. With the observation window, you can monitor the dust accumulation status.



Model  F3000D  F5000D F6000D
Power 350W 450W 700W
Filter 6 layers 8 layers 8 layers
Systemic Flow 435 m³/h 500 m³/h 620 m³/h
Filtering Efficiency 0.3µm 99.97% 0.3µm 99.97% 0.3µm 99.97%
Noise <65 dB <70 dB <75 dB
Dimensions 550 x 415 x 920 550 x 415 x 920 550 x 415 x 1300
Weight 52.5 kg 60 kg 75 kg

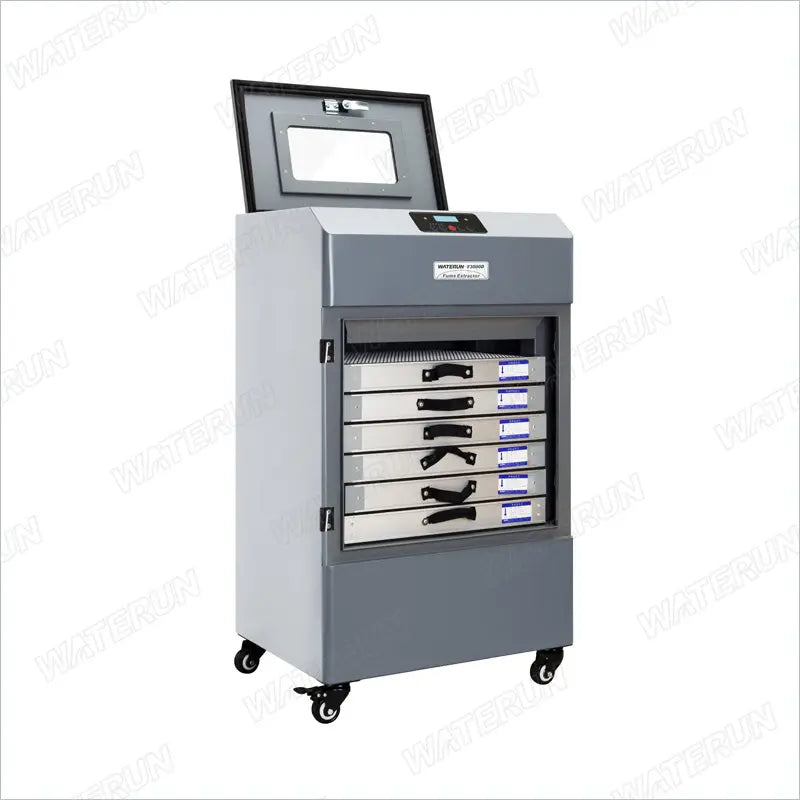

FILTER COMBINATION



1st Layer  Pre-Filter Cotton
2nd Layer PP Filter
3rd Layer Glass Fiber Filter
4 to 6th Layer Active Carbon Filter








View full details

FAQ

Where can I purchase the XS330?

The XS330 is available for purchase through authorized distributors, industrial supply stores, and online marketplaces.

Why is the extraction power reduced?

Reduced extraction power could indicate clogged filters. Check and replace the filters if they appear dirty or clogged

How do I replace the filters?

To replace the filters, turn off and unplug the unit, open the filter compartment, remove the old filters, and insert new ones. Follow the detailed instructions in the user manual.

How do I operate the XS330?

urn on the power switch, adjust the airflow settings as needed, and position the adjustable arm to capture fumes effectively. Ensure the unit is placed in a stable position.
