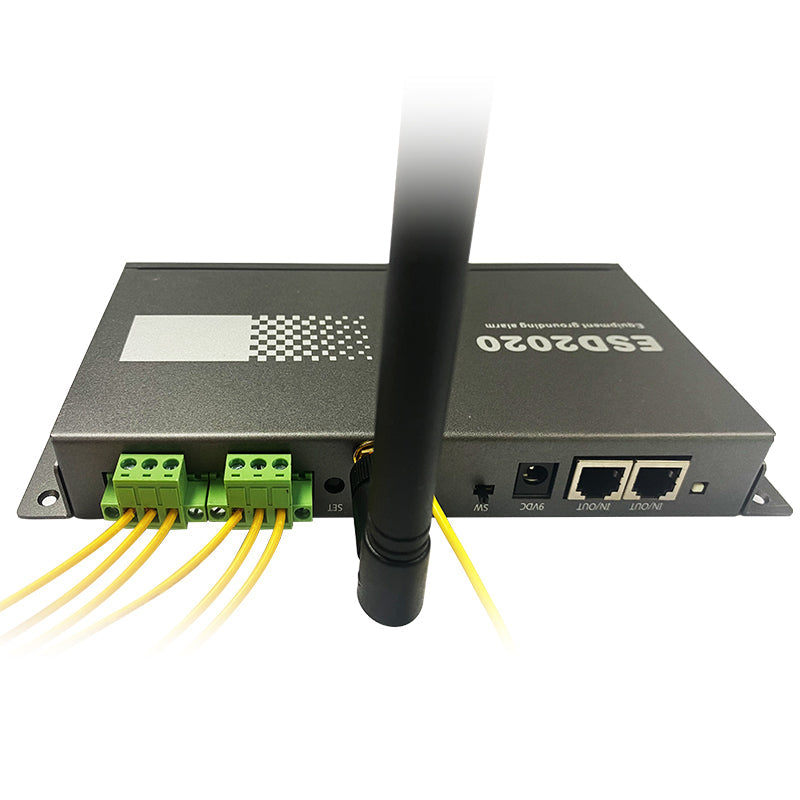

ESD2020 Wrist Strap On-Line Monitor

ESD2020 Wrist Strap On-Line Monitor

$92.30
$92.30
EXW China
SAVE $-92.30 Sold out

● Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

ESD2020
Equipment Grounding On-Line Monitor
(P/N: W00746)
New ESD2020 Features:
→ One used for six equipment.
→ LED Display resistance, real-time monitoring, any device exceeds standard value alarm meanwhile software record data.
→ ID can set manually

 Voltage  DC9V
 Response time  <50mS
 Alarm value  ≥10Ω (can be set to 2-10Ω)
 Accuracy  ±10%
Dimensions  W207mm x H91mm x D25mm
Wireless  433MHz/2.4g/5G
Optional accessories  Infrared device, Status Light, grounding cord.
View full details

FAQ

The alarm sounds intermittently. What could be the issue?

Intermittent alarms may be caused by poor skin contact with the wrist strap. Ensure the strap is worn snugly.
Check for any damage or wear in the wrist strap cord that could cause intermittent connections.
Ensure the grounding point is stable and not subject to electrical noise or interference.

The monitor is showing a fault condition for the wrist strap. How can I fix this?

Ensure the wrist strap is properly worn and making good contact with the skin.
Check the connection between the wrist strap cord and the monitor.
Test the wrist strap with a different monitor to rule out a fault in the strap itself.
Inspect the ground connection and ensure it is secure.

The ESD2020 monitor is not powering on. What should I do?

Check that the power adapter is securely connected to both the monitor and the power outlet.
Verify that the power outlet is working by testing it with another device.
Inspect the power adapter and cable for any visible damage.

How do I clean the ESD2020 Wrist Strap On-Line Monitor?

Step 1: Turn off the monitor and unplug it from the power source.
Step 2: Wipe down the exterior surfaces with a soft, damp cloth.
Step 3: Avoid using harsh chemicals or solvents that could damage the monitor.
Step 4: Ensure the monitor is completely dry before turning it back on.
