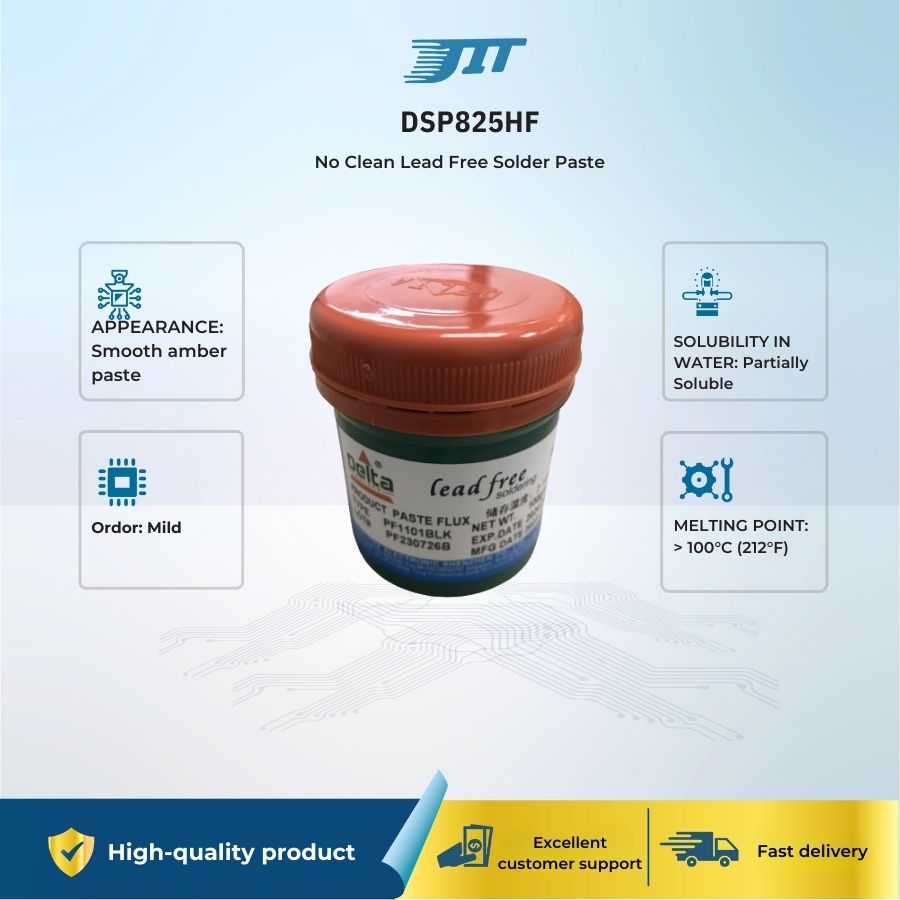

DSP825HF Solder Paste

DSP825HF Solder Paste

$0.00
$0.00
EXW China
SAVE $0 Sold out

● Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

DSP825HF No-Clean Solder Paste
Lead Free, Halogen Free, Temperature Stable Formulation
DSP 825HF is a leading lead-free, no clean, halogen-free, temperature stable solder paste
compatible with a wide range of lead-free alloys including Qualiteks patented Ecolloy Alloy.
DSP825HF provides a superior fluxing activity level with excellent wetting. Wide reflow
process window combined with high thermal stability yield solder joints with smooth
surfaces. In addition, DSP 825HF offers consistent printing characteristics combined with
long stencil and tack life to accommodate high speed printing. This material yields
excellent brick like printing characteristics across various board designs and is excellent for
ultra-fine pitch. Flux classification is ROL0 per J-STD-004B. Alloys exceed impurity
requirements of J-STD-006 and all other relative international standards.
Available in 250, 500 gram jar or 500 gram Semco Cartridge

View full details

FAQ

Are there any safety precautions for using DSP825HF No-Clean Solder Paste?

Ventilation: Ensure proper ventilation in the workspace to avoid inhaling fumes.
Protective Gear: Wear gloves and safety glasses to prevent skin and eye contact.
Handling: Follow all safety instructions provided by the manufacturer.

What are the benefits of using DSP825HF No-Clean Solder Paste?

No Post-Soldering Cleaning Required: Reduces the need for additional cleaning processes, saving time and costs.
Minimized Residue: Leaves minimal, non-corrosive residue that does not affect the performance of the circuit.
Enhanced Reliability: Provides strong, reliable solder joints that meet industry standards.

How do I handle and store DSP825HF No-Clean Solder Paste?

Handling: Avoid contamination by using clean tools and equipment.
Storage: Keep in a sealed container in a cool, dry place. Follow the manufacturer’s recommendations for storage conditions.
Shelf Life: Use within the specified shelf life for optimal performance.

How do I use DSP825HF No-Clean Solder Paste?

Storage: Store in a cool, dry place before use.
Application: Apply the solder paste to the PCB using a stencil or dispensing system.
Soldering: Reflow the solder paste in an oven or using a soldering system according to the recommended temperature profile.
Inspection: Check the solder joints for quality and reliability.
