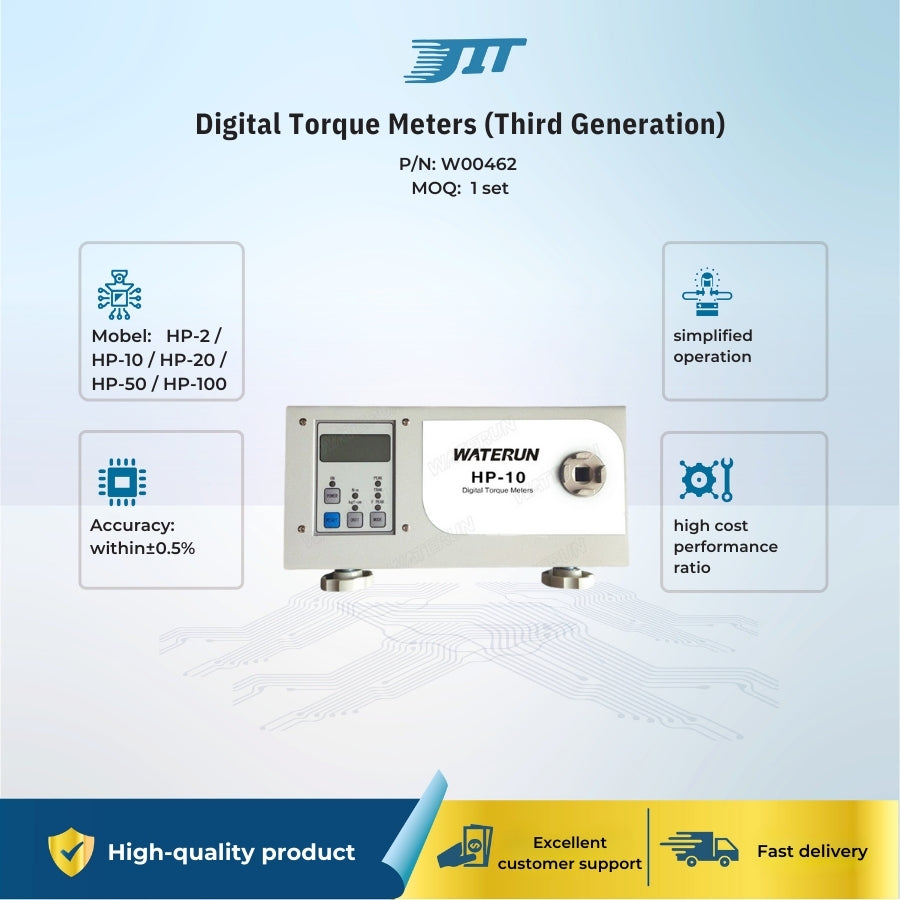

Digital Torque Meters (Third Generation)
Digital Torque Meters (Third Generation)
● Mobel: 1150D
● MOQ : 1 set
● Packing details:
● Subject to discussion:
Couldn't load pickup availability
Features:
1.New Design with simplified operation, high cost performance ratio.
2.Wide measuring range, high accuracy, and the models are complete.
3.The attached measuring joint can be run clockwise or counterclockwise to measure the o/p torque with usual bit and the measured value will be cleared in setting time automatically.
4.It can calculate and display the maximum and average torque value.
| Model | HP-2 | HP-10 | HP-20 | HP-50 | HP-100 | |
|
Measurement Range |
Kgf.cm |
0.03-2.0 |
0.15-10.0 | 0.2-20.0 | 0.75-50.0 | 1.5-100.0 |
| N.m | 0.003-0.2 | 0.15-1.0 | 0.02-2.0 | 0.075-5.0 | 0.15-10.0 | |
| Lbt.in |
0.03-1.8 |
0.15-9.0 | 0.20-18.0 | 0.75-45.0 | 1.5-90.0 | |
| Accuracy | within±0.5% | |||||
