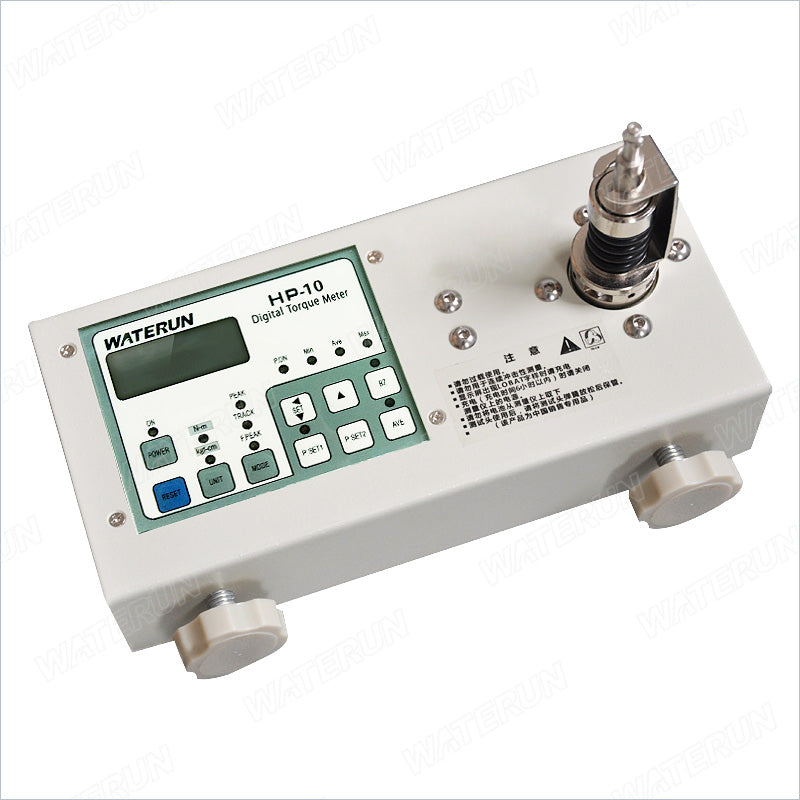

Digital Torque Meters (Intelligent Type)

Digital Torque Meters (Intelligent Type)

$0.00
$0.00
EXW China
SAVE $0 Sold out

● Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

Features:

1. Wide  measuring  range, high accuracy, and the models are complete.

2. The attached measruing joint can be run clockwise or counter-clockeise to measure te o/p torque with usual bit and the

     measured value will be cleared in setting time automatically.

3. There are three measuring modes: Peak, Track, F. Peak for easy choice to operate.

4. It can calculate and display the maximum and average torque value.

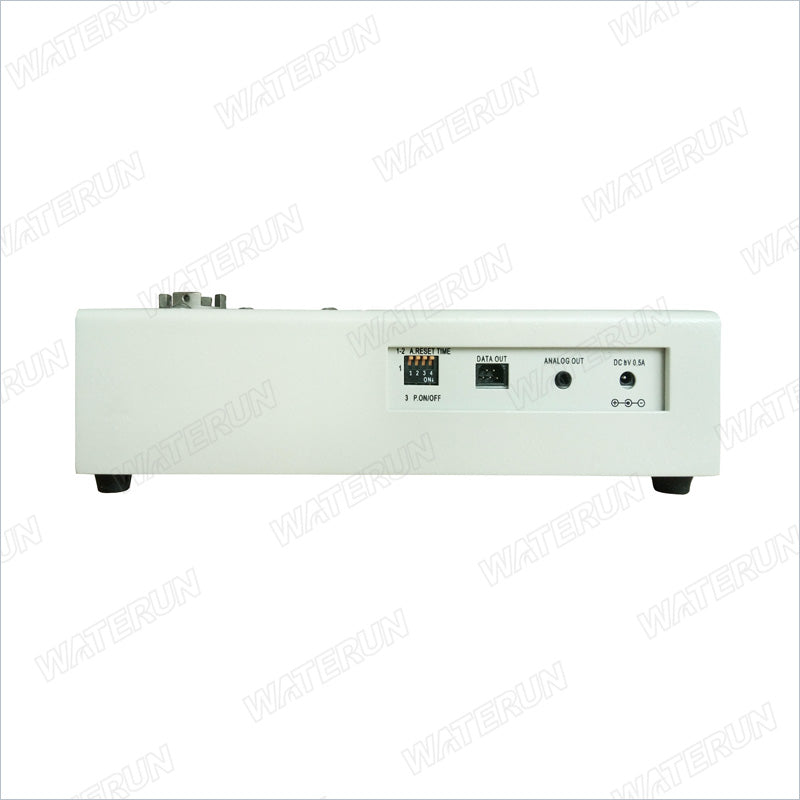

5. A bulit-in o/p terminal can be connected to the computer for recalling, editing, and calculating measured datum.




 Model HP-2 HP-10 HP-20 HP-50 HP-100

Measurement

Range

 Kgf.cm

0.03-2.0

 0.15-10.0 0.2-20.0 0.75-50.0 1.5-100.0
N.m 0.003-0.2 0.15-1.0 0.02-2.0 0.075-5.0 0.15-10.0
Lbt.in

0.03-1.8

 0.15-9.0 0.20-18.0 0.75-45.0 1.5-90.0
Accuracy within±0.5%

View full details

FAQ

What makes an intelligent digital torque meter different from a normal digital torque meter?

Intelligent digital torque meters often include advanced features that go beyond basic torque measurement. These features may include:
Data logging: Intelligent meters can record and store measurement data for later analysis.
Wireless connectivity: Some models offer Bluetooth or Wi-Fi capabilities for real-time data transfer and remote monitoring.
Advanced analytics: They may provide detailed analysis tools, including statistical evaluations and trend analysis.
Automatic calibration: Intelligent torque meters might include self-calibration features or more sophisticated calibration procedures.
Integration capabilities: They can often integrate with other systems or software for automated reporting and data management.

How do I set up and use an intelligent digital torque meter?

Setting up and using an intelligent digital torque meter generally involves the following steps:
Read the manual: Consult the user manual for specific setup and operational instructions.
Power on the device: Turn on the meter and ensure it is fully charged or connected to a power source.
Configure settings: Use the digital interface to select measurement units, configure data logging options, or connect to wireless networks if applicable.
Calibrate if necessary: Follow the instructions for calibration to ensure accurate measurements.
Attach and measure: Connect the meter to the fastener and apply torque as needed. Monitor readings on the display or through connected devices/software.
Review and analyze data: Utilize any data analysis tools or software provided to review and interpret the measurements.

What should I do if my intelligent digital torque meter is not functioning correctly?

If your intelligent digital torque meter is malfunctioning, try the following troubleshooting steps:
Check power: Ensure the battery is charged or replace it with a new one. Verify power connections if applicable.
Verify connections: Ensure all cables, sensors, or attachments are properly connected and secure.
Review settings: Confirm that the meter’s settings are correctly configured and not causing any issues.
Restart or reset: Turn off the meter and then turn it back on, or perform a factory reset if available and outlined in the manual.
Consult the manual: Look for troubleshooting tips specific to your model in the user manual.
Contact support: If issues persist, reach out to the manufacturer or supplier’s customer support for assistance or repair options. Ensure you follow any warranty guidelines if applicable.
