Desktop Screwing Machine
Desktop Screwing Machine
● Mobel: 1150D
● MOQ : 1 set
● Packing details:
● Subject to discussion:
Couldn't load pickup availability

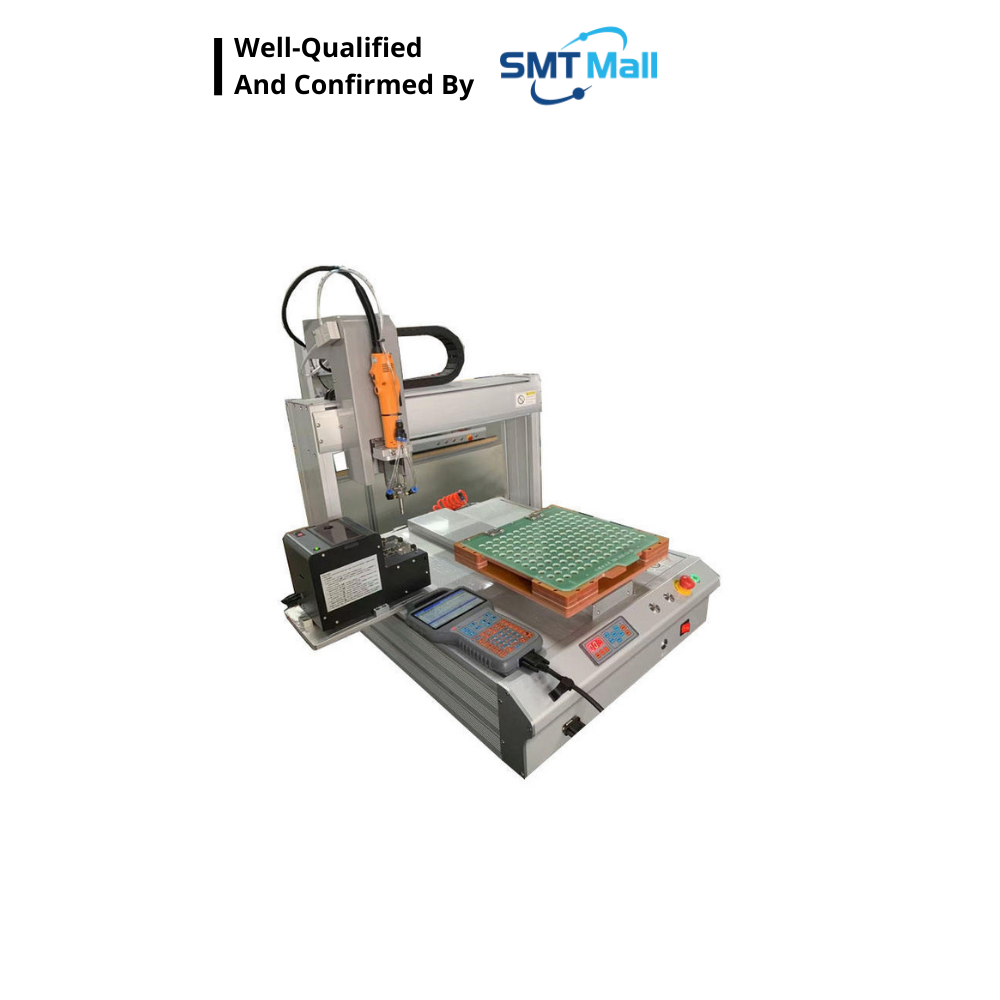

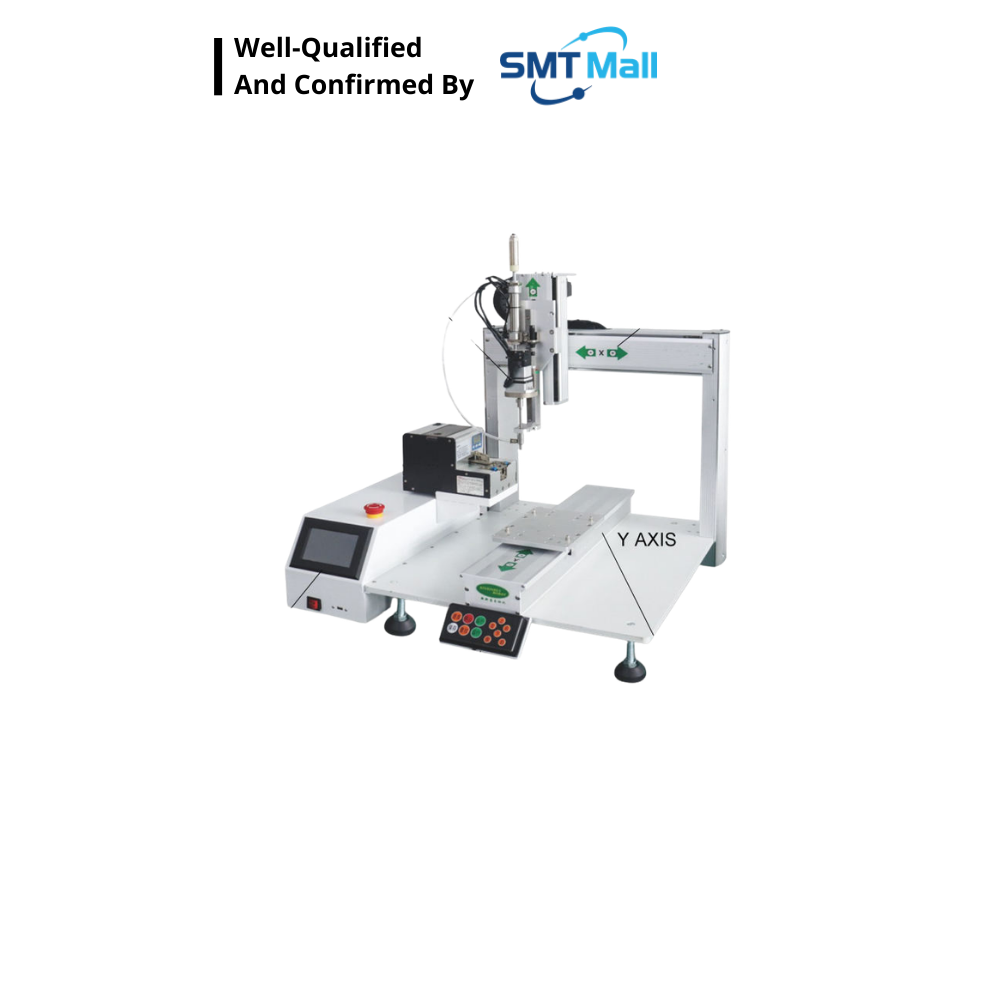

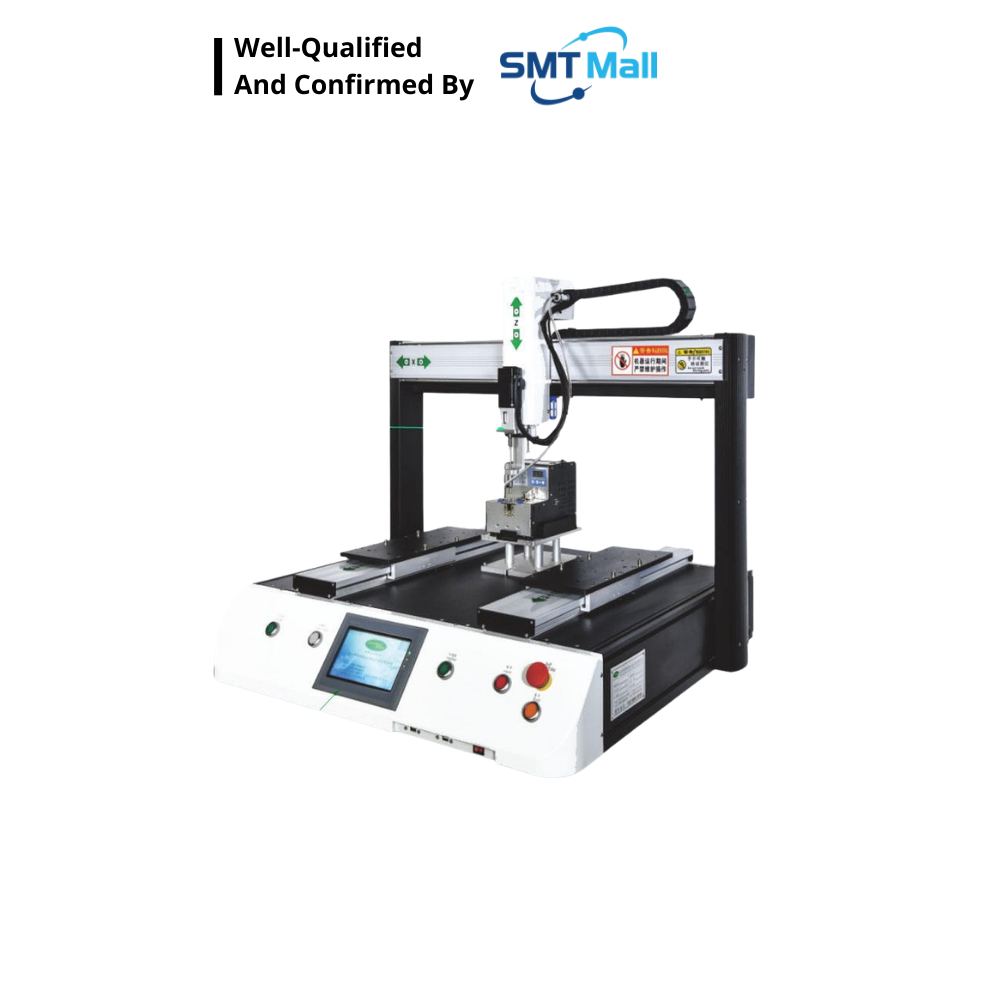

Product overview Desktop Screwing Machine
In today’s electronics manufacturing industry, precision and speed in screw fastening are critical for maintaining product quality and production efficiency.
The JIT Desktop Screwing Machine delivers an optimal solution with its 3-axis robotic design, dual linear guide system, intelligent detection features, and servo-driven torque control.
Compact yet powerful, this system is engineered for high-speed, high-accuracy assembly of consumer electronics, providing outstanding productivity, consistent torque precision, and long-term reliability.
Technical specifications
| Item | Specification |
| Working Range | 180 × 400 × 90 (X × Y × Z) |
| Motion Method | Stepper motor with encoder feedback, no missing steps |
| Linear Guide | Wecn |
| Positioning Accuracy | ±0.02 mm |
| Control System | Touch screen + communication control card |
| Screw Feeding Method | Vacuum suction + magnetic assistance |
| Integrated Screwdriver | Servo screwdriver |
| Screw Tightening Speed | 1.5–2 s/screw (depending on screw type & product) |
| Memory Capacity | 100 programs |
| Communication Interface | USB |
| Operating Voltage | AC 220V |
| Air Pressure Requirement | 0.5–0.6 MPa |
| Power Consumption | 900W |
| Machine Dimensions | 750 × 760 × 770 (L × W × H) |
| Machine Weight | 100 kg |
Applications
The Desktop Screwing Machine offers high versatility and adaptability across a wide range of consumer electronics and precision assembly applications, including:
Electronic Devices: Smartphones, LED lighting modules, desktop computers, GPS units, audio systems, and cameras.
Portable Products: Laptops, tablets, e-learning devices, and various household electronics.
Precision Components: Watches, keyboards, toys, and other compact mechanical assemblies requiring accurate torque control.
