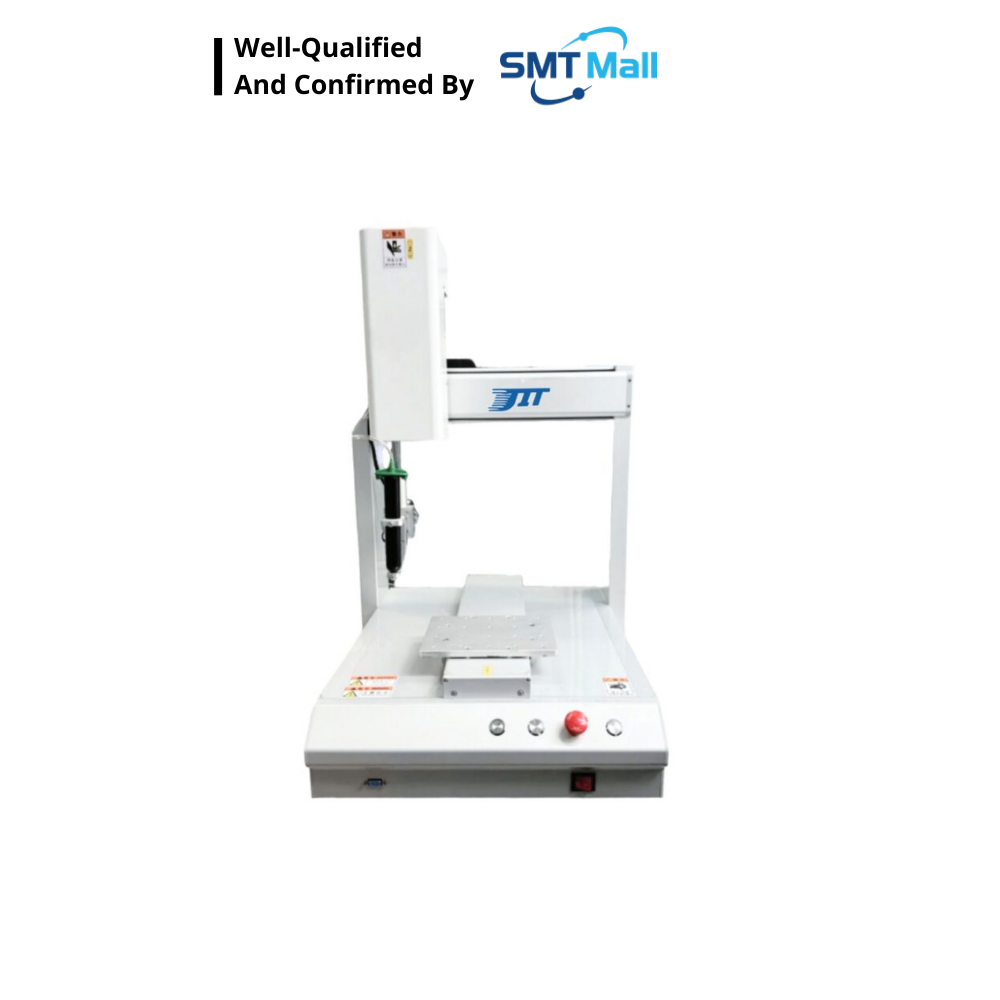

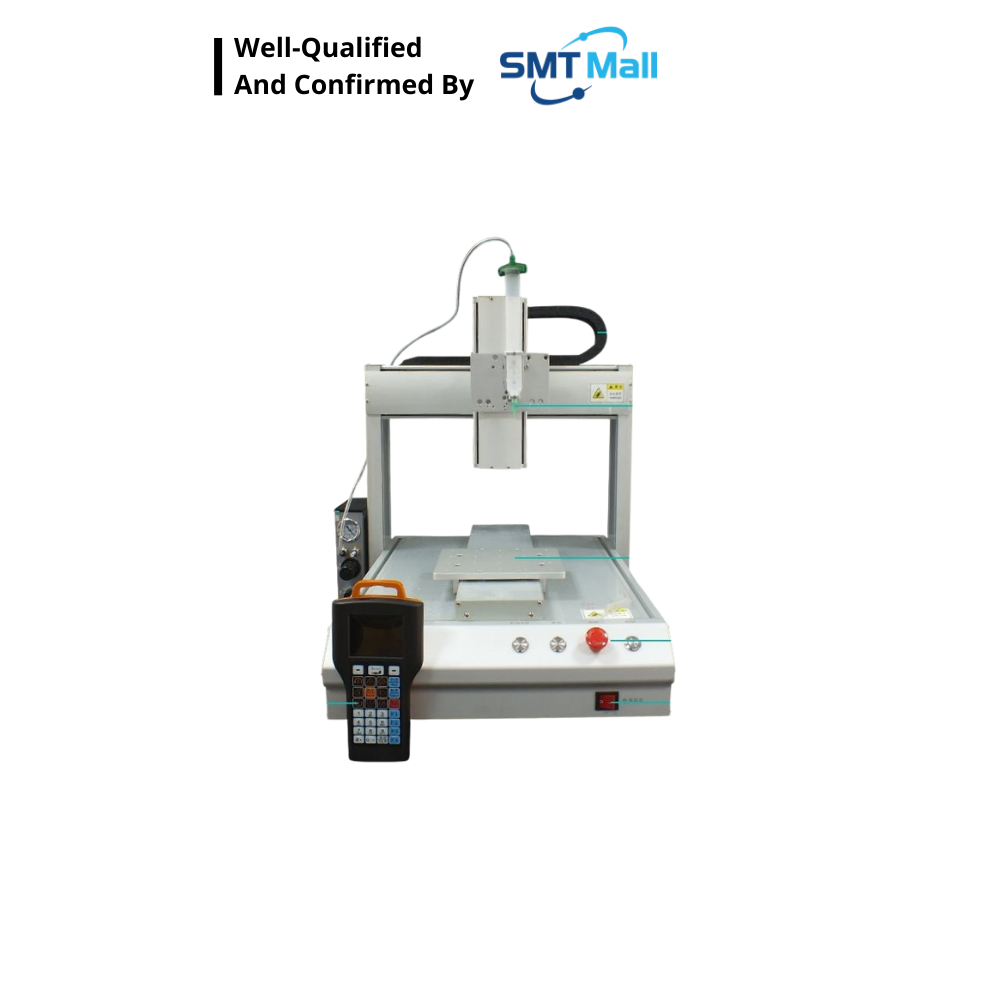

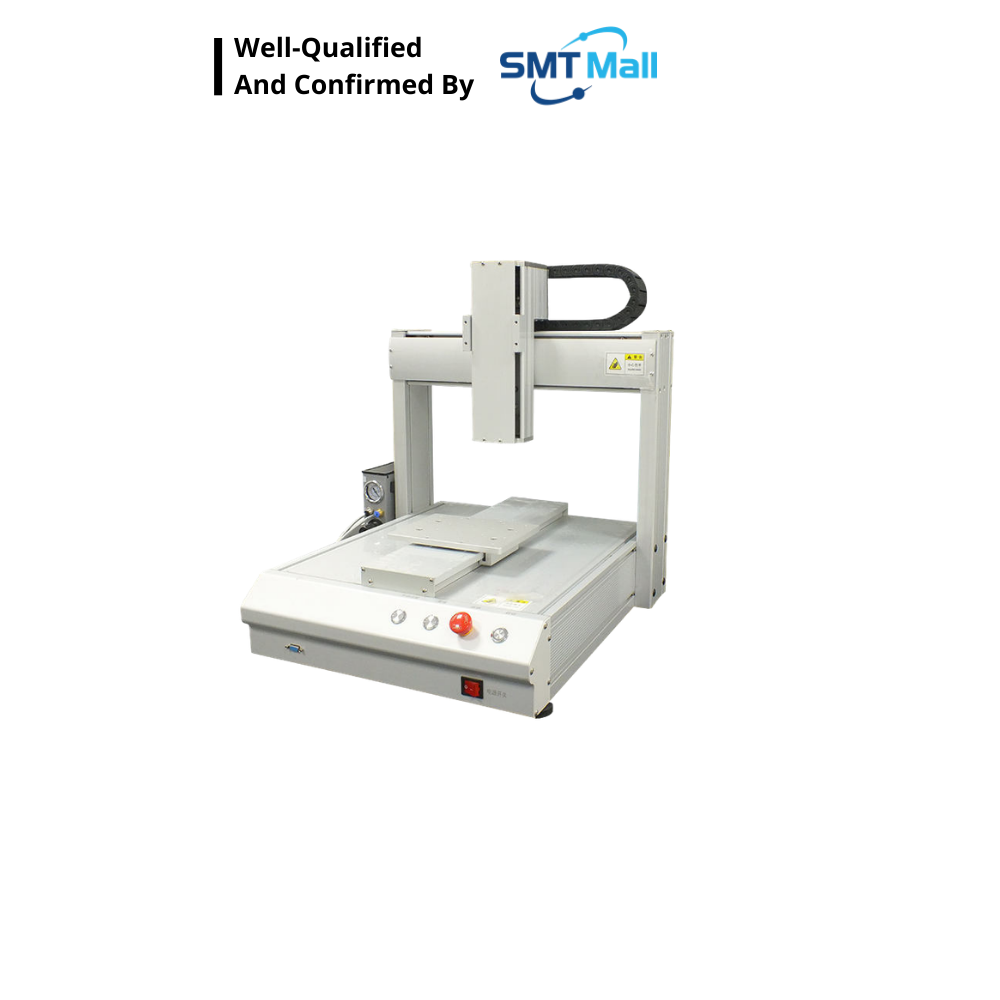

Desktop Precision Dispensing Machine
Desktop Precision Dispensing Machine
● Mobel: 1150D
● MOQ : 1 set
● Packing details:
● Subject to discussion:
Couldn't load pickup availability
Product overview
A desktop automated dispensing system can be defined as a system that provides computer-controlled dispensing. The ability to connect the machine to a computer simplifies programming, whether you’re dispensing dots, lines, circles, arcs, or compound paths.
Another benefit of computer-controlled dispensing is full system integration. The closed-loop motor, linear encoders, CCD fiducial recognition, and laser height sensing of the substrate allow the machine to automatically adjust programs to compensate for both surface height variations and product orientation differences.
With automated dispensing machines, you can dispense virtually any fluid using a syringe barrel, dispense valve, jetting valve, or other types of dispensing devices. This flexibility allows manufacturers to configure machines for a wide range of applications, from inline to batch dispensing operations.
Built with a rigid aluminum alloy frame and powered by stepper motor + precision guide rail system, it delivers stable operation, high repeat accuracy (±0.02 mm), and smooth trajectory control for dots, lines, arcs, and circles.
Equipped with CCD visual positioning, a touch-type LCD control panel, and teaching/graph import programming, this model allows operators to achieve fast setup and intuitive path programming.
Its universal 220 V input, pneumatic lift, and belt transmission make it highly adaptable for a wide range of industrial adhesive, coating, and encapsulation applications.
Technical specifications
| Parameter | Specification |
|---|---|
| Dispensing Range (X/Y/Z) | 500 × 500 × 150 mm (Z-axis total height 927 mm) |
| Programming Method | Teaching / Graph Import |
| Supported Trajectories | Dot, straight line, arc, circle, curve, closed circle, spiral, etc. |
| Dispensing Head | UV Glue Head |
| Glue Volume | 50 cc |
| Output Frequency | Up to 5 times/sec |
| Maximum Load Capacity | 10 kg |
| Moving Speed | 0–500 mm/sec |
| Repeat Accuracy | ±0.02 mm |

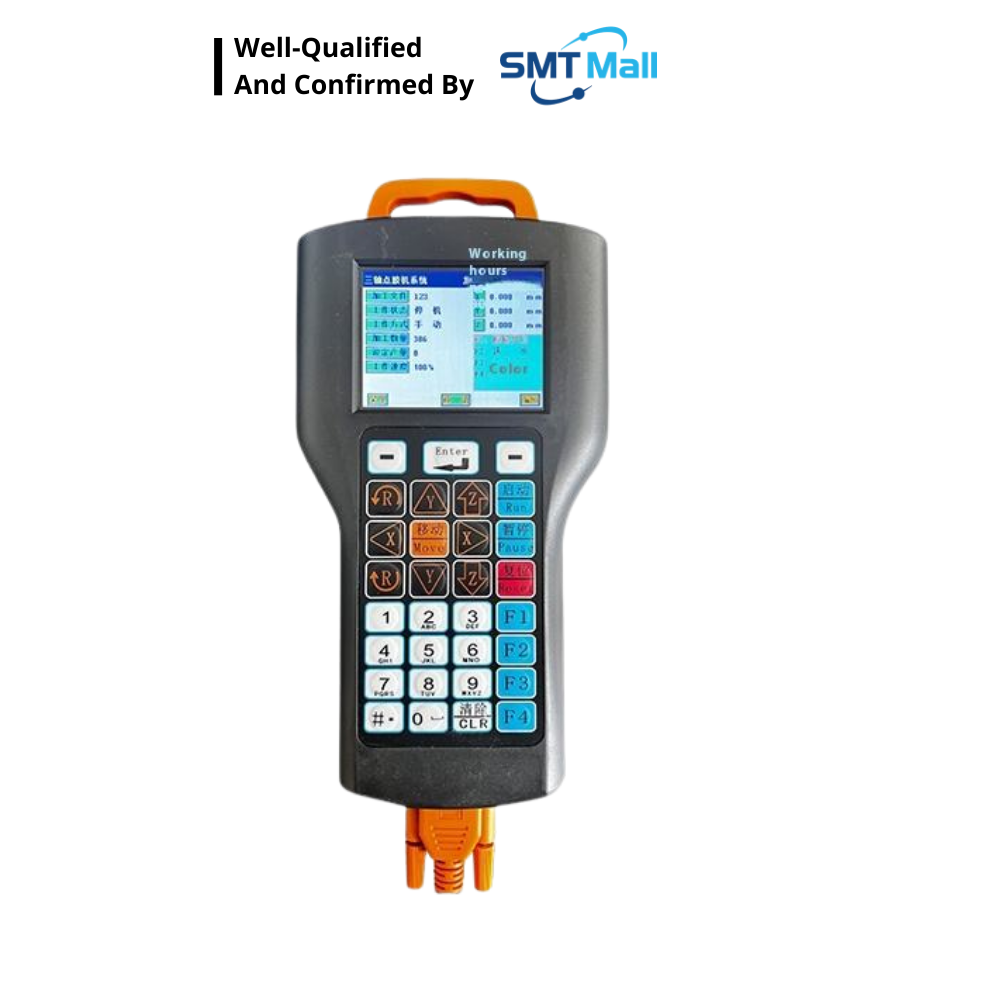

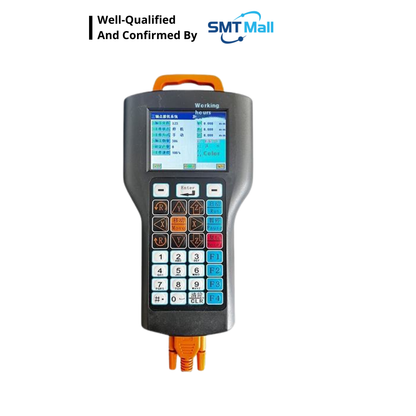

| Control Mode | Single-handle + Handheld Box |
| Program Storage | 100 sets |
| Display Mode | LCD Screen |

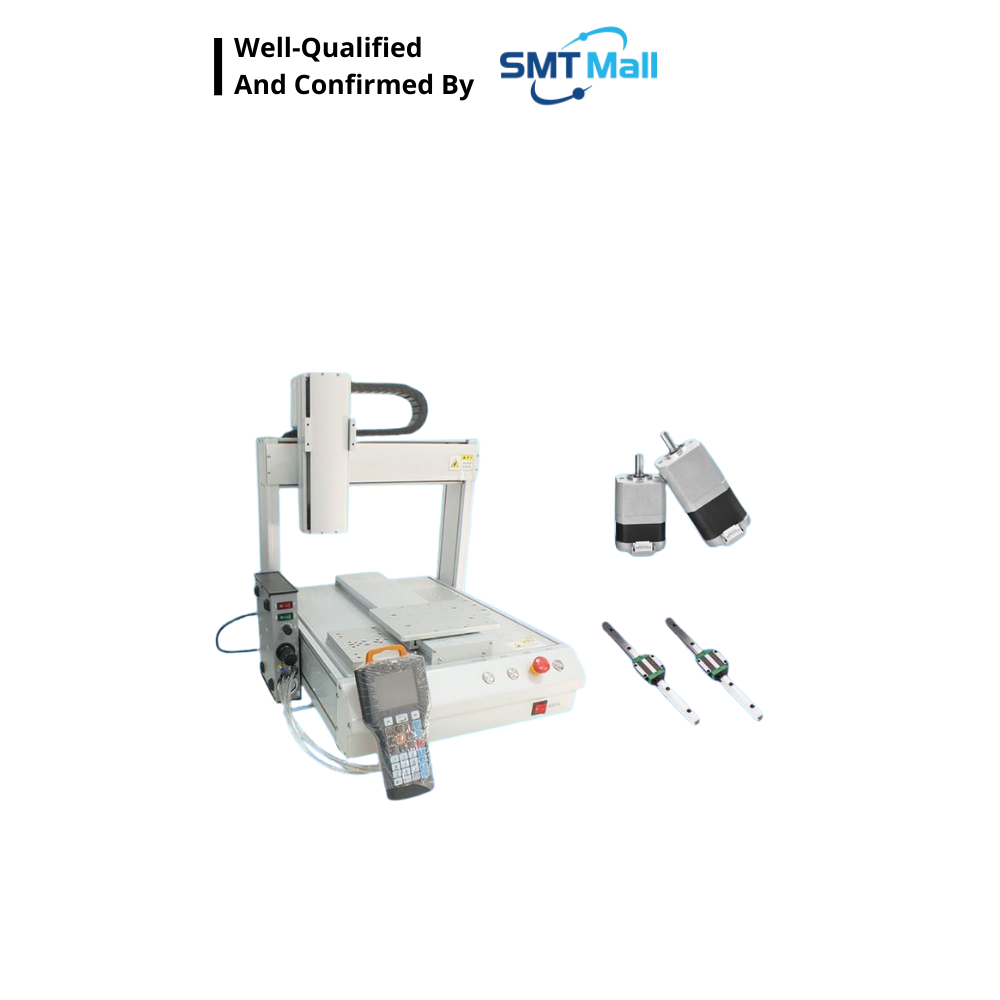

| Drive System | Stepper Motor + Precision Guide Rail |
| Lifting Mechanism | Pneumatic |
| Transmission | Belt |
| Input Power |
Universal AC 220 V |
Applications
The Desktop Dispensing Machine is widely used across electronics, automotive, LED, optical, and consumer electronics industries for automated glue dispensing, coating, bonding, and sealing tasks.
Typical Applications:
PCB and SMT component coating
LED lens and optical component bonding
Mobile phone, laptop, and tablet assembly
Precision dispensing for filters and sensors
Adhesive application on metal, plastic, and glass parts
Glue sealing, conformal coating, and protective encapsulation
