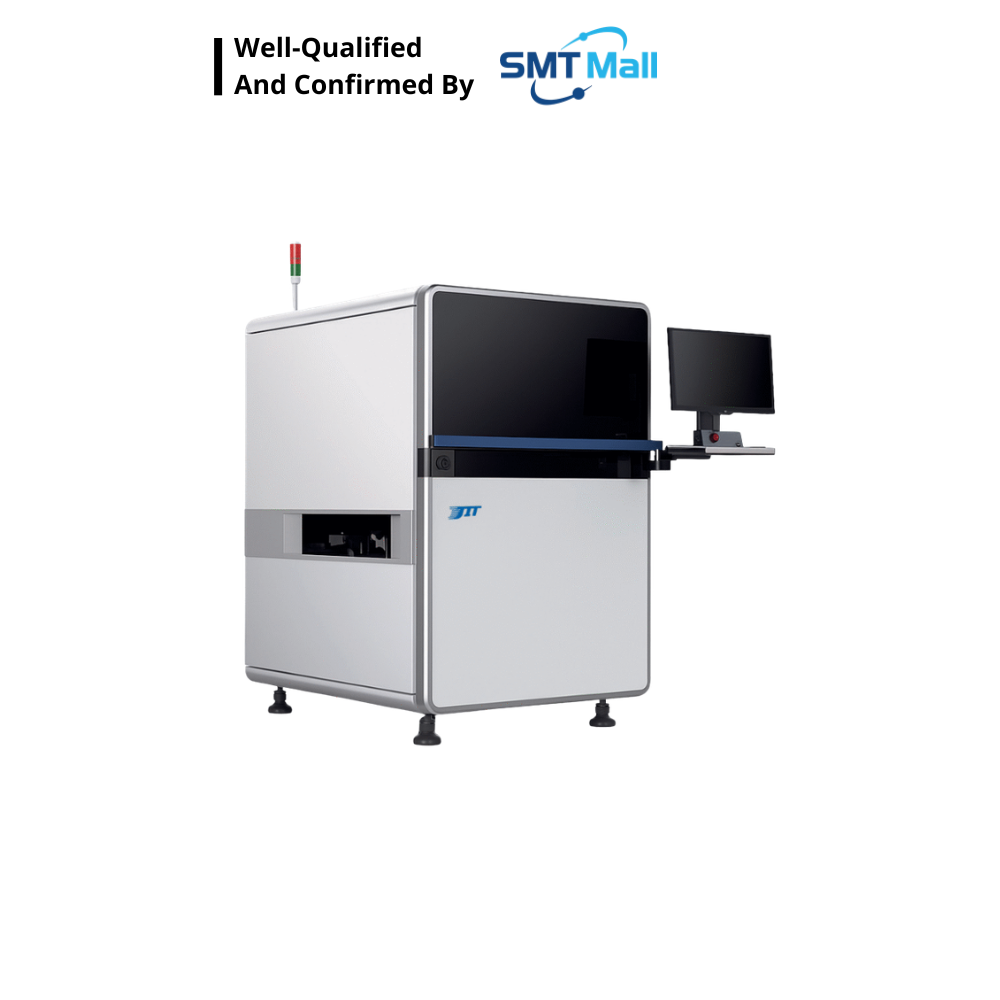

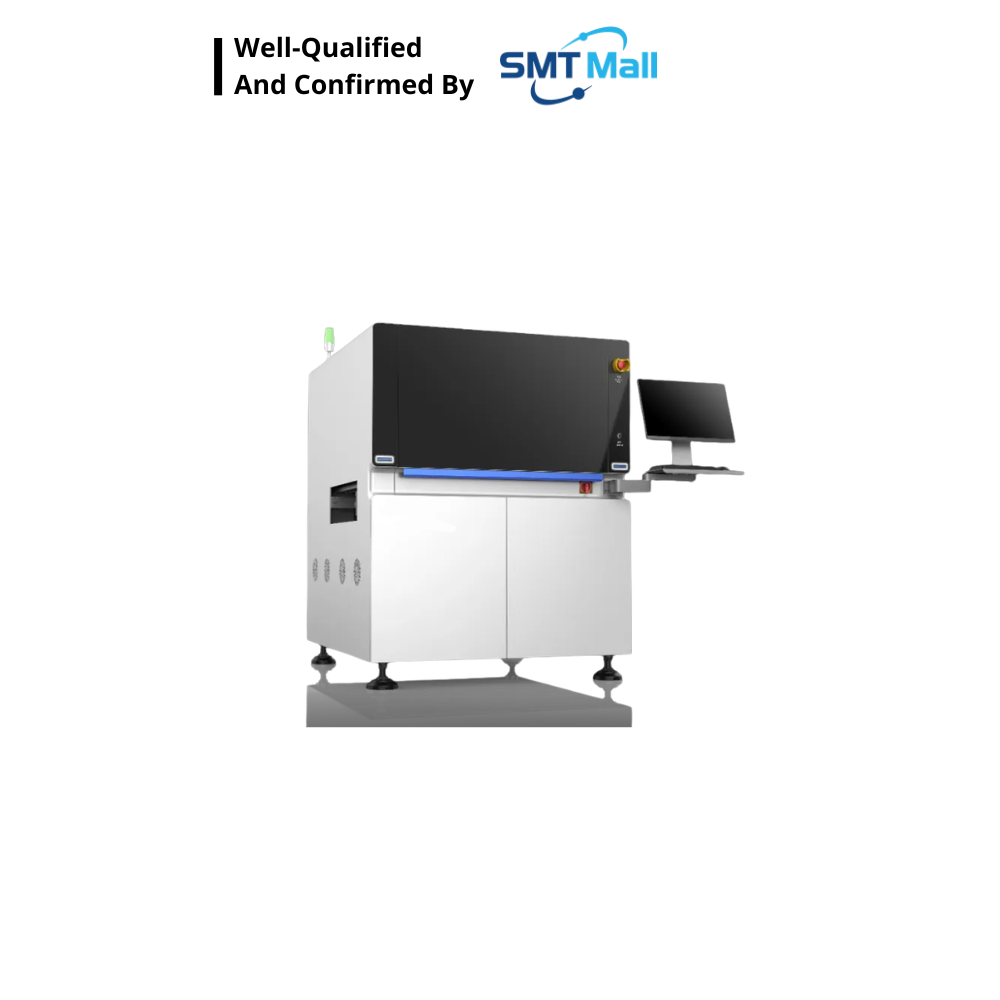

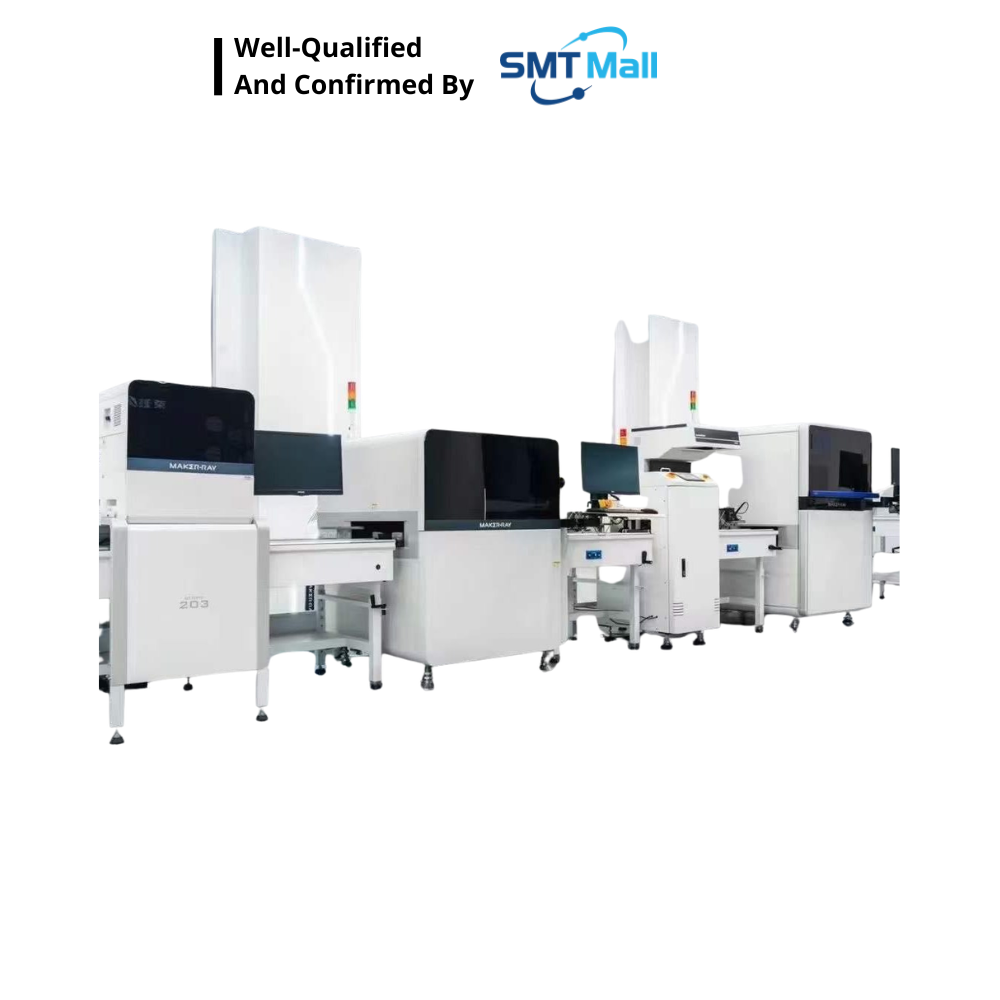

Conformal Coating Inspection Machine
Conformal Coating Inspection Machine
● Mobel: 1150D
● MOQ : 1 set
● Packing details:
● Subject to discussion:
Couldn't load pickup availability
- Product overview

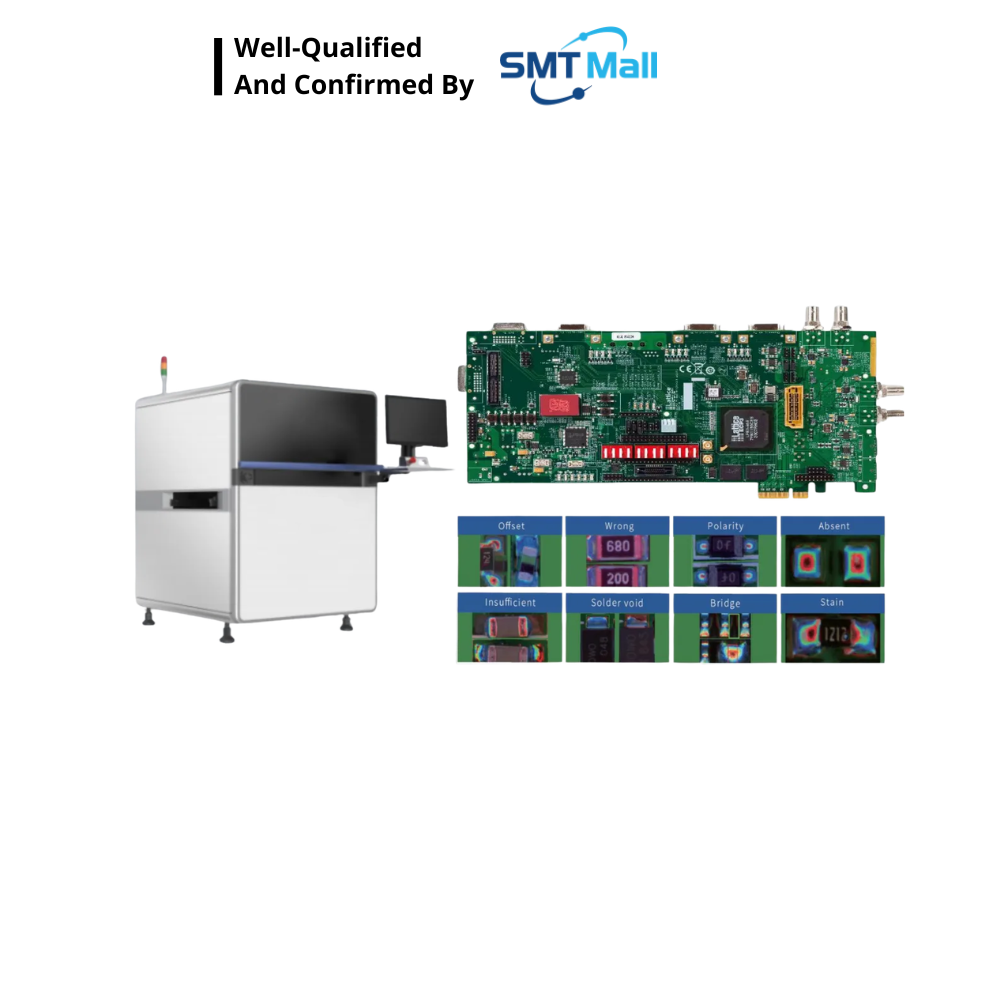

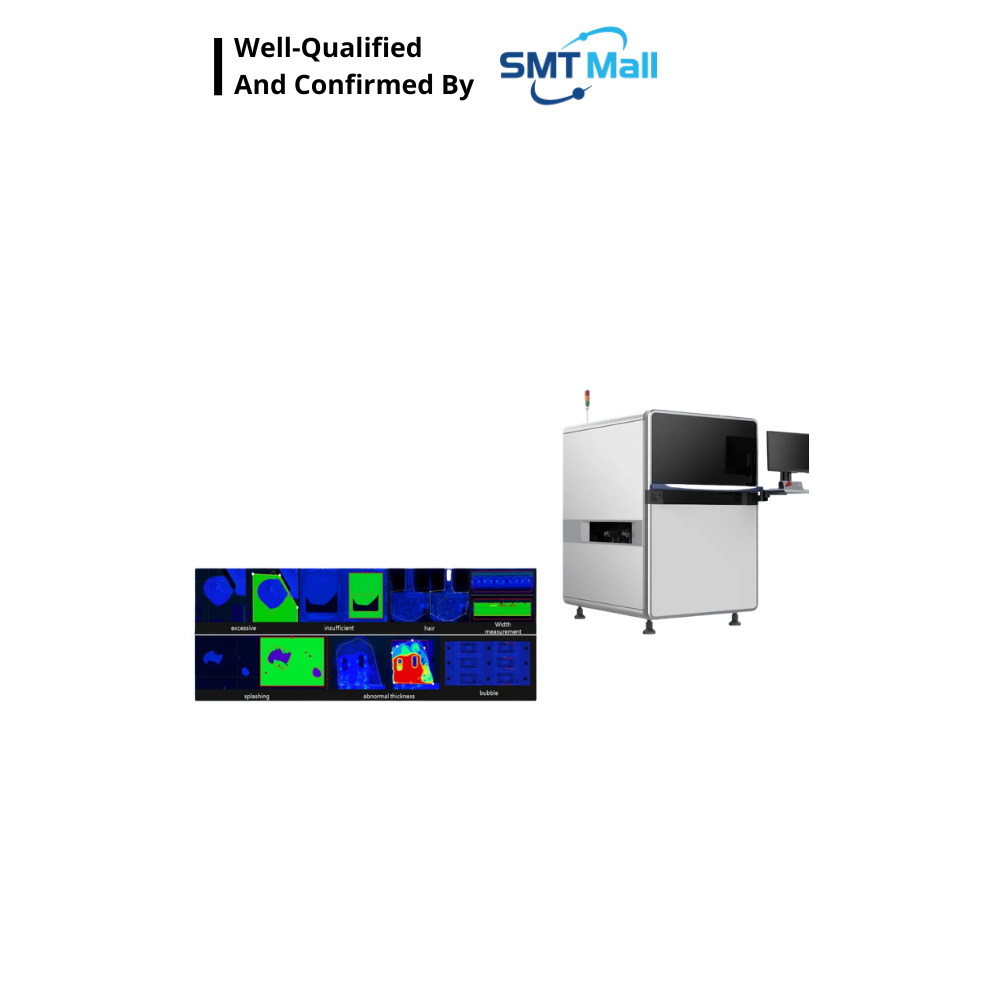

The Automated Conformal Coating Inspection and Measurement System delivers rapid, high-accuracy inspection of PCB coating defects and precise coating thickness measurement. Leveraging a 12M high-resolution camera and a multi-light system (UV, White, Red), this advanced platform streamlines the detection of coating issues such as no-coating, insufficient coating, bubbles, voids, smears, and delamination. With robust 3D measurement technology using Optical Coherence Tomography (OCT), manufacturers achieve significant improvements in process quality, yield, and reliability. This system is engineered for seamless integration with Smart Factory Industry 4.0, offering real-time process control and data-driven analysis.
2.Technical specifications
| Specification | Detail |
| VISION SYSTEM | |
| Camera | 12M High Resolution Camera |
| Pixel Resolution | 30 μm |
| Lighting | Multi Lighting System (UV, White, Red) |
| Inspection Speed | 150 cm²/sec |
| PCB RANGE | |
| PCB Size | 50 x 50 – 490 x 480 (mm) |
| PCB Thickness | 0.5–5T |
| Max PCB Warpage | ±1.0 mm |
| INSPECTION FUNCTIONS | |
| Defect Type | No Coating, Coating Insufficiency, Bubbles/Void, Smear, Coating Delamination |
| MEASUREMENT (3D ACI ONLY) | |
| Conformal Coating Thickness | 10 – 600 μm |
| SYSTEM DIMENSION | |
| Power Requirements | Single Phase(s) 200~240V 50~60Hz, 1.1 KW |
| Air Requirements | 5 Kgf/cm² (0.5 Mpa) |
| Dimension (WxDxH) | 1240 x 1495 x 1650 mm (Including Signal Tower: 1240 x 1495 x 2080 mm) |
| Weight | Approx. 760 Kg |
| OPTION | |
| Repair | O |
| SPC | O |
| Barcode | 1D and 2D |
