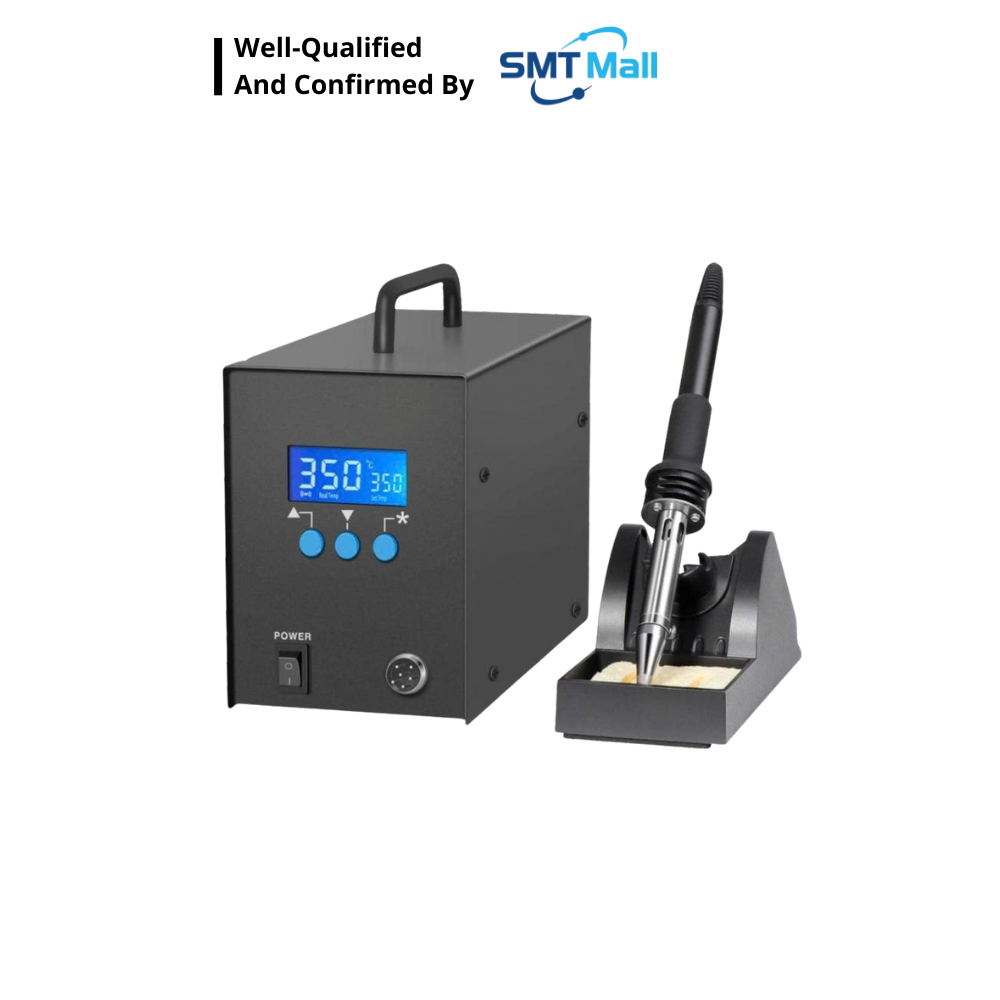

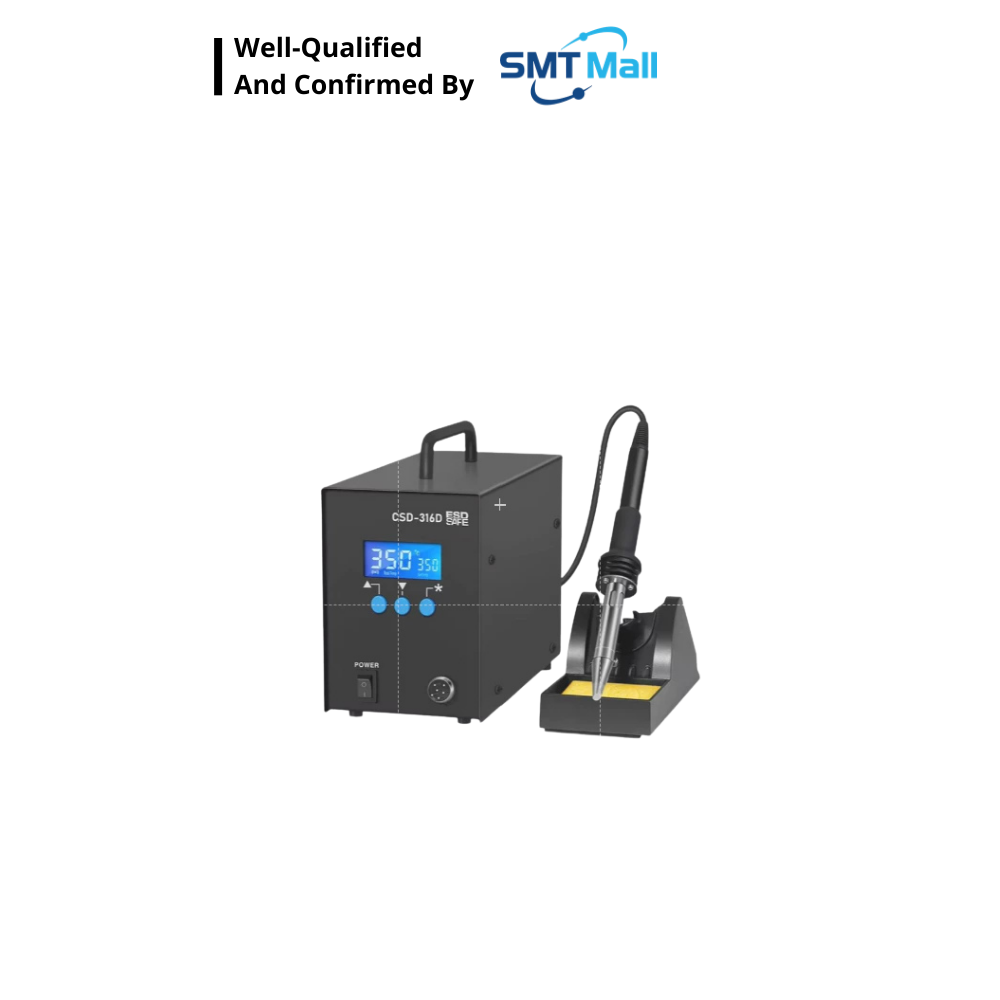

CHUERA 316D Soldering Station

CHUERA-316D is a high-power intelligent soldering station with output up to 320W, specifically designed for professional lead-free soldering applications.
The unit features a dual LCD display showing both actual temperature and set temperature, and integrates multiple safety and convenience functions, including:

High-frequency induction heating technology, enabling ultra-fast heat-up and rapid temperature recovery;

Push-button temperature adjustment with digital calibration, automatic sleep mode, and auto power-off when idle;

Password-protected temperature lock, ensuring process stability and production safety;

Plug-in heating core design, allowing easy maintenance and quick replacement;

Supports large soldering tips up to 10 mm, ideal for large solder joints and high-power soldering tasks.

⭐ PRODUCT DESCRIPTION CHUERA 316D
High-efficiency digital display lead-free soldering station with large LCD screen.

Utilizes high-frequency eddy-current heating, providing fast heating and rapid temperature recovery, fully suitable for lead-free soldering.

Microcomputer-controlled system with large LCD display, push-button temperature adjustment, digital temperature calibration, automatic sleep, and automatic shutdown functions.

Maximum instantaneous power up to 320W, with standard soldering tips supporting sizes up to 10 mm.

Password-based temperature lock function effectively protects and stabilizes production processes.

Anti-static (ESD-safe) design, with multiple soldering tips available for selection.

⭐ TECHNICAL SPECIFICATIONS
Operating voltage: AC 220V / 50Hz, AC 110V / 60Hz

Temperature range: 50 ~ 550 °C

Maximum instantaneous power: 320W

Temperature stability (no load): ±2 °C

Tip-to-ground resistance: < 2 Ω

Tip-to-ground voltage: < 2 mV

Temperature calibration method: Digital calibration

Weight: Approximately 4.5 kg
