Chemtronics CW2200 CircuitWorks Conductive Pen

Chemtronics CW2200 CircuitWorks Conductive Pen

● Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

1. Detailed Product Description

Chemtronics CW2200 CircuitWorks Conductive Pen is a high-performance conductive ink pen developed for industrial and professional electronics repair applications.

The product helps to:

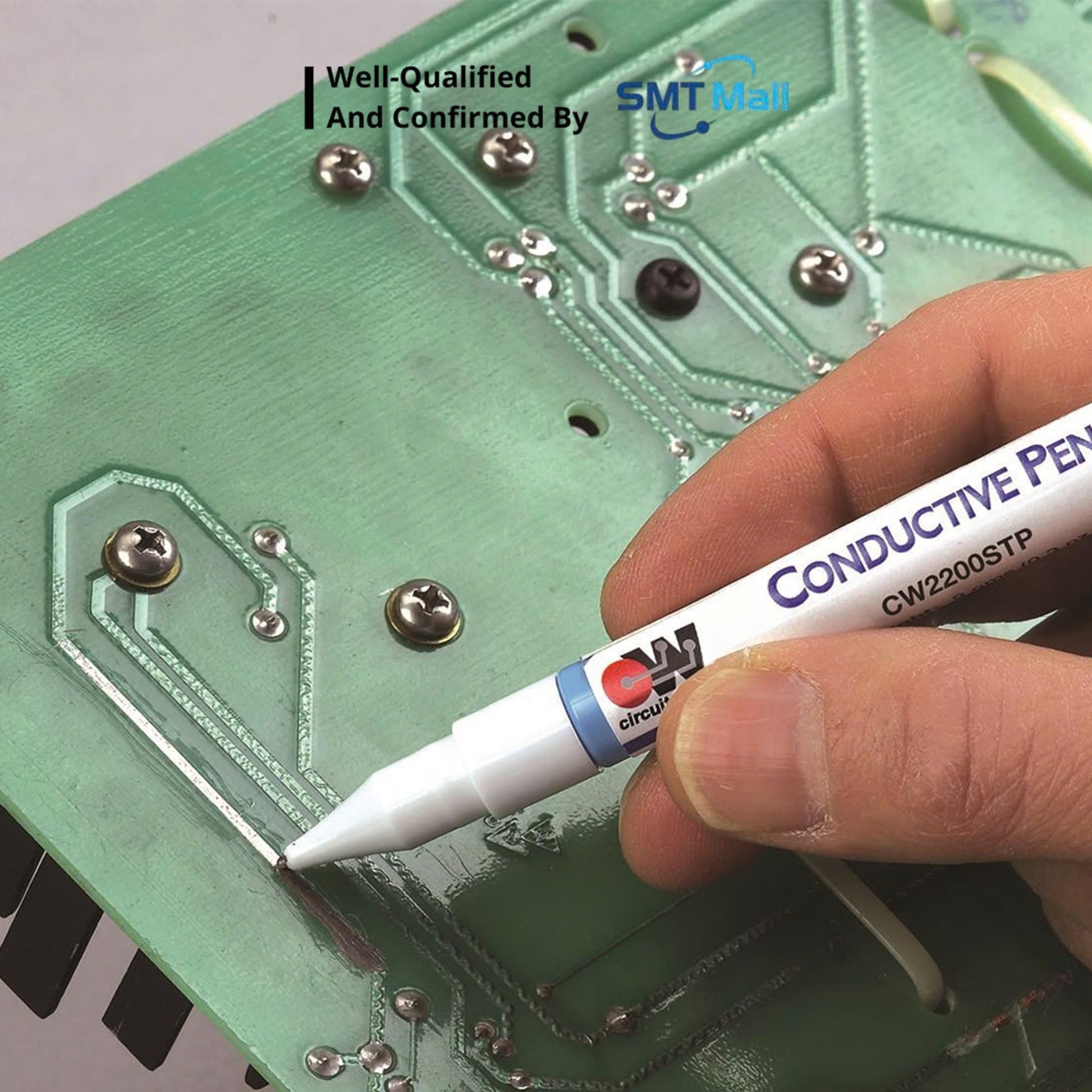

– Repair damaged PCB traces and circuits
– Create conductive silver pathways on electronic components
– Support rapid electronic prototyping and rework
– Improve maintenance and restoration efficiency

Suitable for use in:
– PCB assembly and repair centers
– SMT manufacturing facilities
– Electronics laboratories
– Industrial electronic maintenance operations

2. Technical Specifications

Attribute Name Value
Brand Chemtronics
Model CW2200
Product Name CircuitWorks Conductive Pen
Product Type Conductive Silver Pen
Physical State Paste
Color Silver / Gray
Odor Mild Hydrocarbon
Boiling Range 126 – 192°C
Explosion Limits 1.5 / 10.0
Solubility in Water Insoluble
Density 1.80
Application PCB Trace Repair & Conductive Circuit Creation

3. Chemical Composition Specifications

Chemical Name Concentration CAS Number
Silver 35.0 – 65.0% 7440-22-4
Propylene Glycol Methyl Ether Acetate 2.0 – 20.0% 108-65-6
Ethylene Glycol Monobutyl Ether Acetate 2.0 – 20.0% 112-07-2
Butyl Acetate 5.0 – 35.0% 123-86-4

4. Chemical Safety Information

Hazard Classification:
– Flammable Liquid
– May cause skin and eye irritation
– Vapor exposure may cause dizziness and drowsiness

Signal Word: Warning

Hazard Statements:
– Flammable product
– Repeated or prolonged skin contact may cause irritation
– High vapor concentrations may cause unconsciousness

Safety Precautions:
– Keep away from heat, sparks, and open flames
– Use only in well-ventilated areas
– Wear protective gloves and eye protection
– Avoid inhalation of vapors

5. Storage Conditions

– Store in a cool, dry, and well-ventilated area
– Keep away from direct sunlight, sparks, and flames
– Storage temperature should remain below 50°C
– Store containers tightly sealed when not in use
