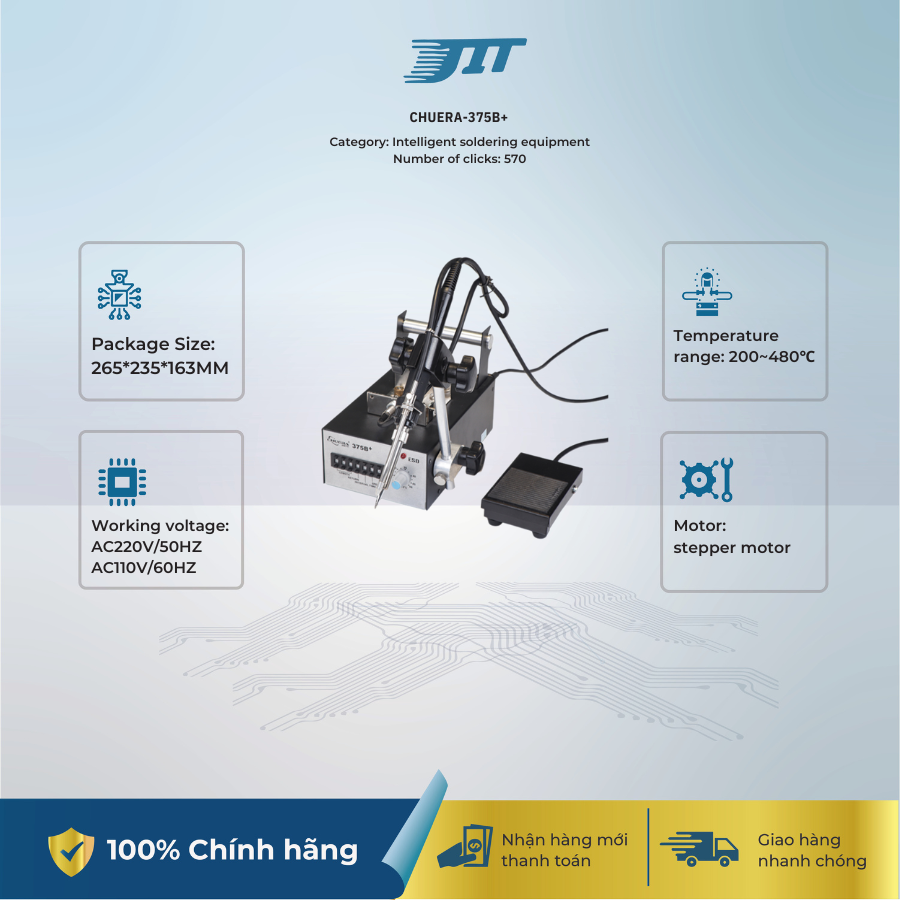

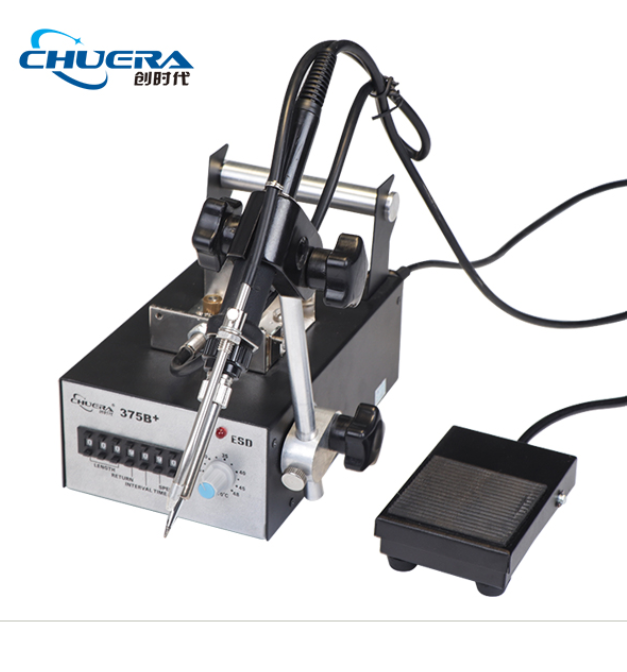

Automatic soldering station CHUERA-375B+
Automatic soldering station CHUERA-375B+
● Mobel: 1150D
● MOQ : 1 set
● Packing details:
● Subject to discussion:
Couldn't load pickup availability
Product features:
- Ceramic plug-in heating core, easy to replace and maintain.
- Automatic and manual tin feeding modes are available, and the number of tin discharges can be set.
- The tin discharge speed, tin discharge length, and tin discharge time are all adjustable.
- Adjustable tin return function is provided to reduce the waste of solder.
- Anti-static design can prevent sensitive electronic parts from being damaged by static electricity.
- It can be used as a lead-free soldering station alone, and can be equipped with a foot switch or a manual tin discharge switch to make welding flexible and convenient.
- The soldering iron heating element adopts a ceramic heating element, and the RTD sensor controls the temperature. The heating speed is extremely fast and the temperature is stable. The heating voltage is 24V, which is safe and reliable. It can be equipped with a variety of long-life soldering tips, which are easy to use.
Specification:
Working voltage: AC220V/50HZ AC110V/60HZ
Temperature range: 200~480℃
Maximum power of the whole machine: 60W
Heating element working voltage: 24V
Temperature stability (no load): ±2℃
Soldering iron resistance to ground: <2Ω
Soldering iron potential to ground: <2mV
Temperature adjustment: Knob type
Motor: stepper motor
Tin output speed: about 2.7mm/s2~7mm/s2 (36°/s 360°/s)
Tin output: 0~150mm
Tin out interval time: 0~2.7s. Return time: 0~0.9s (about 0~25mm fixed speed: 360°/s)
Tinning mode: automatic (1~9)/manual (0)
Tin wire diameter: 0.5, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6(mm)
Weight: Approx. 3.5kg
Package Size: 265*235*163MM
Available accessories:
Handle model: LT907BSD handle
Heating core model: 1321 plug-in heating core
Applicable soldering iron tip: 900 series soldering iron tip
Automatic tin discharge tube: CSD-373-1
Foot switch: CSD-373-3
Optional manual tin discharge, accessories: manual tin discharge guide tube CSD-373-2.
