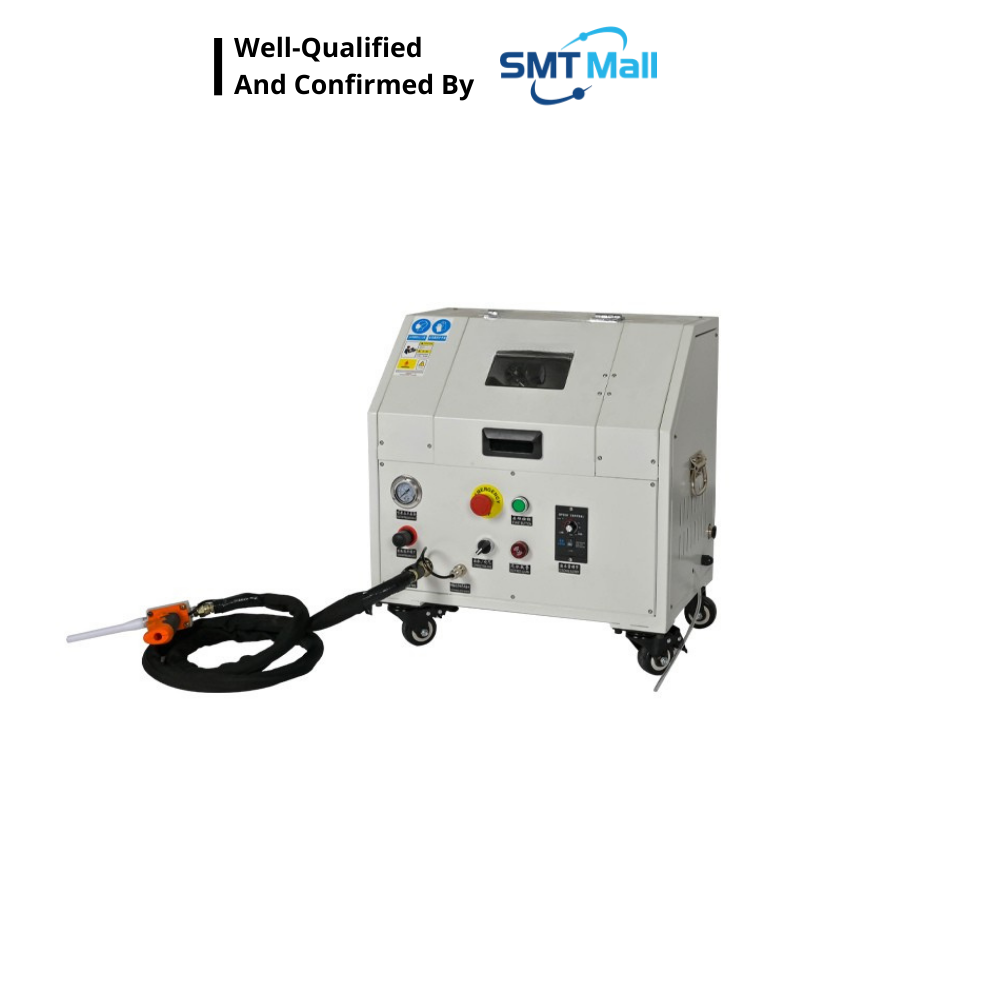

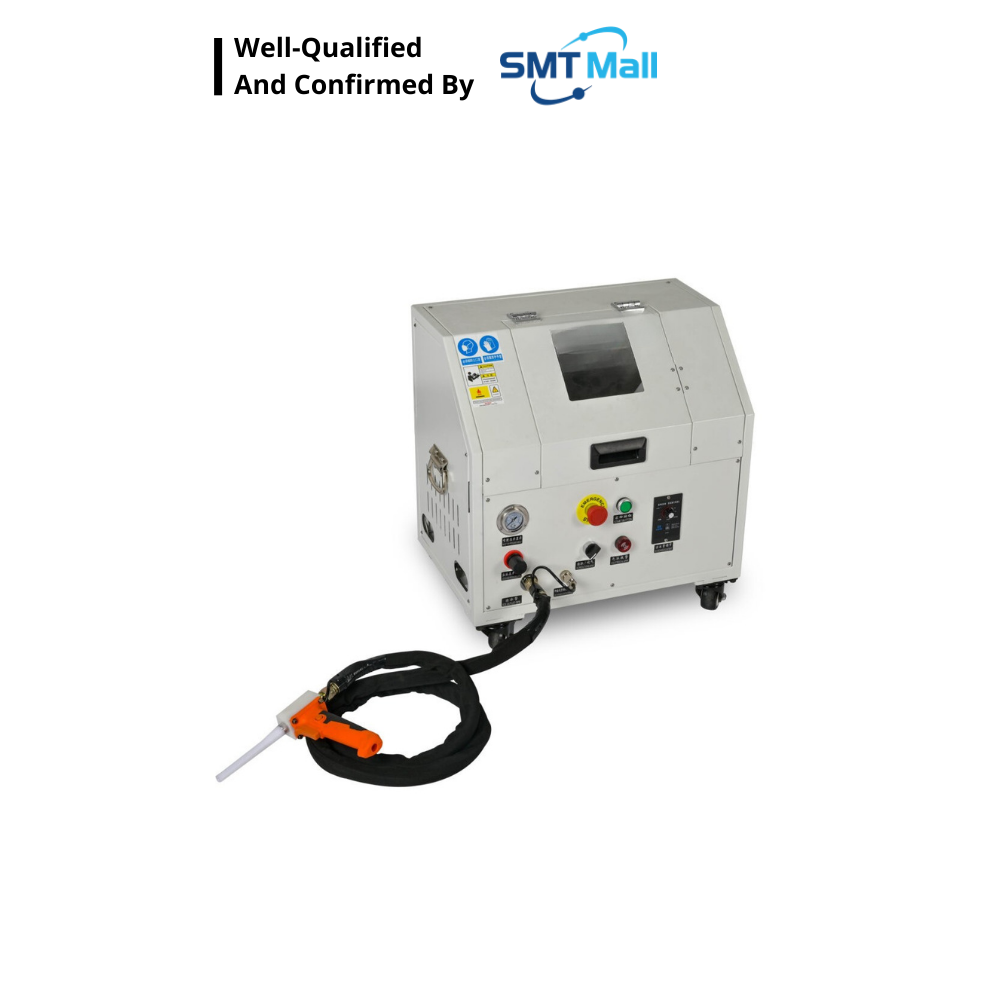

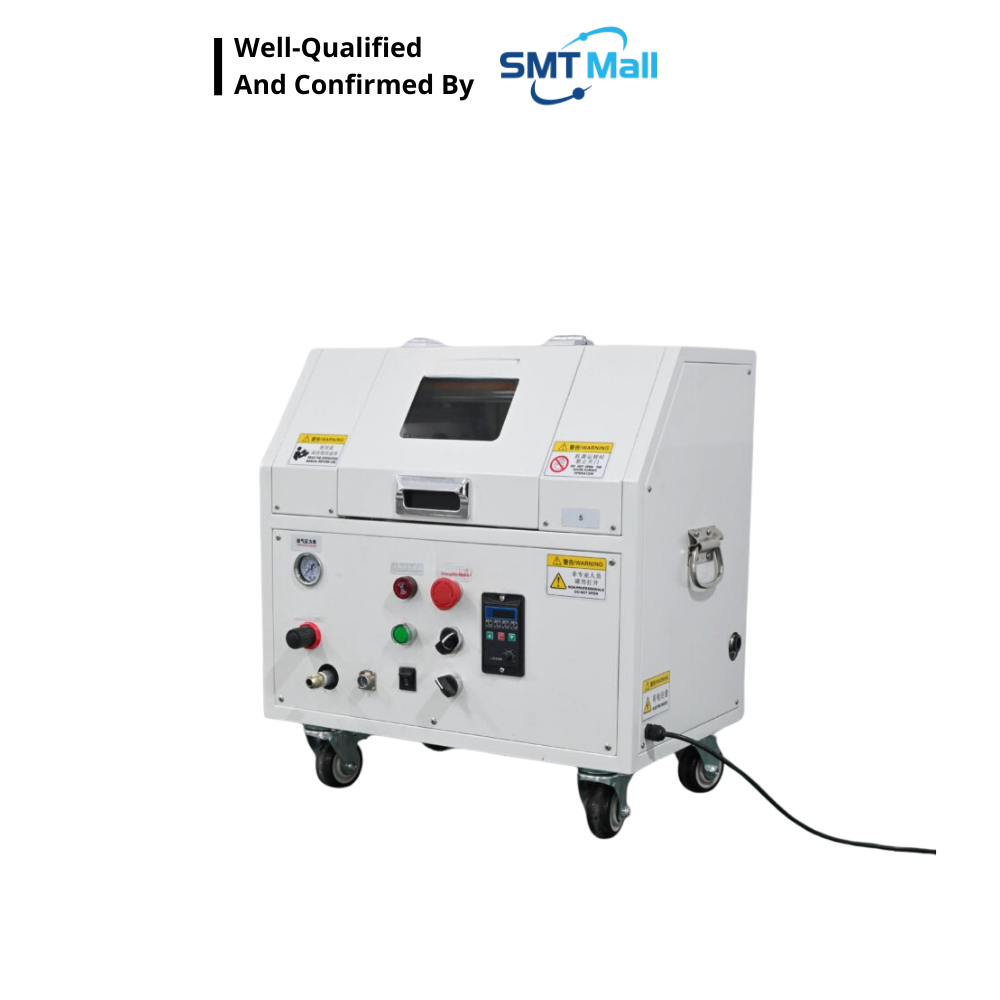

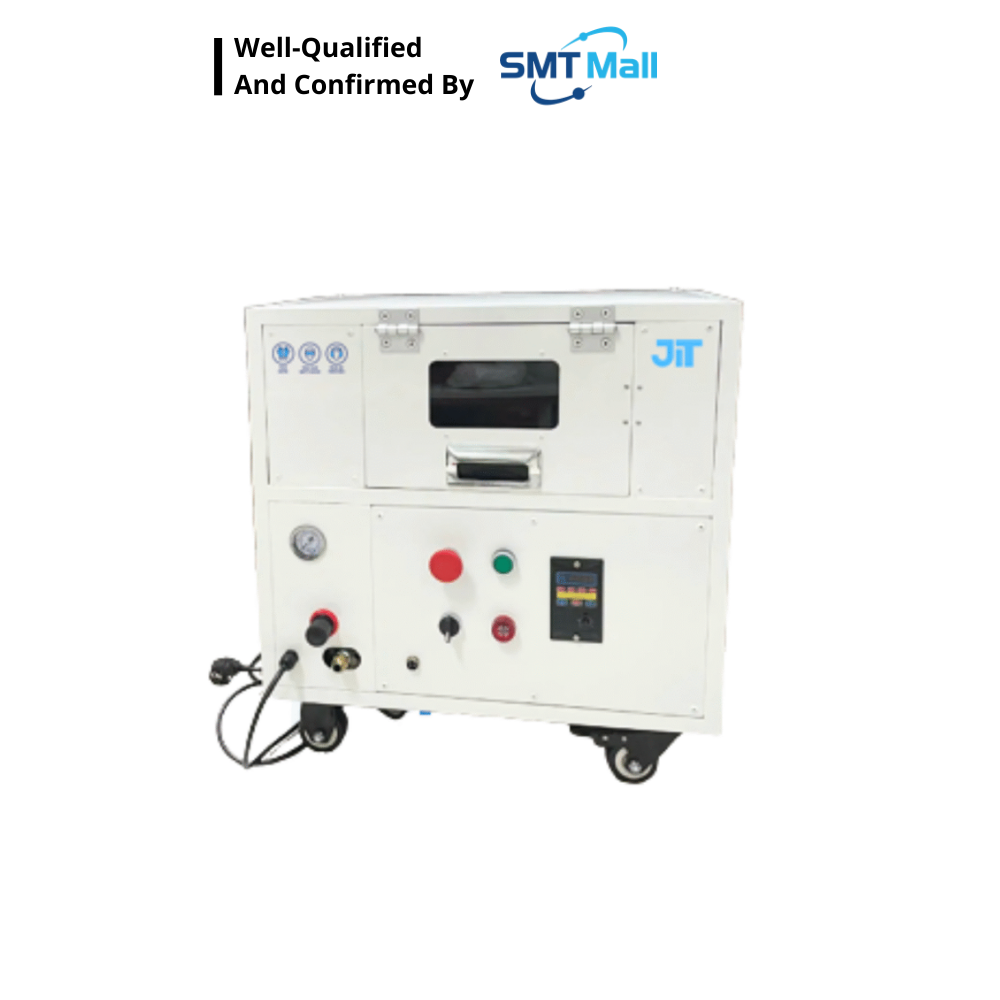

Automatic Dry Ice Surface Cleaning System JIT C1

Product overview

The JIT C1 Dry Ice Cleaning Machine is an efficient and eco-friendly surface treatment system designed for non-abrasive cleaning of precision components, molds, and production equipment.
It uses compressed CO₂ dry ice pellets to remove contaminants such as dust, oil, flux, or resin buildup — all without chemicals, water, or secondary waste.

      Technical specifications

Item    Specification
Model    JIT C1
Voltage    AC 220 V (50–60 Hz)
Power    300 W
Weight    50 kg
Dimension    565 × 365 × 510 mm
Dry Ice Capacity    5 kg
Dry Ice Flow / Working Air Pressure    0–1.0 kg/min / 0.2–0.6 MPa (adjustable)
Applications
Cleaning PCB assemblies, fixtures, soldering jigs, and production molds
Maintenance for SMT/EMS lines, semiconductor tools, and optical devices
Automotive and medical component surface preparation
Removing flux, grease, resin, dust, or micro-contaminants from sensitive equipment
