5-Axis Automatic Soldering Machine 5331R

5-Axis Automatic Soldering Machine 5331R

● Mobel:  1150D
● MOQ :  1 set
● Packing details:
● Subject to discussion:

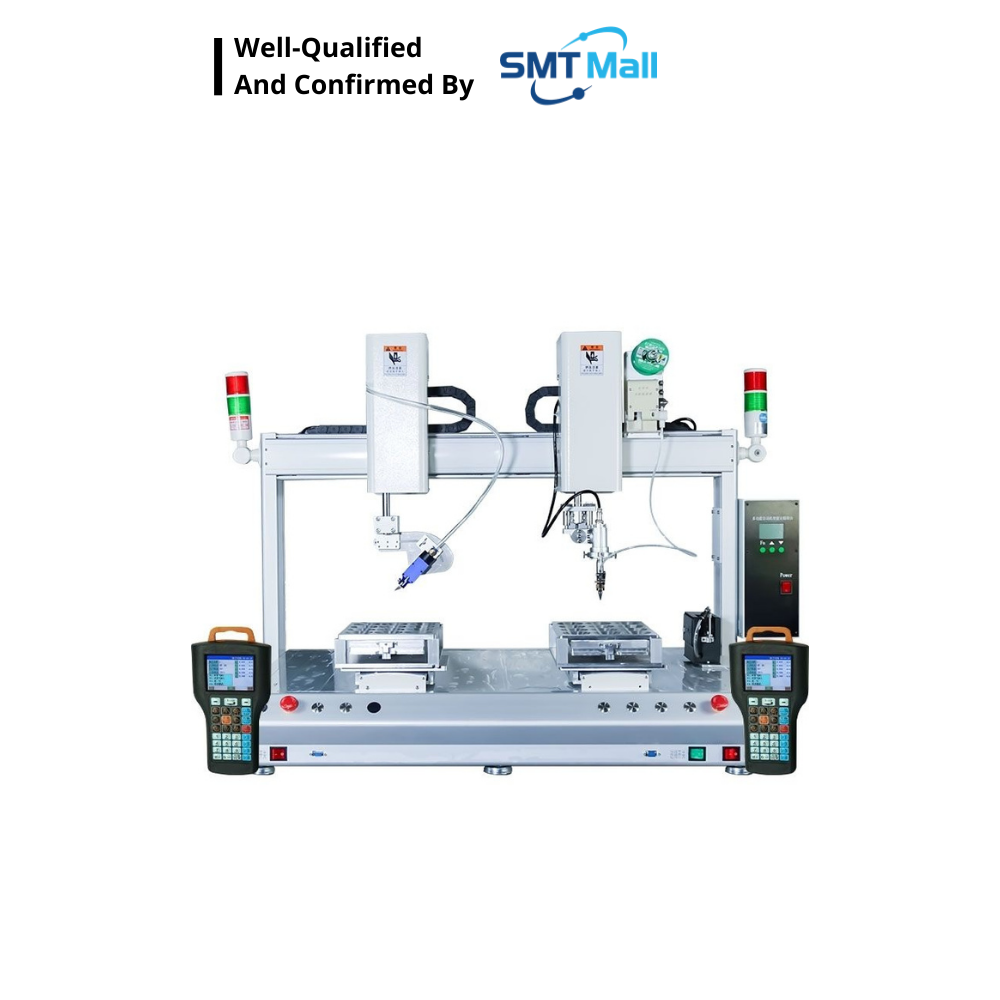

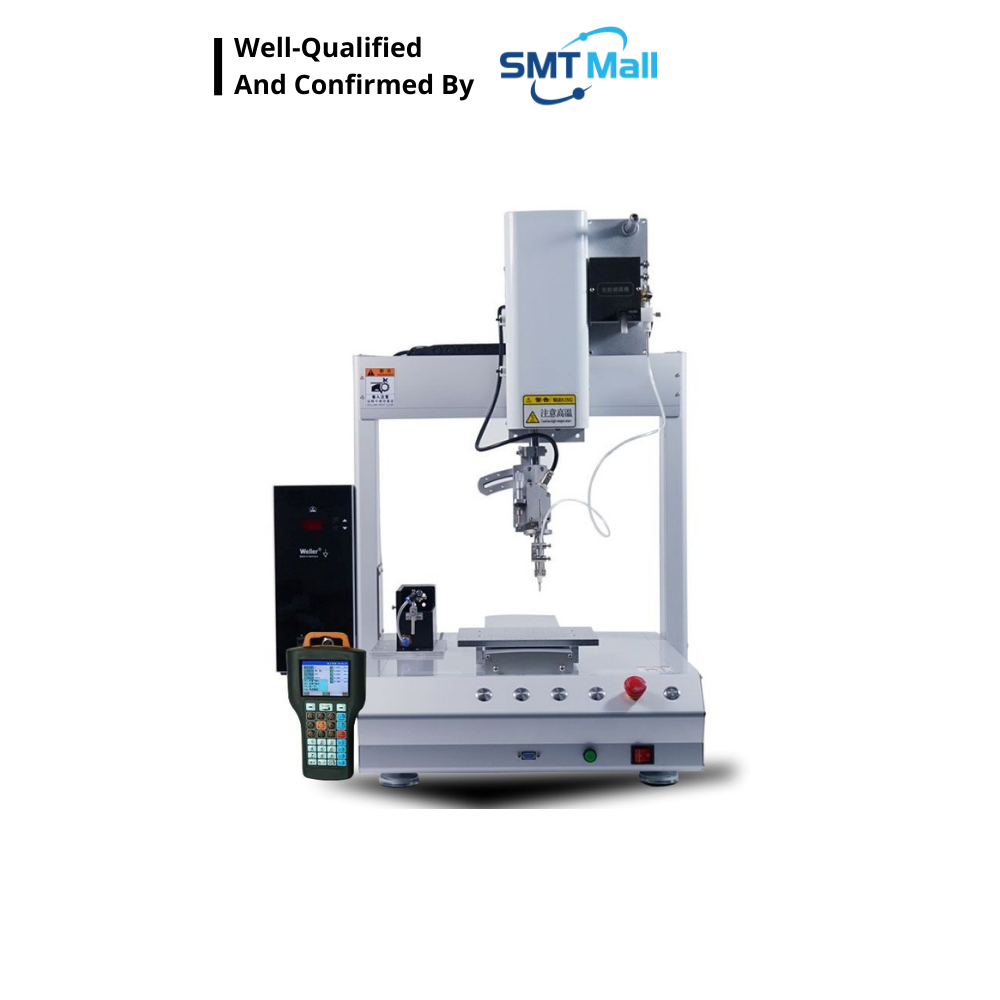

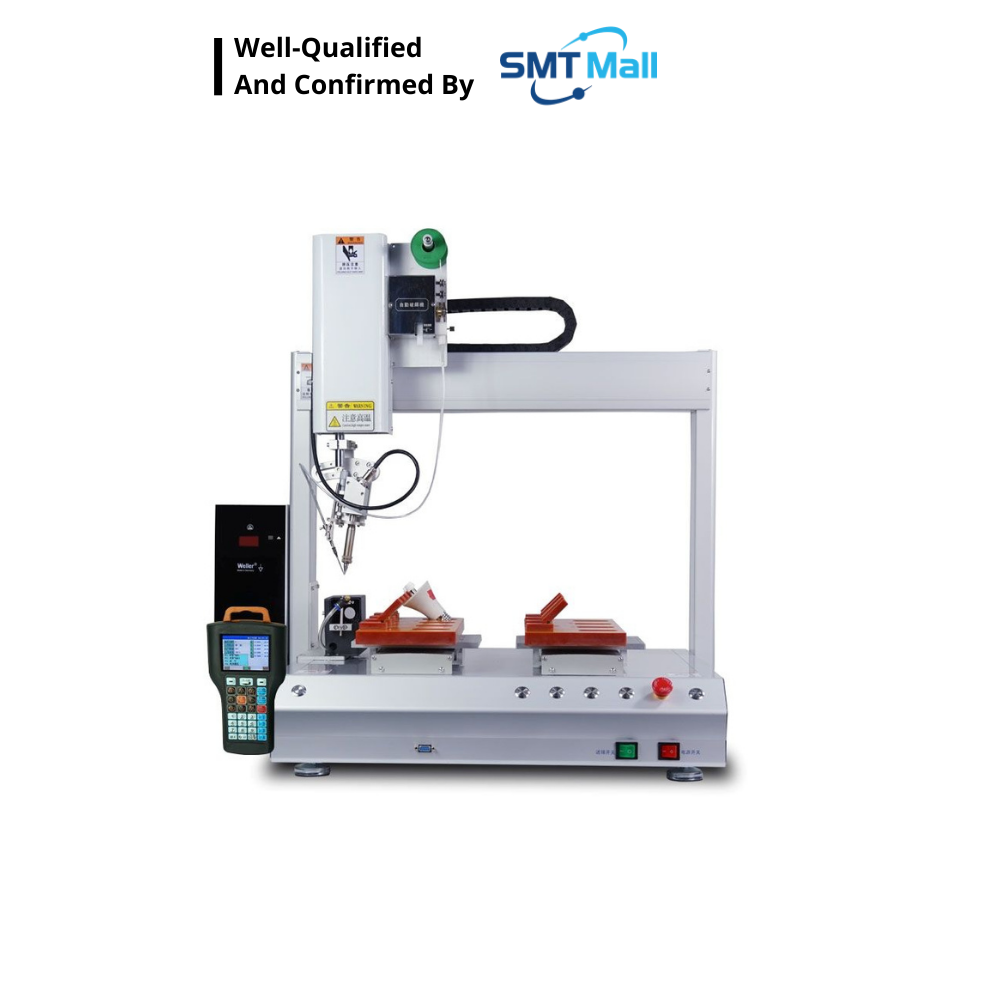

Product overview 5-Axis Automatic Soldering Machine 5331R

The 5-axis automatic soldering machine is an advanced solution for precision electronics manufacturing. Built on a 4-axis robot with a 360° rotating R-axis, it offers a wider soldering range and enables blind soldering that reflow or wave soldering cannot achieve. Ideal for mixed circuit boards, heat-sensitive parts, and SMT back-end processes, it’s widely used for PCB wire, charger plug, connector, DC terminal, and LED strip soldering. This high-precision 5-axis soldering robot ensures efficiency, reliability, and consistent soldering quality across complex applications.

Technical specifications

Item Specification
Model JIT-SD5331R
Heating Core WELLER
Temperature Range 0–500°C
Temperature Accuracy ±2°C
Travel Range (X/Y/Z/R) 500 × 300 × 300 × 100 mm / 360°
Maximum Load 15 kg
Movement Speed 0–500 mm/sec
Resolution 0.01 mm / axis
Repeatability 0.02 mm / axis
Program Storage 100 groups
Motor System Lishan Motor
Guide Rail HIWIN (Taiwan)
Belt ELATECH synchronous belt (Italy)
Photoelectric Sensor Omron (Japan)
Interpolation Function 3-axis
Input Power Supply Full voltage AC110V ~ 220V

Applications

  • Automotive Electronics: Soldering sensors, connectors, and ECUs with high accuracy, which is crucial for reliability in harsh conditions.
  • Consumer Electronics: Soldering small components like ICs and LEDs on printed circuit boards (PCBs) to maintain consistent quality.
  • Medical Devices: Precisely soldering delicate parts like sensors, where avoiding damage to sensitive components is critical.
  • Renewable Energy: Assembling solar panels by soldering busbars and junction boxes.
  • Cables and Connectors: Soldering various types of plugs, cables, and connectors, including video, audio, RF, and USB cables, as well as RJ/network transformers.
  • General PCB Assembly: Soldering a wide range of plug-in electronic components such as resistors and capacitors, and other small circuit board assemblies.
